Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | ADSS-48B1 |
|
Detail Information |
|||
| Fiber Type: | YOFC Or Fiberhome As Request | Fiber Count: | 4 -144 Core |
|---|---|---|---|
| Color: | Black,Customized | Length: | 2km Or Customized Length |
| Jacket Material: | PE Or AT | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP Central Strength Member | Operating Temperature: | -40 ~ +60 C |
| Span: | 100m 200m 300m 400m 500m Spam | Installation: | Self- Supporting Aerial |
| High Light: | 48 core ADSS Fiber Optic Cable,500m Span ADSS Fiber Optic Cable,48 core ADSS ofc cable |
||
Product Description
24 core ADSS Fiber Optic Cable 100m 200m 300m 400m 500m Span
ADSS Specification
|
Cable structure |
name | ADSS-48B1-PE-100 |
|
FRP Center strengthen member |
2.0mm | |
|
fiber filling compound |
2.2±0.1mm | |
|
PE Outside thickness |
1.8±0.2mm | |
|
Cable diameter |
10.0±0.3mm | |
| cable weight | 85±10%kg/km | |
| Loose tube nurmber | 4Fo | |
|
fiber count of tube |
12fibers | |
|
Loose tube color |
Blue,Orange,Green,Brown,
|
|
|
Optical fiber color |
Blue,Orange,Green,Brown,Gray,Natural,Red,Black,Yellow,Purple,Pink,Aqua. |
Product Description

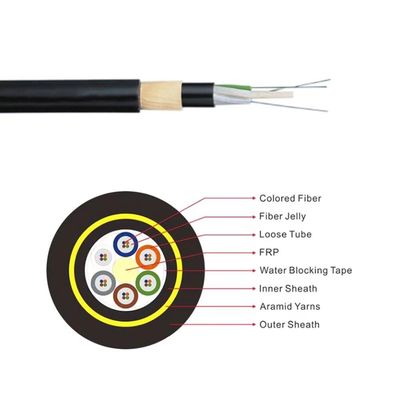

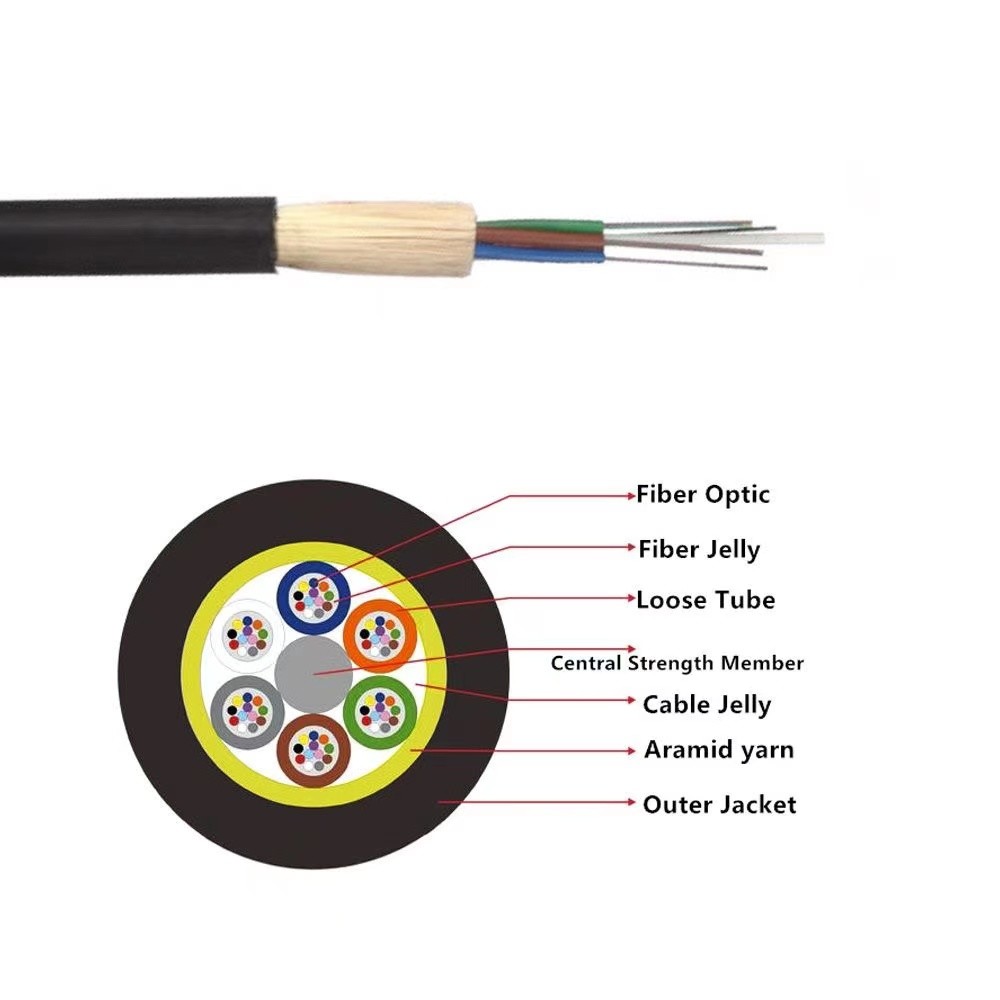

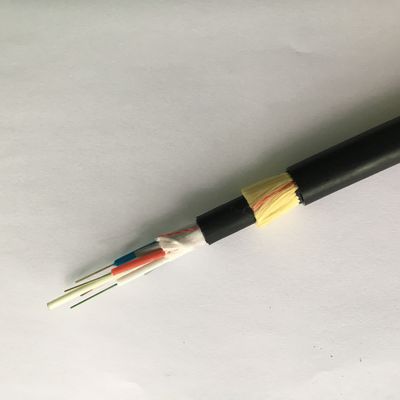

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
Crush resistance and flexibility,The following measures are taken to ensure the cable watertight
100% cable core filling,Loose tube filling compound
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
4-144 core ADSS Fiber Optic Cable
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter /pad diameter(mm) |
Nominal Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 84 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 93 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 95 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7 | 12.5±0.5 | 122 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.5/6.4 | 1.7 | 15.5±0.5 | 185 |
Package Detail
