Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable
Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable
Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable
Contact Now

Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 4500km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12 24 48 core

Detail Information
Fiber Type: G652D/G657a1 Application: Aerial
Number Of Conductors: 48 96 144 Core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 80m 100m 120m
High Light:

100m ADSS Fiber Cable

,

Dielectric ADSS Fiber Cable

,

G652D ADSS cable

Product Description

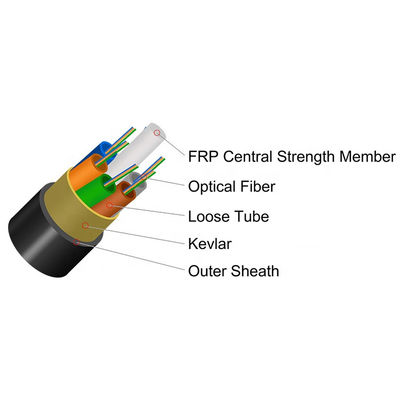

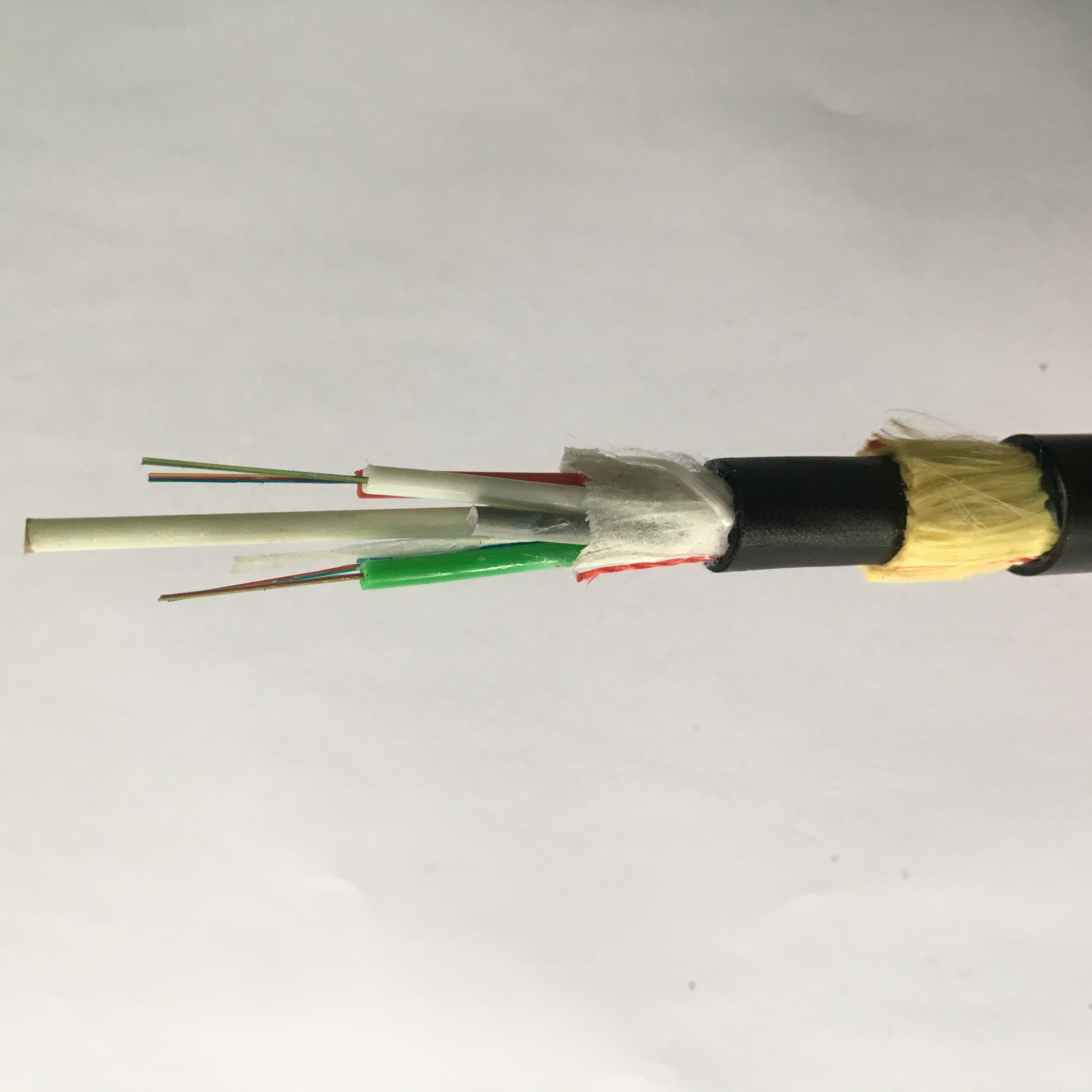

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath


Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable 0


Features:

1. Loose tube design

Stable performance and compatibility with all common fiber types

2. Self-supporting

Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

3.Track-resistant &jacket available

For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.

4.Sutable for Aerial self-support installation



Optical Characteristics:



Fiber Type
G.652
G.655
50/125^m
62.5/125^m


Attenuation
(+20X)
850 nm


<3.0 dB/km
<3.3 dB/km
1300 nm


<1.0 dB/km
<1.0 dB/km
1310 nm
<0.36 dB/km
<0.40 dB/km


1550 nm
<0.22 dB/km
<0.23 dB/km



Bandwidth
850 nm


>500 MHz-km
>200 Mhz-km
1300 nm


>500 MHz-km
>500 Mhz-km
Numerical Aperture


0.200±0.015 NA
0.275±0.015 NA
Cable Cut-off Wavelength λcc
<1260 nm
<1450 nm









Packing:



1.Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

2.Sealed by strong wooden battens.

3.At least 1 meter inside end of cable will  be reserved for testing.



Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable 1

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc



Thank you very much for viewing this page, and wish you a nice day!
Please click the button below to view our homepage.

Single Mode All Dielectric Self Supporting Span 100m 24 Core ADSS Fiber Cable 2

Tag:

24 Core Adss Aerial Fiber Optic Cable

200m Span Adss Aerial Fiber Optic Cable

G657A1 adss optical cable
