FRP All Dielectric ADSS Cable 100M With PE Jacket , ADSS OFC Cable

Contact Now

FRP All Dielectric ADSS Cable 100M With PE Jacket , ADSS OFC Cable

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou	Brand Name:	JQ/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	ADSS-48B1

Detail Information
Fiber Type:	YOFC Or Fiberhome As Request	Fiber Count:	4 -144 Core
Color:	Black,Customized	Length:	Customized Length
Jacket Material:	PE Or AT	Name:	ADSS Optical Fiber Cable
Strength Member:	FRP Central Strength Member	Operating Temperature:	-40 ~ +60 C
Span:	50/100/200/300/400m	Installation:	Self- Supporting Aerial
High Light:	144 Core All Dielectric ADSS Cable , FRP All Dielectric ADSS Cable , frp strength adss OFC cable

Product Description

All Dielectric ADSS Fiber Cable Span 100M With PE Jacket Self-Supporting Aerial Cable

Product Description

ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower. Loose tube construction, tubes jelly filled, elements (tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member,polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the cable core, thenaramid yarn reinforced and PE outer sheat.

Characteristics
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance
Small diameter, lightweight and low friction sheath design
Excellent blowing length and fast, safe and cost effective installation
Drycore design for excellent water blocking performance and easier handling
SZ stranding design allows for easy mid-span access and isolates fibers from installation and environmental rigors
Easy installation and removal when necessary

Samples

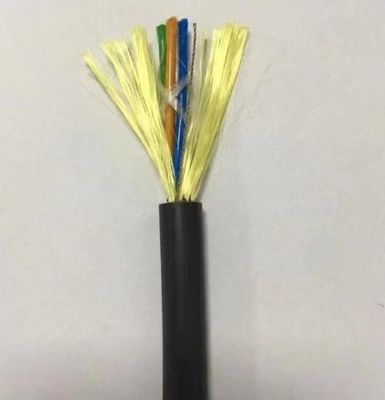

FRP All Dielectric ADSS Cable 100M With PE Jacket , ADSS OFC Cable 0

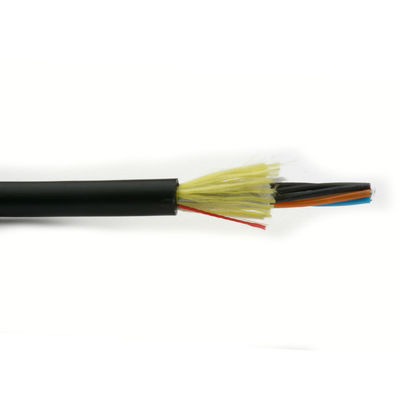

FRP All Dielectric ADSS Cable 100M With PE Jacket , ADSS OFC Cable 1

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Data

Span : 100m

under 110kv

48core

structural

parameter

Central strength components : FRP

Diameter : 1.5mm

Loose tube (jelly filled )

Outer diameter :1.8mm

Inner sheath PE

Thickness : 0.9mm

outer sheath PE

Thickness :1.8mm

Technical

parameter

outer diameter of Cable

10.0mm

cable cross-sectional area

95.03 mm2

Fiber model

G.652D

Weight of cable

85kg/km

Rated tensile strength (RTS)

10 kn

Minmum allowed tension(MAT)

4kn

EDS

3.2kn

Young's modulus

7.8 kn/mm2

Coefficient of thermal expansion

1.810-6/°C

Cruss resistance

Long term :1100 n/100mm

short term:2200 n/100mm

Permission bent radius

Long term (when running) 220 mm

Short term (when laying) 360 mm

4-144 core ADSS Fiber Optic Cable

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter /pad diameter(mm)	Nominal Thickness of outer jacket(mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
6	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	81
8	1+6	4	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
12	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	82
24	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	83
36	1+6	6	2.0±0.1	2.3/2.3	1.7	10.5±0.5	84
48	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	93
72	1+6	12	2.2±0.1	2.6/2.6	1.7	11.1±0.5	95
96	1+8	12	2.2±0.1	3.0/3.9	1.7	12.5±0.5	122
144	1+12	12	2.2±0.1	3.5/6.4	1.7	15.5±0.5	185

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

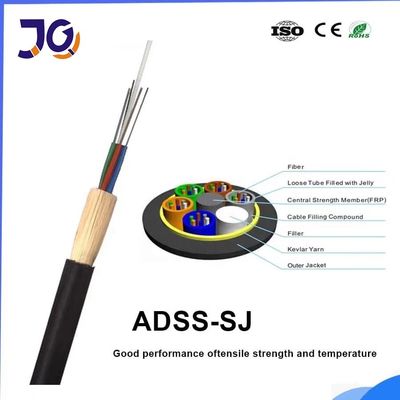

FRP All Dielectric ADSS Cable 100M With PE Jacket , ADSS OFC Cable 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
