100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on the quantity Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Application: Outdoor Aerial Jacket Material: PE
Jacket Color: Black Length: 1km 2km 3km 4km
Warranty: 25 Years OEM: Yes
High Light:

24 Core self supporting aerial cable

,

100m frp fiber optic cable

,

FRP 100m Span aerial ADSS cable

Product Description

Overhead Span 100m ADSS Double Jacket  Armoring 24 Core  Fiber Optical Cable

100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath 0

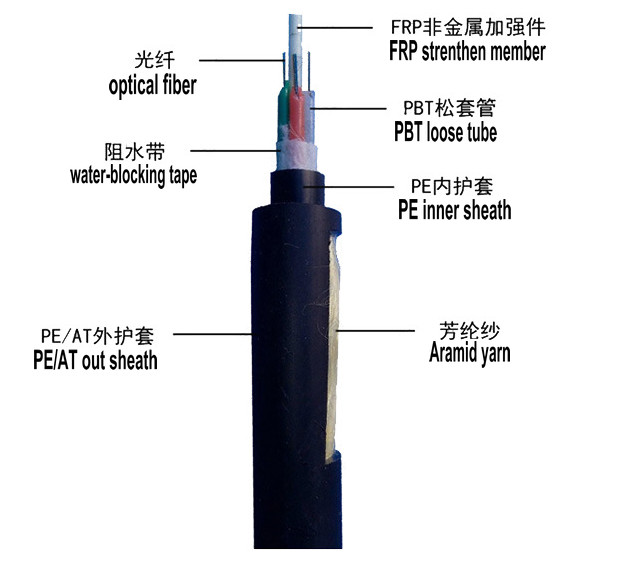

Structure Feature:

1.ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2.The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
3.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
4.After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath 1

Product features:

1.Can be installed without shutting off the power.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props.
3.Large span lengths and the largest span is over 200m.
4.Good performance of tensile strength and temperature.
5.The design life span is over 25 years.

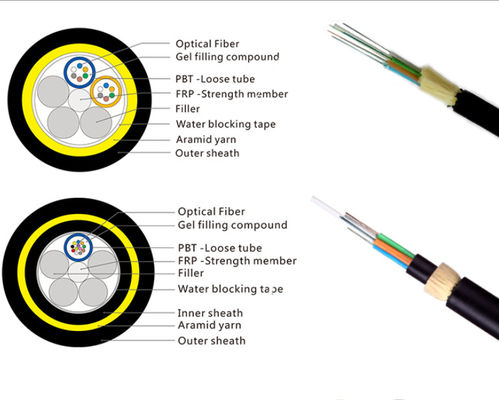

100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath 2

ADSS, there are two kinds of ADSS. One is single jacket, and the other one is double jacket.

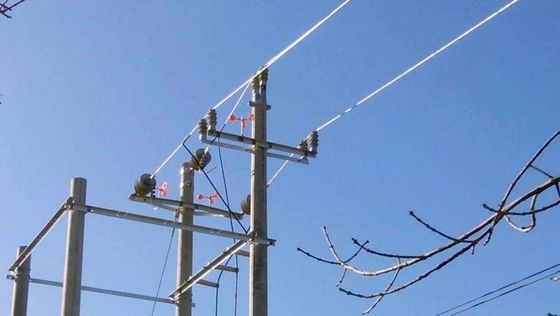

Application:

Outdoor self-support aerial and overhead

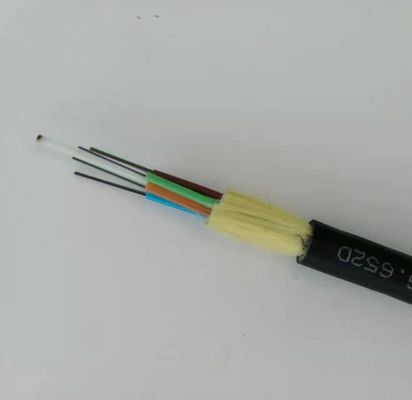

100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath 3



ADSS Data Sheet



Fiber quantity
/
2~30
32~60
62~72
74~96
98~120
122~144
Structure
/
1+5
1+5
1+6
1+8
1+10
1+12
Optical fiber type
/
G.652D
Central strength member
Material
mm
FRP
Diameter
(average value)
1.5
1.5
2.1
2.1
2.1
2.1
Cushion layer
Material
mm
MDPE
Thickness
(average value)



3.4
4.7
6.2
Loose tube
Material
/
PBT
Diameter
(average value)
mm
1.8
2.1
2.1
2.1
2.1
2.1
Thickness
(average value)
0.32
0.35
0.35
0.35
0.35
0.35
Max.fiber qty
6
12
12
12
12
12
Loose tube color
Full color
Fiber excess length
%
0.7~0.8
Water-resistant
Material
/
Jelly
Inner sheath
Material
mm
MDPE
Thickness
(average value)
Standard value:1.0/ min:0.8/ average value:0.9
Non-metallic
component
Material
/
Glass yarn
Outer sheath
Material
mm
MDPE
Thickness
(average value)
Standard value:1.8/ min:1.5/ average value:1.6
Cable diameter (average value)
mm
11.0
11.6
12.2
13.5
14.8
16.3
Cable weight (about)
kg/km
105
115
130
160
195
235
Max.Attenuation coefficien
1310mm
dB/km
0.35
1550mm
0.21
Pull tension strength
Long time
N
1000
Short time
3000
Crush pressure
Long time
N/
100
mm
1000
Short time
3000
Bending radius
Static
mm
12.5O.D.
Dynamic
25 O.D.
Temperature
Installing
°C
-20~+60
Storage & shipping
-40~+70
Working
-40~+70



Packaging Details
1.Wooden reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.



100m Span Armoring 24 Core Self Supporting Aerial Fiber Cable FRP Sheath 4

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
