Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: FTTH

Detail Information

Fiber Count: 2-144 Jacket Material: PE
Jacket Color: Black Warranty: 25 Years
Fiber Type: G652D,G657A Application: Overhead
Factory: Yes
High Light:

Self support Aerial Figure 8 Cable

,

GYFTC8Y Aerial Figure 8 Cable

,

GYFTC8Y Figure 8 Cable

Product Description

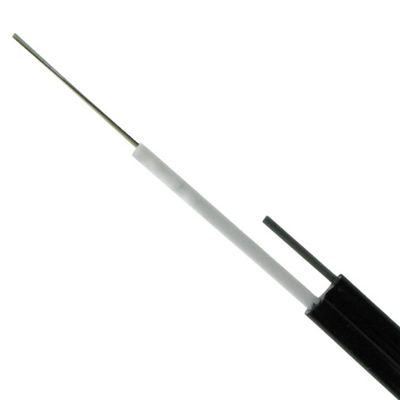

Self-support Aerial Figure 8 Cable 8 12 24 Core Stranded Steel Wire GYFTC8Y Optic Fibra Cable



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 0

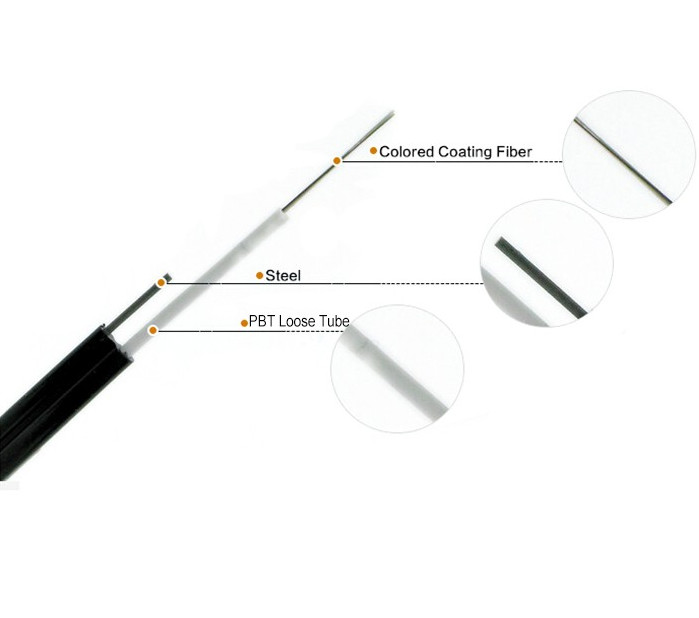

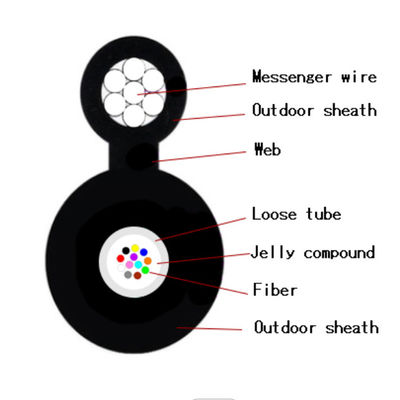

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member.

The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration.

This set unit and galvanized steel messenger are covered with polyethylene outer jacket.



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 1



Feature


Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 2





Structure and Technical Specifications GYXTC8Y(2-24F)

Fiber

Count

Nominal Diameter

(mm)

Nominal Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.0*12.5 85 4000 2000 200 100
>12 Available upon customer's request

Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 3



Structure and Technical Specifications GYTC8Y(2-288F)

Gyxtc8y Figure 8 Self-Support Aerial Non-Armored outdoor 80m spans Fiber Optic Cable

Note : This data sheet can only be a reference, but not a supplement to the contract. Please contact me for more detailed information.



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 5



Application:

  • Installed aerially.









Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 6



There are twelve fiber color code.They are A grade fiber.

Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 7









Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 8

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 9

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Self Support Aerial Figure 8 Cable Stranded Steel Wire GYFTC8Y 10

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1:Are you a factory or trade company?
We are a factory.



Q2:What is the MOQ?

The MOQ of Fiber Optic cable is 1km.


Q3:Which brand of fiber do you use?
YOFC,Fiberhome,etc


Q4:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.



Q5:What’s delivery time?
The general delivery time is 3-5 working days after order confirmed. It depends on the order quantity.


Q6.Can you supply customized products and logo?

Yes. We supply OEM service.


Q7.What’s your payment terms?
We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
