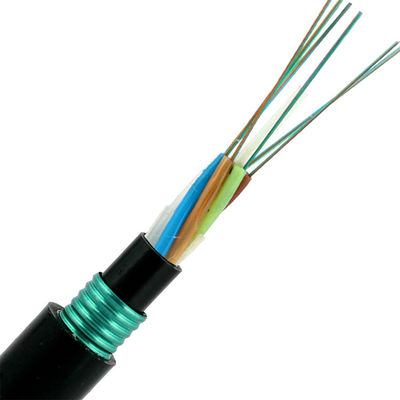

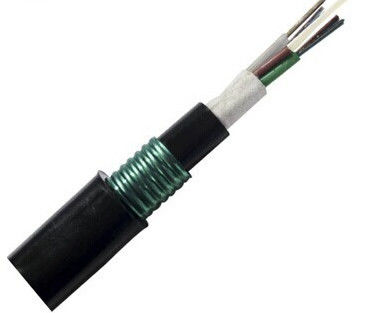

24 48 96 Core Underground Single Mode Double Sheath Fiber Optic Cable
Product Description

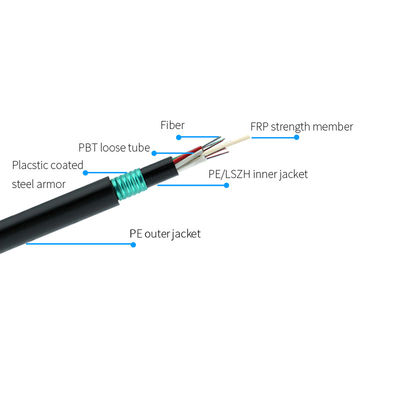

1.GYFTY53 uses a Fiber Reinforced Plastic (FRP) as central strength member to provides anti-electromagnetic interference property.
2.The armored structure protects the cable from rat bite and moisture proof.
3.The tubes (and fillers) are stranded around the strength member into a compact and circular core.
4.Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.
5.A layer of water-blocking material is applied around the cable core to prevent water ingress.
Features:
- 1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
Applicable fields:
Direct buried
Technical Parameters:
| Fiber Count |
Tubes |
Fillers |
Cable Weight (kg/km) |
Bending Radius (mm) |
Tensile Strength (N) |
Cruch Resistance (N/100mm) |
| Static |
Dynamic |
Long term |
Short term |
Long term |
Short term |
| 2-6 |
1 |
7 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 8-12 |
2 |
6 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 14-18 |
3 |
5 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 20-24 |
4 |
4 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 26-30 |
5 |
3 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 32-36 |
6 |
2 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 38-42 |
7 |
1 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 44-48 |
8 |
0 |
255 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 50-60 |
5 |
3 |
320 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 62-72 |
6 |
2 |
320 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 74-84 |
7 |
1 |
320 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 86-96 |
8 |
0 |
320 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 98-108 |
9 |
1 |
380 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 110-120 |
10 |
0 |
380 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 122-132 |
11 |
1 |
415 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
| 134-144 |
12 |
0 |
415 |
10D |
20D |
600 |
1500 |
1000 |
3000 |
Optical Parameters:
| |
|
50/125µm |
62.5/125µm |
G.652 |
G.655 |
| Attenuation(+20°C) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
|
|
| |
@1300nm |
≤1.0dB/km |
≤ 1.0dB/km |
|
|
| |
@1310nm |
|
|
≤0.36dB/km |
≤0.4dB/km |
| |
@1550nm |
|
|
≤0.22dB/km |
≤0.23dB/km |
| Bandwidth (Class A) |
@850nm |
≥ 500MHz.km |
≥ 200MHz.km |
|
|
| |
@1300nm |
≥ 1000MHz.km |
≥ 600MHz.km |
|
|
| Numerical Aperture |
|
0.200 ±0.015NA |
0.275 ±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
|
≤ 1260nm |
≤ 1450nm
|
There are twelve fiber color code.They are A grade fiber.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
