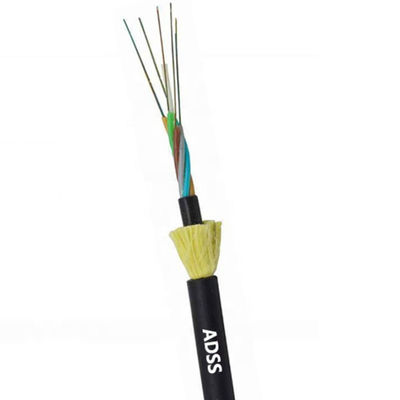

Double Jacket Mini Span Armoring 48 Core ADSS OFC Cable

Double Jacket ADSS Mini Span 100m Armoring 12 24 48 72 Core Fiber Optical Cable For Aerial

ADSS cable is loose tube stranded.

Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound.
it is covered with thin PE (polyethylene) inner sheath.

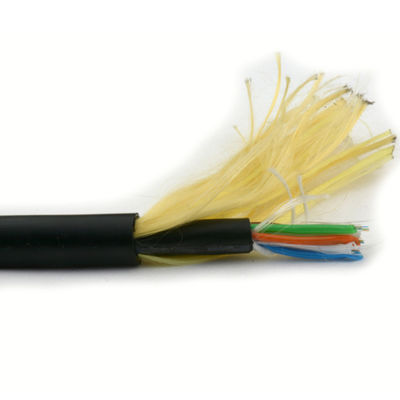

After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied.

FOR power lines equal to or over 110kV, AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Why choose us?

Costomer's Mark

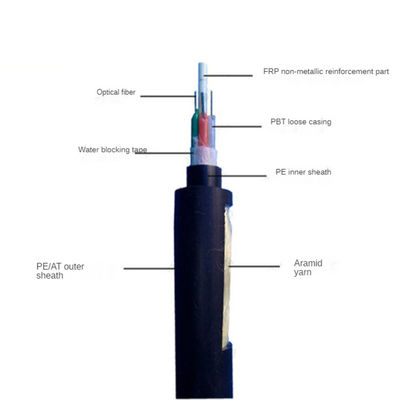

Structure and Technical Specifications

We are fiber cable  manufaturer.

 All products will have been strictly quality checked in house before packing , all products will be well packed before shipment.

Your cooperation with us will save cost and time.
