96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Fiber Count: 2-144 Cores Jacket: PE
Color: Black Lift Time: 25 Years
OEM: Yes Fiber Brand: YOFC
Fiber Type: G652D, G657D Strength Member: FRP
High Light:

FRP strength ADSS Fiber Optic Cable

,

YOFC ADSS Fiber Optic Cable

,

high voltage transmission ADSS cable

Product Description

Aerial Self-supporting All Dielectric 24 48 96 Core ADSS Cable Span 200m Single Jacket Fibra Optica Cable with FRP

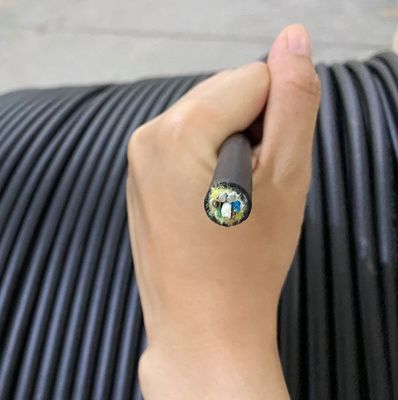

96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 0



Double Layer Aerial ADSS Cable is used for communication cable of overhead high-voltage electricity transmission system,

it also can be used as communication cable at the areas where lighting is frequent or distance is big.

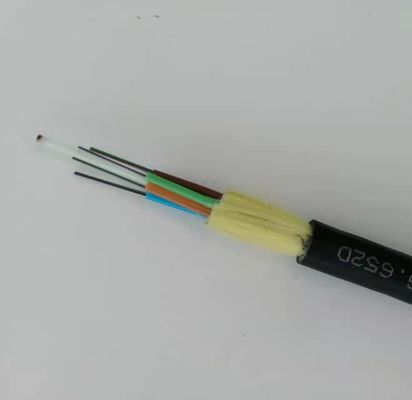

96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 1

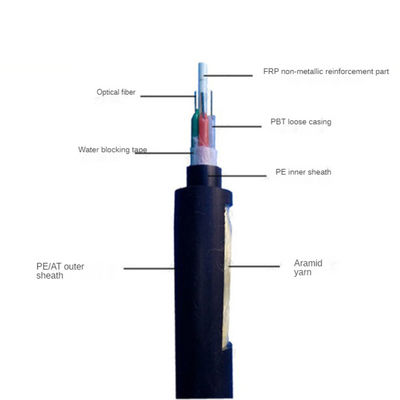

ADSS cable is loose tube stranded.

Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound.
it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

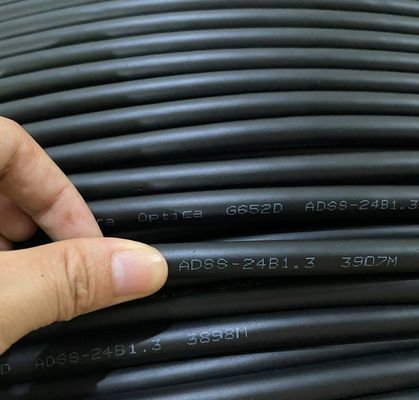

96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 2

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.

For overhead power lines under 110kV, PE outer sheath is applied.

FOR power lines equal to or over 110kV, AT outer sheath is applied.

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 3
96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 4

Ordering Information

Structure
Unit
Parameter
Fiber Counts
Fibers
6-24
36-48
48-72
74-94
96-144
Design (Strength member+tube&Filler)
--
1+5
1+6
1+8
1+12
Fiber type
--
G.652D
Central strength member
Material
mm
FRP
Diameter(±0.05mm)
1.5
1.5
2.1
2.1
2.1
Diameter (±0.05mm)Loose tube Diameter
Material
mm
PBT
Diameter (±0.05mm)
1.8
2.1
2.1
2.1
2.1
Thickness (±0.03mm)
0.32
0.35
0.35
0.35
0.35
MAX.NO./PER
6
12
12
12
12
Water Blocking Layer
Material
--
Flooding Compound
Inner Sheath
Material
mm
PE
Thickness
0.9(nominal)
Colour
black
Additional Strength member
Material
--
Aramid Yarn
Outer Sheath
Material
mm
PE
Thickness
1.8(nominal)
Colour
black
Cable Diameter (±0.2mm)
mm
11
11.5
12.1
13.5
16.6
Cable weight(±10.0kg/km)
kg
96
110
120
145
210
Attenuation coefficient
1310nm
dB/km
≤0.35dB/km
1550nm
≤0.21dB/km
Cable breaking strength(RTS)
kn
≥5.4
Working Tension(MAT)
kn
≥2.2
Wind velocity
m/s
25
Icing
mm
5
Span
m
70
Crush Resistance
Short term
N/100mm
≥2200
Long term
≥1100
Min.bending radius
Without Tension
mm
10 times Cable Diameter
Under Maximum Tension
20 times Cable Diameter
Temperature range(℃)
Installation
-20℃ to 60℃
Transport&Storage
-40℃ to 70℃
Operation
-40℃ to 70℃

 Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

96 Core ADSS Fiber Optic Cable FRP Strength For Overhead High Voltage Transmission 5

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
