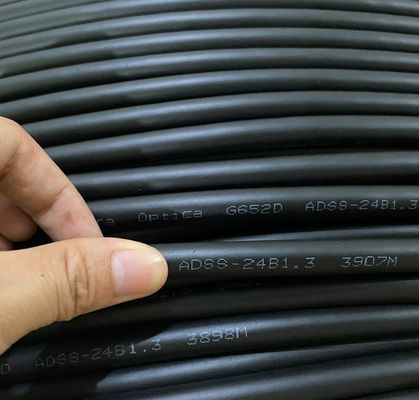

72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable
72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable
72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable
Contact Now

72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: haiso
Certification: ISO9001 Model Number: ADSS12 24core

Detail Information
Fiber Type: G652D/G657A1 Application: Aerial/duct
Number Of Conductors: 12 24 48 Core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 120m
Highlight:

72 Core ADSS Optic Cable

,

G657A1 all dielectric self supporting cabl

,

ADSS all dielectric self supporting cabl

Product Description

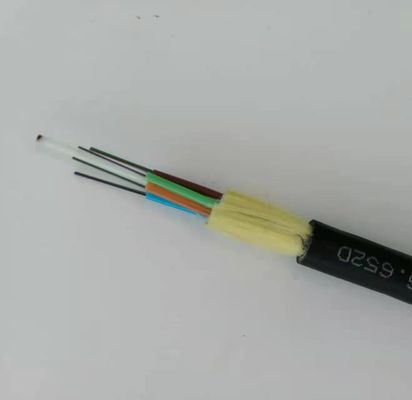

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 0
 Technical Characteristics
 Fiber Count
2-144
 Span
50-1000m
 Nominal Radian
1-3%
 Nominal Load
800-100000N
 Wind Speed
≤30 m/s
 Cable Outer Diameter
10.5~18.0 mm
Cable Weight
130-260 Kg/km
 Tensile Strength
2200 N/100mm
Min Bending Radius
 Static
15D
 Dynamic
25D
72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 1

Applications:

Adopted to the communication environment with high-voltage transmission network,lightning-prone areas and large span by the laying method of aerial.

Characteristics:

1.Good mechanical and temperature performance.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops.
3.Aramid yarn as strength making cable have excellent tensile strength performance.
4.Large span lengths and the largest span is over 1000m.
72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable 2
FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
