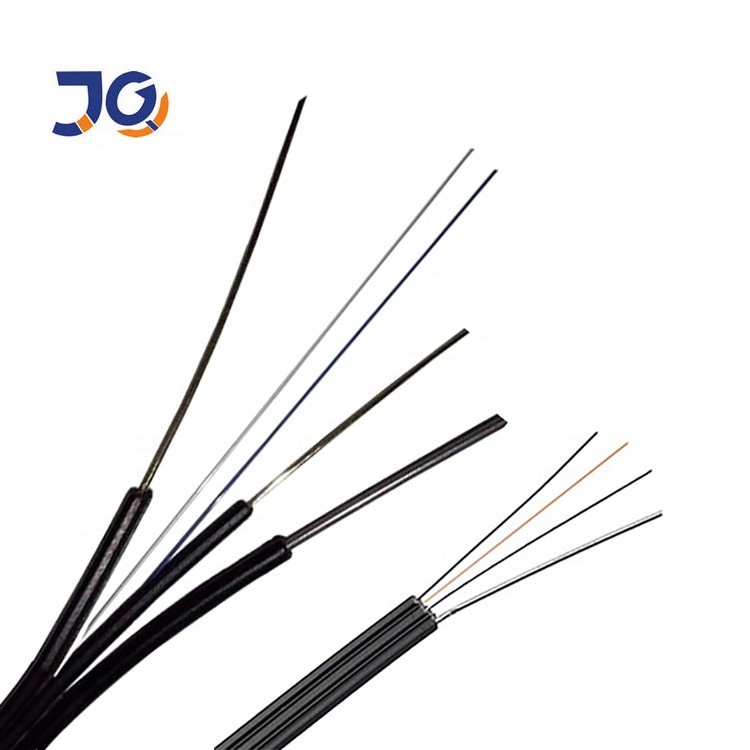

1 core 2 core 4 core GJYXCH /GJXH Fiber Optic FTTH Drop Cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: FTTH Optical Fiber Cable

Detail Information
Place Of Origin: Guangdong, China Application: Material
Material Of Sheath: LSZH Or As Your Need Core Number: 1-12 Core
Strength Member: Steel Wire/FRP Fiber Brand: YOFC
Fiber Type: G652D/G,657A Key Words: FTTH Optical Fiber Cable
Use: Network
Highlight:

GJYXFCH FTTH Drop Cable

,

1 Core FTTH Drop Cable

,

1 Core ftth drop wire

Product Description



 Products Description:

1 core 2 core 4 core GJYXCH /GJXH Fiber Optic FTTH Drop Cable 0

Self-support indoor/outdoor drop cable FTTH fiber optic cable

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.





Characteristic:

&Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property.



&Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.



&Steel wire or massagers as the additional strength member ensures good performance of tensile strength.



&Simple structure , light weight and high practicability special flute desigh , easily strip and splice , simplify the installation and maintenance.



&Low smoke , zero halogen and flame retardant sheath.



Optical Characteristic:

Model
 		 142 242 342 442
Type G.652D G.657A 50/125 μm 62.5/125 μm

Attenuation(+20 ℃)		 850nm     ≤3.0dB/km ≤3.5dB/km
1300nm     ≤1.5dB/km ≤1.5dB/km
1310nm ≤0.40dB/km ≤0.35dB/km
1550nm ≤0.3dB/km ≤0.25dB/km
Brandwidth(Class A) 850nm     ≥500MHz.km ≥200MHz.km
1300nm     ≥1000MHz.km ≥600MHz.km
Numerical Aperture     0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wave length ≤1260nm ≤1480nm



Technical Parameters:

Fiber Cores Cable OD(mm) Cable/Weight(kg/km) Tensile Strength(long/short term) Crush Resistance(long/short term N/100mm Bending Radius Static/Dynamic mm
1 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
2 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
4 (2.0±0.2)* (5.5±0.2) 21 60/120 300/1000 15/35
6 (2.0±0.2)* (6.0±0.2) 22 60/120 300/1000 15/35


Tag:

Self Supporting FTTH Fiber Optic Drop Cable

GJYXCH fiber drop cable

GJYXCH FTTH Optical Fiber Cable
