China Cable Supplier ADSS Single Jacket 48 Core Single or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-4 days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 80000 kilometers per month |
| Place of Origin: | China | Brand Name: | JQ\OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | ADSS |
|
Detail Information |
|||
| Place Of Origin: | Guangdong,China | Central Strength Menber: | FRP |
|---|---|---|---|
| Fiber Core: | 2-288Core | Jacket: | PE |
| Certification: | CE/ISO9001 | Storage/Transport Temperature Range: | -40℃ To +60℃ |
| Number Of Conductors: | ≥ 10 | Package: | Wood Drum |
| MOQ: | 1KM | ||
| Highlight: | Adss Optic Fiber 4 Core Cable,G652d 4 Core Cable,All Dielectric ADSS Fiber Optic Cable |
||
Product Description

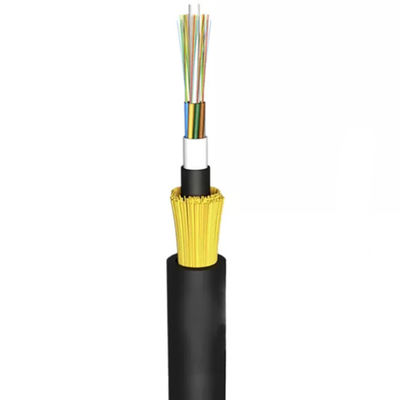

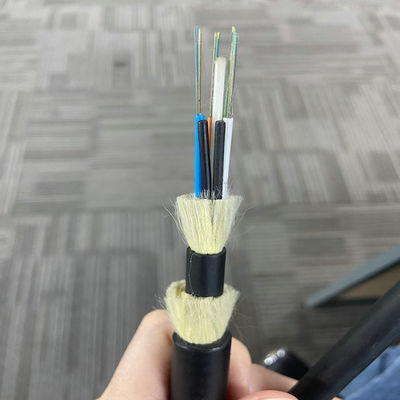

Professional Factory All Dielectric Self-Supporting G652d Adss 4 Core Cable Adss Optic Fiber with High Voltage
Single Jacket ADSS Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.5±0.2 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 24 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.3 | 85 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 11.8±0.3 | 123 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/6.2 | 1.7 | 14.5±0.3 | 175 |
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Products Description
