Home ProductsADSS Fiber Optic CableFactory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D
Contact Now

Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 3-5days Payment Terms : T/T, D/P
Supply Ability : 10000000m/5days
Place of Origin: Guangdong,China Brand Name: JQ
Certification: ISO 9001/CE/ROHS/FCC Model Number: ADSS

Detail Information
MOQ: 1km Color: Black
OEM: Yes ODM: Yes
Fiber Count: 12/24/48 Or Customized Package: 2/3/4km/Drum
Highlight:

Outdoor Aerial ADSS G652D

,

96 Core ADSS G652D

,

144 Core ADSS G652D

Product Description

Specification of MINI ADSS fiber cable
Fiber count
2-12
24
2-12
24
2-12
24
SPAN(M)
80
100
120
Loose Tube
OD(mm)
1.8±0.1
2.0±0.1
2.2±0.1
Material
PBT
Tube
1
2
1
2
1
2
Max fiber count/tube
12
FRP/Coating(mm)
1.8
2
2.2
Water Blocking Material
water-blocking yarn/ water-blocking glass yarn
Sheath
Thickness
Non.1.6mm
Material
PE
OD of cable (mm)
6.8±0.2
7.2±0.2
7.6±0.2
Net weight(kgkm)
43
49
55
Product Type
Application Tempreture
Fiber Count
4/6/8/12/36/48 Core,Customizable
Fiber Core Options
G.652.D/G.657A1/G.657A2...
Cable Weight
20 KG/KM
Jacket
Black LSZH ,customizable
Length
1000/2000 M per Drum,Customizable
Application Tempreture
-50~+70 ℃
RTS(N)
5000
MAT(N)
2000
EDS(N)
1250





Structures of ADSS Cable
ADSS cable structures are classified into two types of optical fibre:

1. Central Tube Design


The fiber network in this design is placed in a PBT loose tube that is filled with water-blocking material. Then, depending on the desired tensile strength, they are wrapped in aramid yarn and extruded with a PE (110KV electric field strength) or AT (100KV electric field strength) sheath. Of the two fibre cable types, this structure has a small diameter and is light in weight, but it has limited lengths.
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D 0

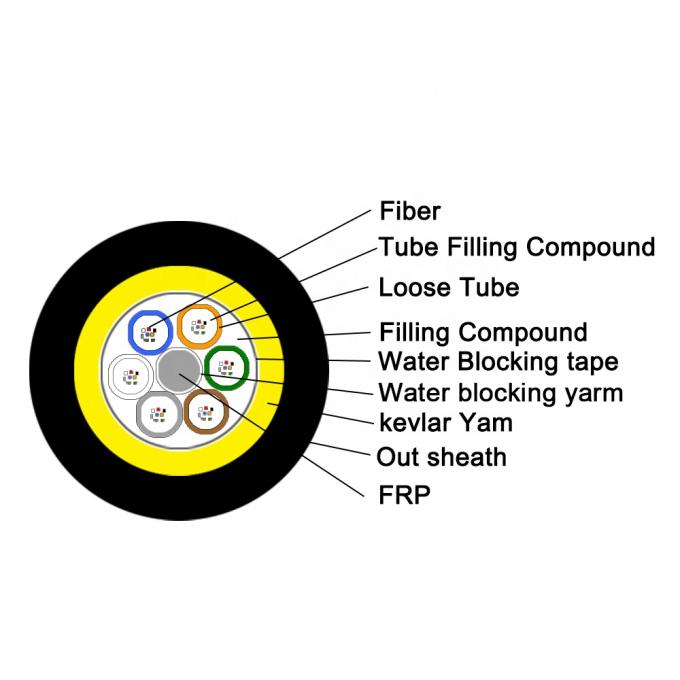

2. Stranded Structure Design


In a stranded structure design, the water-blocking grease and inner optical fibers are added to the loose fiber tube, and different loose tubes are coiled around the central reinforcement (usually FRP). The rest of the fiber optic wire is essentially the same as the central tube structure. Between both fiber optic cable types, the lattercan produce a longer fibre length. Despite its large diameter and weight, an ADSS fiber optic cable with this structure is better suited for long-distance applications.
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D 1
Workshop
Guangzhou jiqian fiber optic cable Co.,Ltd (Guangzhou haiso fiber optic cable co.,ltd) is a fiber optic communication manufacturer that started in 2011 is located at Guangzhou city ,and provides a professional fiber optic cable design and after-sales service for all over the world. Our team full of spirituality and vitality, bloody and soulful!! For the cutsomer to the colleague must be the customer's service!! All of our encounters are sincere links heart to heart! Our advantage, with a history of over 10years, 5years export experience, ship to more than 30countries, more than 40 employees. Choosing JQ is not only our success,but also yours



Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D 2

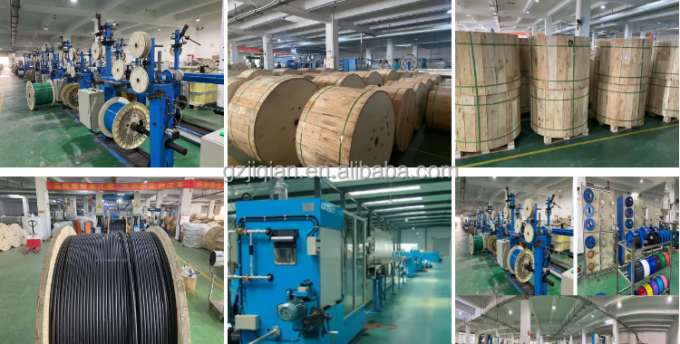

The number of goods

We are a direct manufacturer. We have our own factory, so you don't have to worry about the shortage of goods. Moreover, we have a large quantity of goods in stock every day.
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D 3
Certifications
Factory Single Mode 1 2 4 8 12 16 24 48 72 96 144 Core Outdoor Aerial ADSS G652D 4

FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included),however, a few of days would be taken for special ones.
Q2: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to visit our factory ,you can chat now, and we will welcome you at any time.
Q3: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different.

















Tag:

24 Core Adss Aerial Fiber Optic Cable

200m Span Adss Aerial Fiber Optic Cable

G657A1 adss optical cable
