Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable

1KM
MOQ
Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Brand: YOFC
Warranty: 25 Years
Length: 1km 2km 3km 4km
Color: Black
Factory: Yes
Fiber Count: 2-144 Core
Highlight:

48 Core Fibra Optic Cable

,

ADSS Fibra Optic Cable

,

200m ADSS Fiber Optic Cable

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Jiqian
Certification: CE/ROSH/ISO9001
Model Number: ADSS
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 days, that depends on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000pcs/day
Product Description

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 0

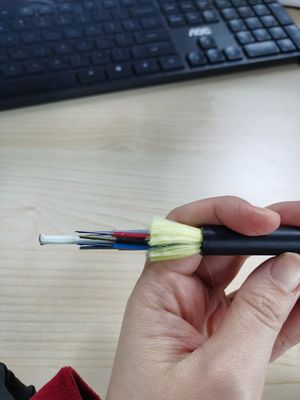

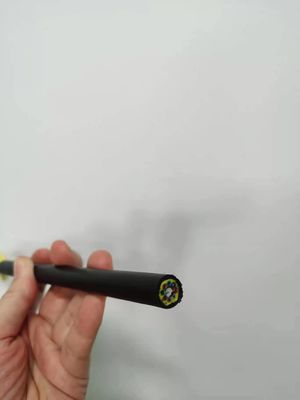

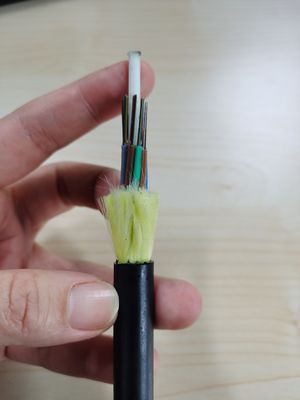

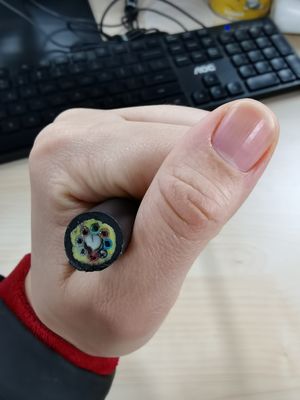

The fibers, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular core.

The cable core is filled with filling gel to protect it from water ingress.

The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 1

Dimensions of Cable Constructions

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
6 1+6 6 2.0±0.1 2.0/2.0 1.6 9.8±0.2 82
8 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
12 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 82
24 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 85
36 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 85
48 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 88
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.5±0.3 98
96 1+8 12 2.2±0.1 2.0/3.4 1.7 11.8±0.3 123
144 1+12 12 2.2±0.1 3.0/7.2 1.7 15.2±0.3 175

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 2

Package & Delivery

Wooden drum:1KM 2KM 3KM 4KM for one roll

Shipping: By sea/by air or express delivery, it depends on the order quantity

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 3







Factory Show

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 4



We are a factory.  Welcom to visit our factory.

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 5



Certificate

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable 6







FAQ:

1. Are you a manufacturer?
Yes. We are a company integrating industry and trade. Our factory is located in Guangzhou, Guangdong Province, China.

2.How can you guarantee quality?
We conduct three inspections from raw materials to finished products, and then to the factory. 25-year guarantee period.

3.What product do you sell?
There are fiber optic cable, FTTH drop cable, communication cables, outdoor/indoor fiber cable.

4 .What service can you provide?
One-to-one service, fast response.
