Outdoor Optical Fiber Cable All Dielectric Self - Supporting Fiber Optic Cable ADSS

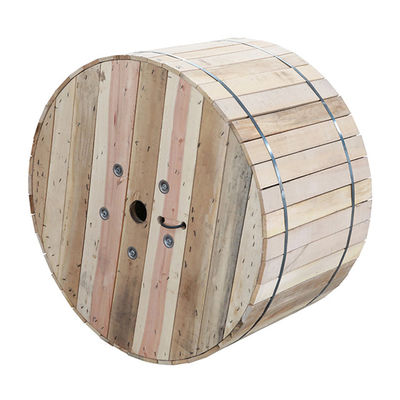

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Place Of Origin: Guangdong,China Central Strength Menber: FRP
Strength Member: Kevlar Aramid Yarn Fiber Count: 2-288cores
Certification: CE/ISO9001 Storage/Transport Temperature Range: -40℃ To +60℃
Number Of Conductors: ≥ 10 Loose Tube Material: PBT
Application: Aerial/outdoor
High Light:

Self - Supporting ADSS Optical Fiber Cable

,

144 Cores Optical Fiber Cable

,

All Dielectric ADSS Fiber Optic Cable

Product Description

Products Description

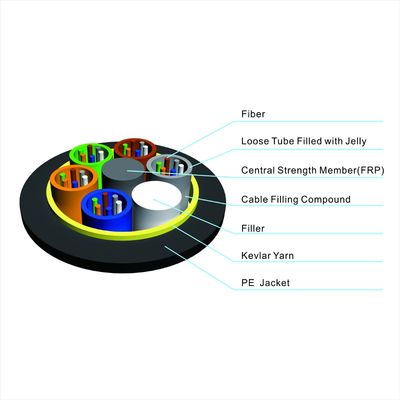

ADSS (All Dielectric Self-supporting Optical Fiber Cable)
Cable type
Single jacket ADSS-PE24B1

Attenuation
1310nm:≤0.36dM/km
1550nm:≤0.22dM/km
Cable outer dia
13mm
Outer sheath thickness
1.7±0.2mm
Cable Weight
80±10%kg/km
Min. bending radius
(mm)(D:cable dia)
Static:10D
Dynamic:20D

Transport/Storage temp
Laying: -25~+60 °C
Transporting: -40~670°C

Features:

low transmission attenuation and dispersion.
Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.
The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.
The water blocking gel filled core design provides the cable excellent water-proof performance and moisture-resistance, with smaller size.

Good flexibility and bending performance
Due to the non-metallic structure, the cable is light and easy in laying and has a very strong ability of anti-electromagnetic disturbance.
The cable is very suitable for self-supporting installation mode and has a high tensile strength along with a powerful harsh-environment surviving capability.

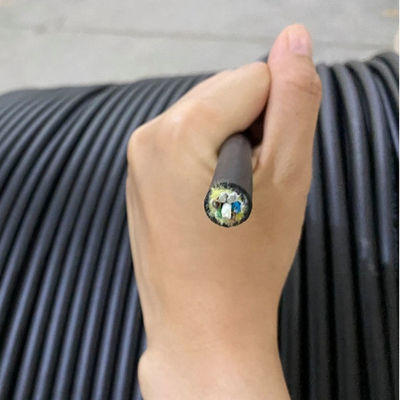

Outdoor Optical Fiber Cable All Dielectric Self - Supporting Fiber Optic Cable ADSS 0
Outdoor Optical Fiber Cable All Dielectric Self - Supporting Fiber Optic Cable ADSS 1



Outdoor Optical Fiber Cable All Dielectric Self - Supporting Fiber Optic Cable ADSS 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
