Aramid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Place Of Origin: Guangzhou,China Central Strength Menber: FRP
Strength Member: Kevlar Aramid Yarn ADSS Cable Jacket: PE
Certification: CE/ISO9001 Storage/Transport Temperature Range: -40℃ To +60℃
Number Of Conductors: ≥ 10 Operating Temp: -20℃~+60℃
Application: Indoor/Outdoor Access Building
High Light:

120m Span Optical Fiber Cable

,

Aramid ADSS Optical Fiber Cable

Product Description

Fiber Cable Arimid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable

Characteristics

1. Can be installed without shutting off the power;
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
4. Large span lengths and the largest span is over 1000m;
5. Good performance of tensile strength and temperature;
6.The design life span is 30 years.

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Mechanical and Environmental Characteristics























Performance parameters

Rated tensile strength (RTS)



KN



4.5

Allows the use of tension (MAT)



KN

2
The average annual running tension (EDS)



KN



1.8

Limit running tension (UES)



KN



3.2

Thermal expansion coefficient



10-6/℃



1/℃

Young's modulus



kN/mm2



3.75

The compressive strength For a long time 1000N/100mm
In the short term 2000N/100mm
The minimum bending radius run 115mm
laying 235mm
  laying -20~+60°C
  Applicable temperature range Transportation and operation -40~+60°C
  Yu long fiber optic cable



0.4-0.6%

  life time   Max 25 year

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Product description

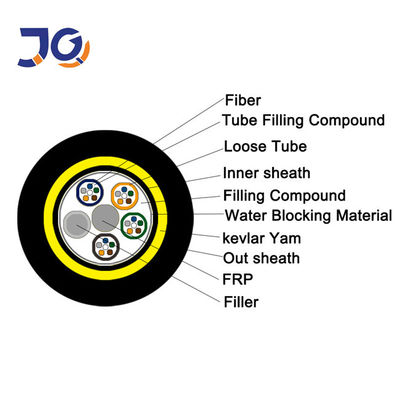

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT (anti-tracking) outer sheath.

Antena Autosuficiente Cable De Fibra Optica ADSS 24 Core Aerial Fiber Optic Cable Price Cable Fiber Optic

Aramid YARN Strength Member ADSS 80m 100m 120m Span Optical Fiber Cable 1
