China Cable Supplier ADSS Single Jacket 48 Core Single or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-4 days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 80000 kilometers per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | ADSS |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Central Strength Menber: | FRP |
|---|---|---|---|
| Strength Member: | Kevlar Aramid Yarn | Crush: | 3000N/100mm |
| Certification: | CE/ISO9001 | Storage/Transport Temperature Range: | -50℃ To +70℃ |
| Number Of Conductors: | ≥ 10 | Operating Temp: | -20℃~+60℃ |
| Bend Radius (Under Installation): | 20 X External Diameter Of Cable | ||
| Highlight: | Adss 12 Core Fiber Optic Wire,G652d Fiber Optic Wire,Kevlar Aramid Yarn Fiber Optic Wire |
||
Product Description

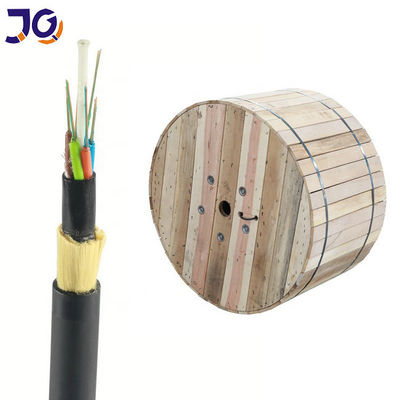

fiber optic wire adss 12 core 2km fibre optique fiber optical g652d cable roll drum
Products Description
Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
Single Jacket Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.5±0.2 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 24 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.3 | 85 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 11.8±0.3 | 123 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/6.2 | 1.7 | 14.5±0.3 | 175 |

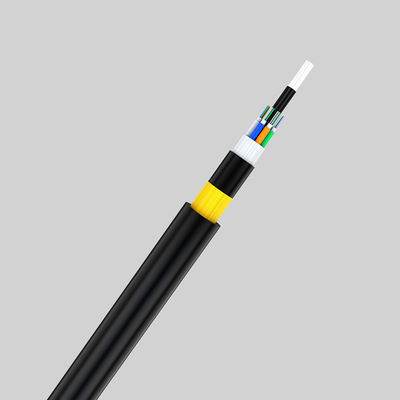

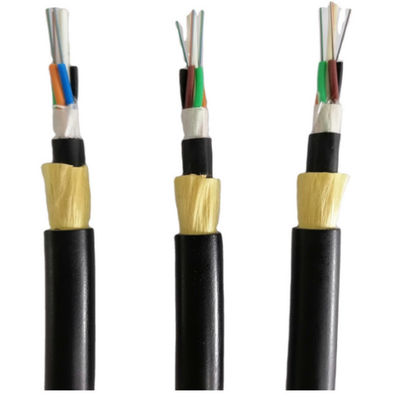

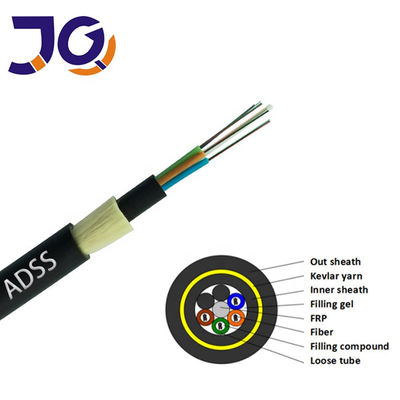

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
