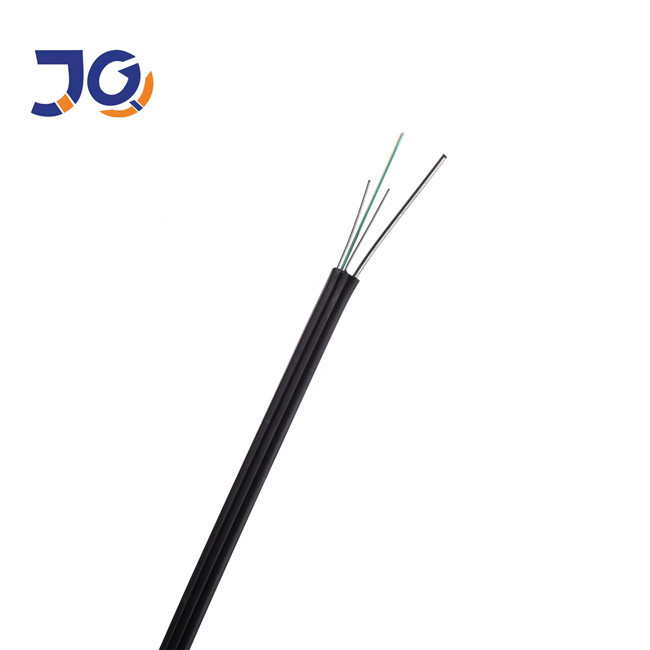

GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: outdoor drop cable

Detail Information

Model Number: GJXH GJXCH Brand Name: JQ\OEM
Material Of Sheath: LSZH Or PE Jacket Colors: Black/White/Customized Color
Strength Member: Steel Wire Fiber Type: G652D/G,657A
Key Words: FTTH Optical Fiber Cable Package: Wooden Drum And Carton/customized
Core Number: 1-12
High Light:

1 Core FTTH Drop Cable

,

G657A FTTH Drop Cable

,

1KM FTTH Fiber Optic Drop Cable

Product Description

Products Description

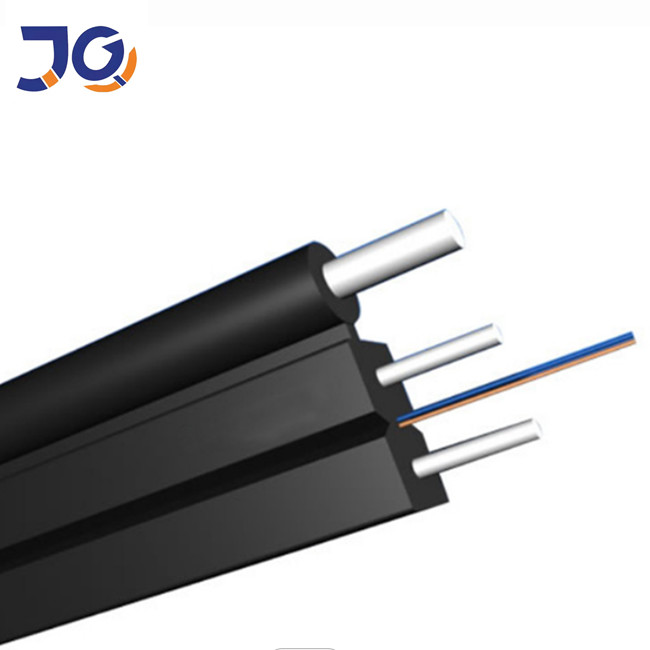

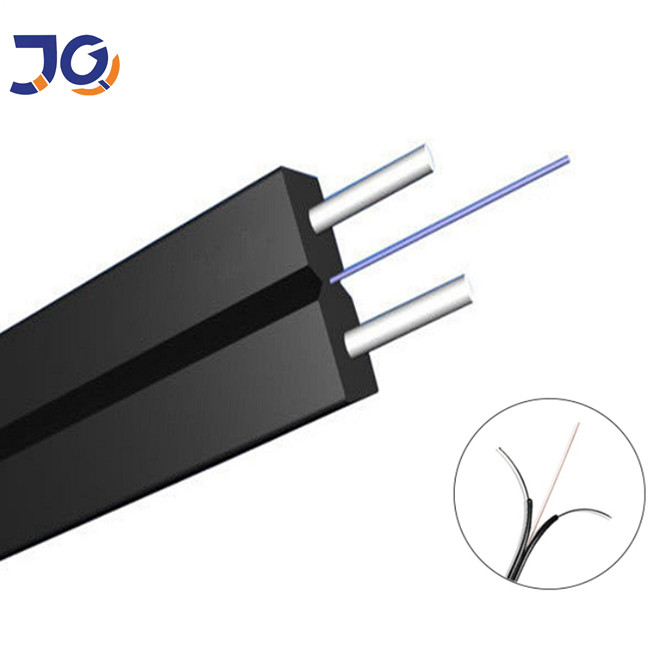

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.

Item
Technology parameter
Cable Type
Drop Cable
Cable Count
1 2 4 6 8 12
Fiber Color

Blue,Orange,Green,Brown,Gray,Natural,

Red,Black,Yellow,Purple,Pink,

Aqua

Fiber Type
9/125 (G657A1)
Outer Sheath Color
Black or white
Sheath Material
LSZH
Cable Dimension (mm)
3.1*1.9
Cable weight (Kg/km)
9
Min. bending radius (mm)
10 (Static) 20 (Dynamic)
Attenuation (dB/km)
≦ 0.36 at 1310nm, ≦ 0.22 at 1550nm
Short term tensile (N)
200; 600
Crush resistance (N/100mm)
1000; 2200
Operation temperature (℃)
-20~+70℃

Features:

1.Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
6. Used in indoor cabling, and end users directly cabling;
7.Used as access building cable.

Structural Parameter

Model No. Count

Cable Size

(mm)

Weight

(kg/km)

Tension
(N)

Crush

(N/100mm)

Bending Radius Static / dynamic
(mm)
GJYXCH-1Xn 1 3.1*1.9 9 300/600 1000/2200 10/20
GJYXCH-2Xn 2 3.1*1.9 9 300/600 1000/2200 10/20




Technical Parameters

Fiber Cores Cable OD(mm) Cable/Weight(kg/km) Tensile Strength(long/short term) Crush Resistance(long/short term N/100mm Bending Radius Static/Dynamic mm
1 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
2 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
4 (2.0±0.2)* (5.5±0.2) 21 60/120 300/1000 15/35
6 (2.0±0.2)* (6.0±0.2) 22 60/120 300/1000 15/35

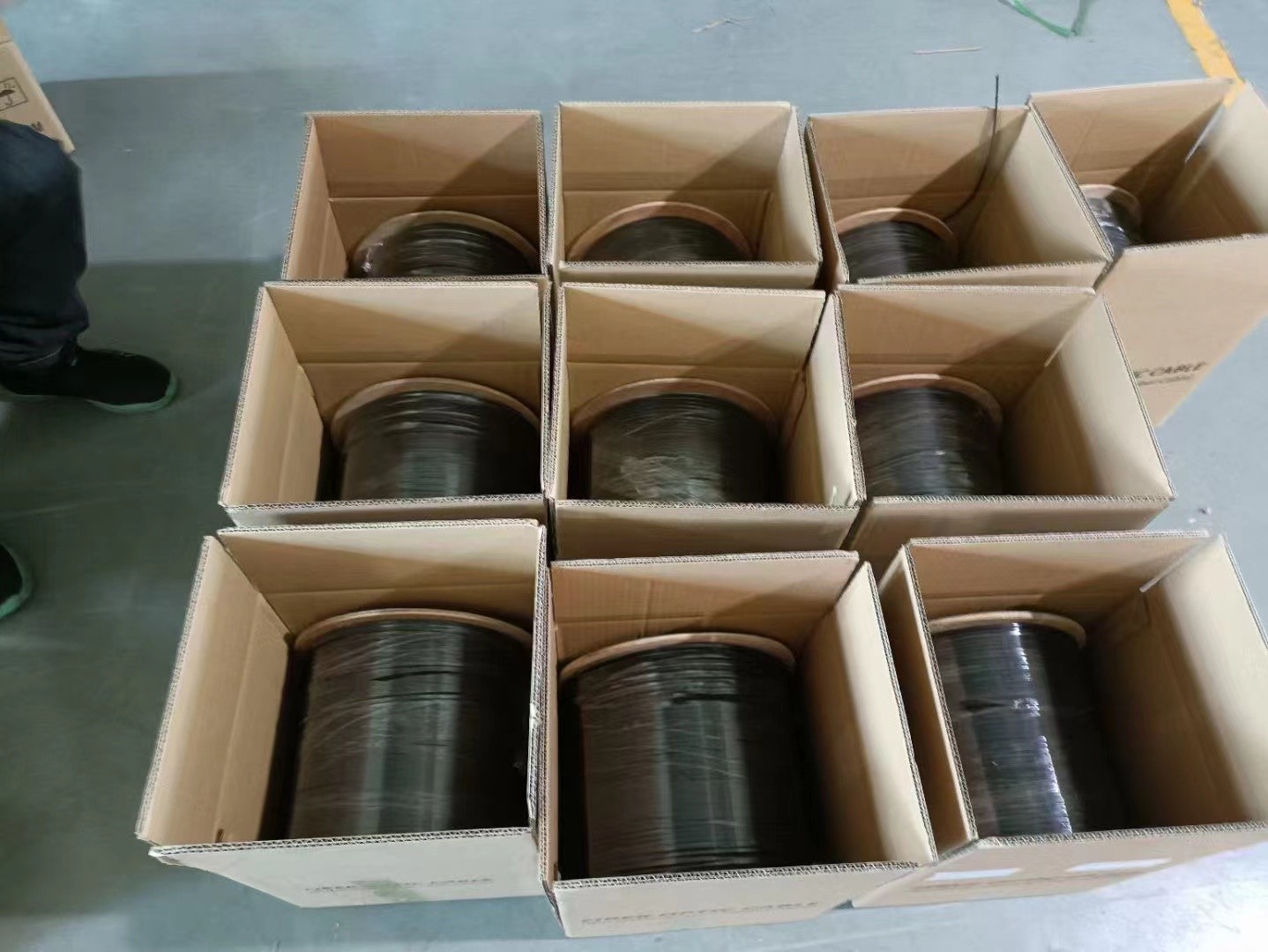

Packing

1/2/3/4km or customized length export carton

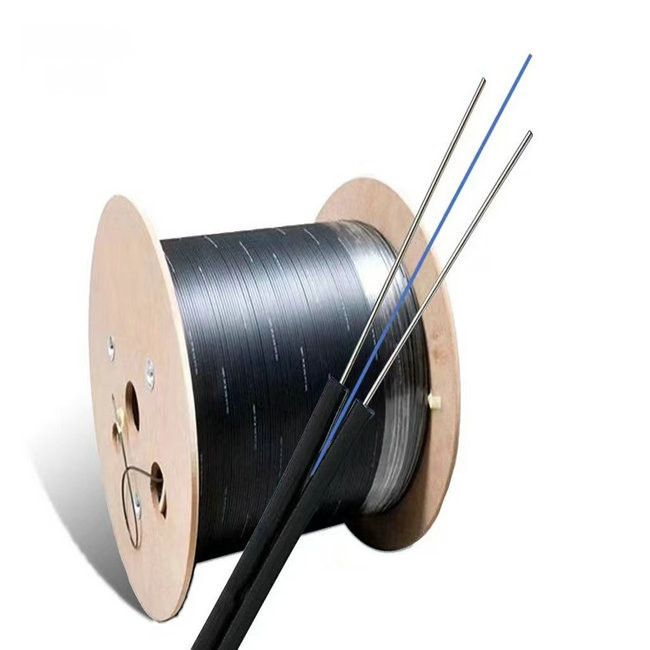

GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM 0

Application

• Indoor and outdoor wiring system

• FTTH, terminal system

• Indoor and outdoor shaft,building wiring

GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM 1



FAQ

1.Are you the real manufacturer?
We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
