GYFXTS Unitube (Central Loose Tube) Outdoor Fiber Optic Cable Armored Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Price : | 98 |
|---|---|---|---|
| Packaging Details : | Plywood drum | Delivery Time : | 3-5 days,it depends on order quantity |
| Payment Terms : | L/C, T/T, Western Union,Alipay | Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | FCC/ROHS/ISO9001/CE | Model Number: | Mini ADSS/ASU80 |
|
Detail Information |
|||
| Highlight: | 8.0mm Diameter Outdoor Fiber Optic Cable,12 Hilos Outdoor Fiber Optic Cable,ADSS Outdoor Fiber Optic Cable |
||
|---|---|---|---|
Product Description

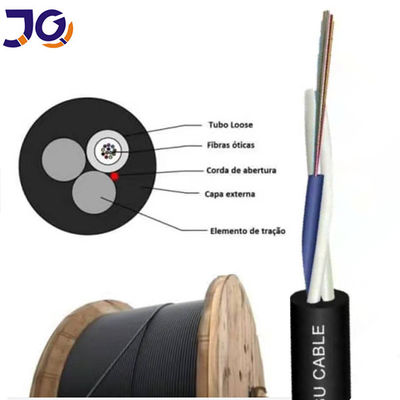

Fibra Optica 12 Hilos Monomodo Mini ADSS Spam 100m
Cable Parameters:
| Item | Parameters | |
| Fiber Count | 12 | |
| Water blocking material | Water block yarn | |
| Span | 100m | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Yellow,Green,Red,Violet,White ,Blown, Pink, Black, Gray, Orange, Aqua | |
| Loose tube | Diameter | 2.3mm±0.1mm |
| Material | PBT | |
| Color | blue | |
|
Filling compound in loose tube
|
Gel | |
| Strength Member | FRP | 2.0mm |
| Armoured | Non-armoured | |
|
Outer sheath
|
Material | PE |
| 8.0mm | ||
Fiber Optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Packing&Delivery:
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-200 | >200 |
| Est time(day) | 3-5 days | negotiable |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
