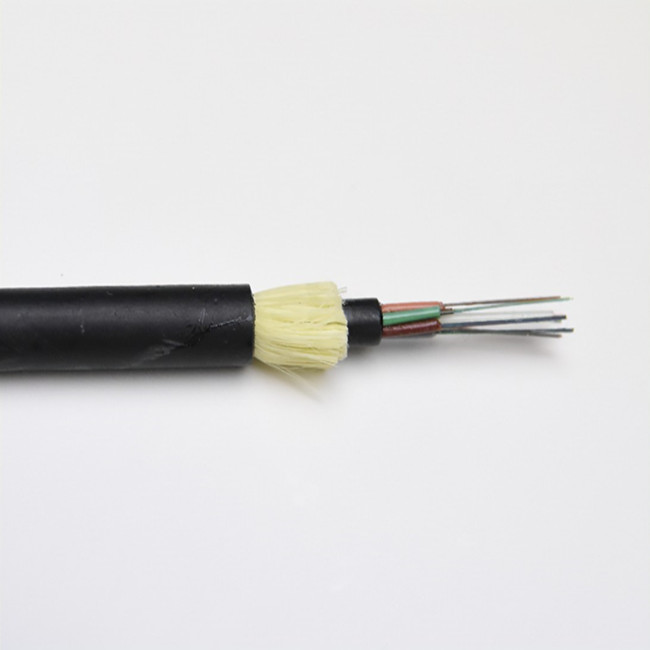

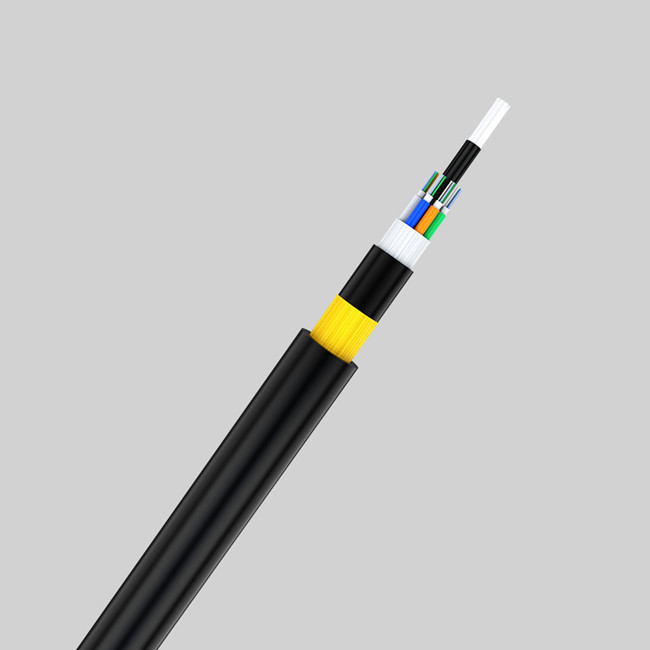

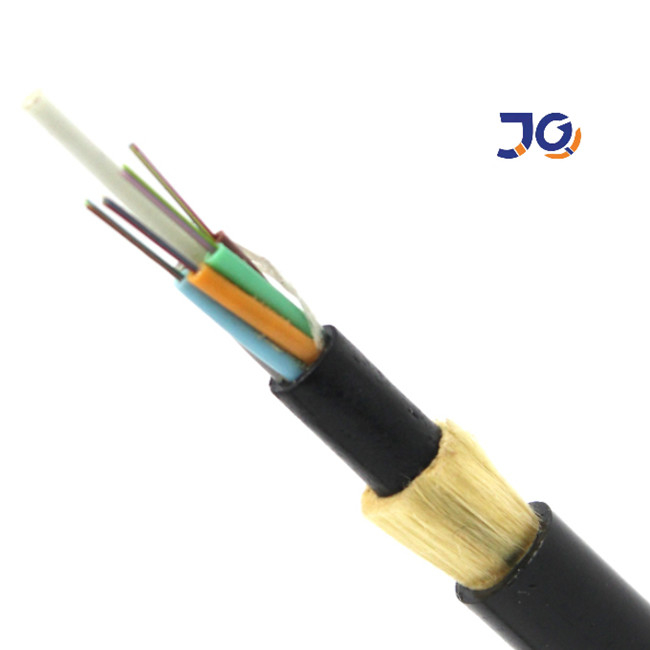

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: JQ\OEM
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Place Of Origin: Guangdong,China Fiber Core: 2-144 Core
Jacket: PE Certification: CE/ISO9001
Storage/Transport Temperature Range: -50℃ To +70℃ Number Of Conductors: ≥ 10
Package: Wood Drum MOQ: 1KM
Strength Member: FRP
High Light:

PRQ Aerial Optical Fiber Cable

,

Aerial Optical Fiber Cable 24 Cores

Product Description

Professional Factory All Dielectric Self-Supporting G652d Adss 4 Core Cable Adss Optic Fiber with High Voltag

Characteristic of Optical Cable

Cable bending radius: 10 x cable diameter (during operation)

20 x cable diameter (during installation)

Temperature range

Operating temperature range -20℃ to +60℃
Storage / Transport temperature range -50℃ to +60℃
Installation temperature range -20℃ to +60℃

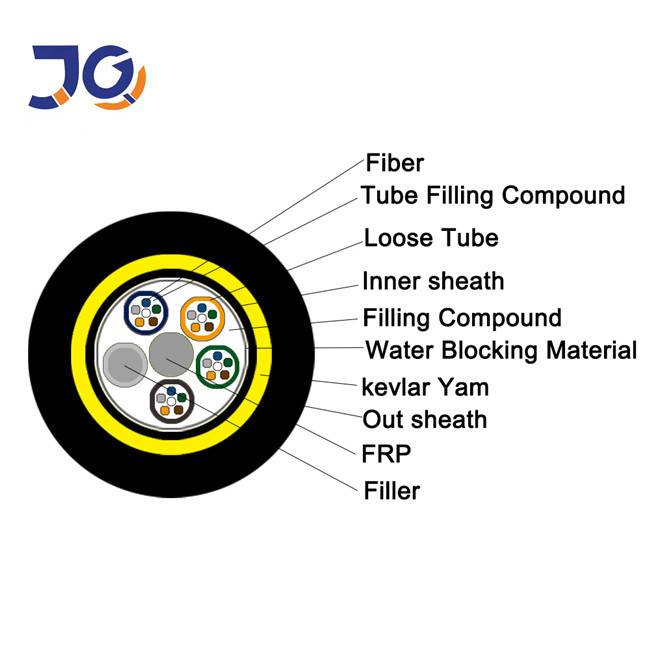

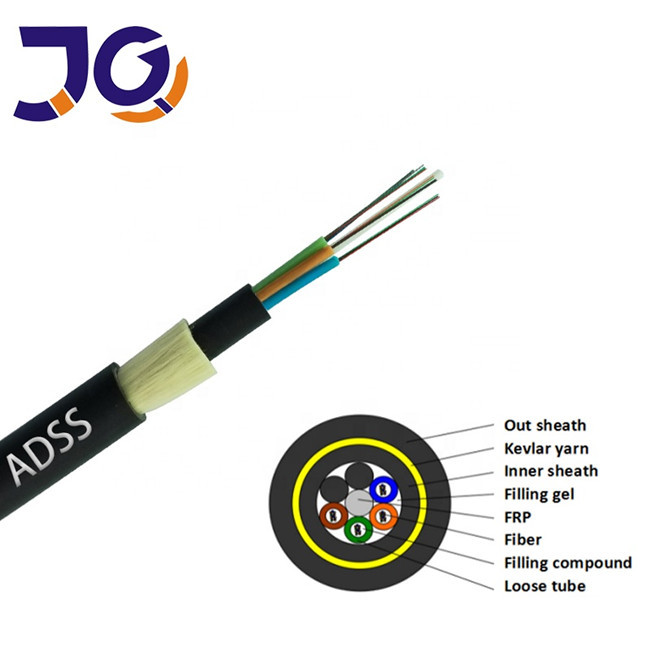

Double jacket adss cable structure and parameter

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter

/pad diameter(mm)

Nominal Thickness of

Inner jacket

(mm)

Nominal Thickness of outer jacket(mm)

Cable diameter

(mm)

Cable

Weight

(kg/km)

4 1+6 4 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
6 1+6 6 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
8 1+6 4 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
12 1+6 6 2.0±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
24 1+6 6 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
36 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
48 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
72 1+6 12 2.1±0.1 2.0/2.0 1.0 1.7 12.0±0.5 120
96 1+8 12 2.1±0.1 3.5/3.5 1.0 1.7 14.0±0.5 170


Products Description

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting 0
Why Choose Us !

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting 1
Packing :

Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

Sealed by strong wooden battens.

At least 1 m of inside end of cable will be reserved for testing.

Drum length

Standard drum length is 4000m±5%;

Single length not less than 90% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;

Total quantity is at least the ordered quantity.

FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting 2
100% Wood Reel
100% wood reel , safe, environmentally friendly and can be recycled
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting 3
Cable Rolling
Different dia of wood drum suit for different distance , from 2km to 5km
FRP Aerial Optical Fiber Cable ADSS 24 Cores G652D Aramid Yarn Dielectric Self Supporting 4
Solid Wood Package
The packaging is firm and can be applied to complex geographical environment construction
