Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-4 days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 80000 kilometers per month |
| Brand Name: | JQ\OEM | Model Number: | ADSS |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong,China | Certification: | CE/ISO9001 |
|---|---|---|---|
| Fiber Core: | 2-288 Core | Jacket: | PE |
| Storage/Transport Temperature Range: | -40℃ To +60℃ | Number Of Conductors: | ≥ 10 |
| Package: | Wood Drum | MOQ: | 1KM |
| Strength Member: | FRP | ||
| High Light: | Micro ADSS Fiber Optic Cable,LSZH Sheath ADSS Fiber Optic Cable,ADSS Fiber Optic Cable Single Mode |
||
Product Description
Professional Factory All Dielectric Self-Supporting G652D ADSS 4 Core Cable Adss Optic Fiber
Products Description
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |

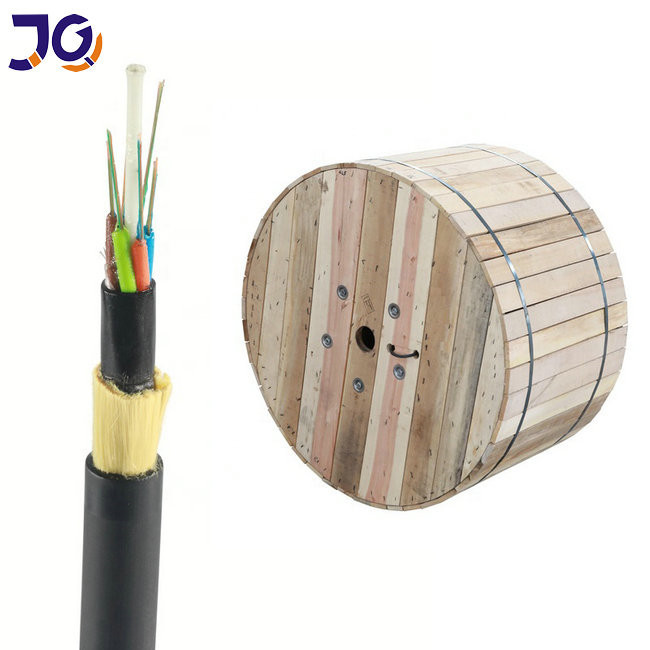

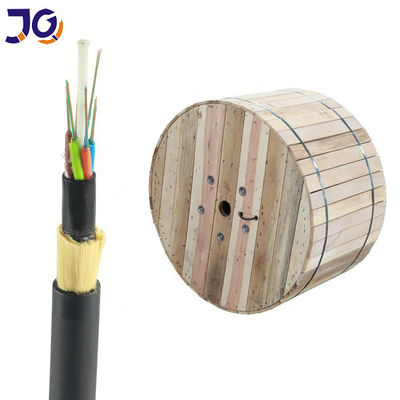

Packing :
Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.
Sealed by strong wooden battens.
At least 1 m of inside end of cable will be reserved for testing.
Total quantity is at least the ordered quantity
Payment
We usually use T/T
T/T deposit before production and balance when shipment.
certification
