Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 96core 144core

Detail Information

Fiber Type: G652D Application: Aerial/duct
Number Of Conductors: 96core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 80m 100m 200m 300m
High Light:

Non Metallic ADSS Fiber Optic Cable

,

ADSS Fiber Optic Cable 96 Core

,

ADSS Fiber Optic Cable G652D

Product Description

Non-Metallic Single jacket 6/12/24/48/96 Core100/200m span G652D Fiber Optic Cable ADSS
ADSS fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. AFL manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.

Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D 0
Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D 1
Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D 2
Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D 3

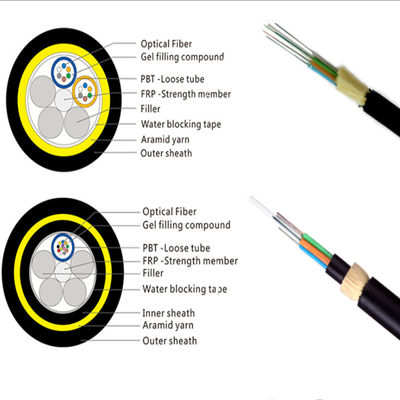

Technical Data:



Cable fiber count
/
2~30
32~60
62~72
Structure
/
1+5
1+5
1+6
Fiber style
/
G.652D
Central strength member
material
mm
FRP
Diameter (average)
1.5
1.5
2.1
Loose Tube
Material
mm
PBT
Diameter (average)
1.8
2.1
2.1
Thickness(average)
0.32
0.35
0.35
Max fiber/loose tube
6
12
12
Tubes color
Full color identification
Fiber excess length
%
0.7~0.8
Water resistance
Material
/
Cable jelly
Inner sehath
material
mm
MDPE
Inner sheath
0.9mm
Non-metallic strengthen components
Material
/
Aramid Yarn
Outer sheath
material
mm
MDPE
Outer sheath
1.8mm
Cable diameter(average)
mm
10.9
11.5
12.1
Cable weight (Approximate)
kg/km
95
110
120
Cable Sectional area
mm2
93.31
103.87
114.99
Attenuation coefficient(Max)
1310nm
dB/km
0.35
1550nm
0.21
Rated Tensile Strength(RTS)
kn
6
Max allowed tension( MAT)
kn
2.5
Annual average operating tension (EDS)
kn
3.2
Young's modulus
kn/mm2
7.8
Coefficient of thermal expansion
10-6/℃
9
Crush resistance
Long term
N/100mm
1100
Short term
2200
Permission Bent Radius
static
mm
15 of OD
dynamic
20 of OD

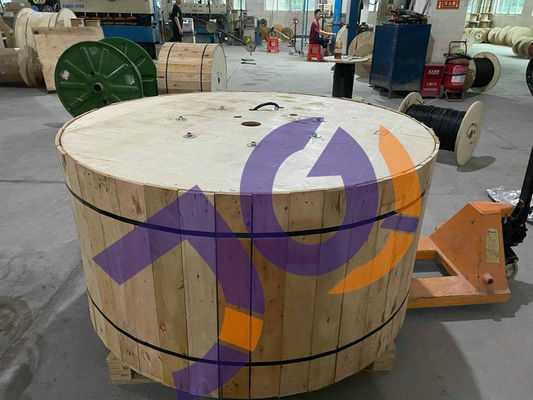

Packing details:

1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements

1.One wooden reel of the cable packed in a carton

The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about

Non Metallic Single Jacket ADSS Fiber Optic Cable 6/12/24/48/96 Core 100/200m Span G652D 4

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
