Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent
Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent
Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent
Contact Now

Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12core 24 core 48core 96core

Detail Information
Fiber Type: G652D Application: Aerial/duct
Number Of Conductors: 48core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 100m
Highlight:

Span 100cm ADSS Fiber Optic Cable

,

ADSS Fiber Optic Cable Anti Rodent

Product Description

Single jacket Span 100mcAnti-rodent Fibra Optica Cable Outdoor ADSS

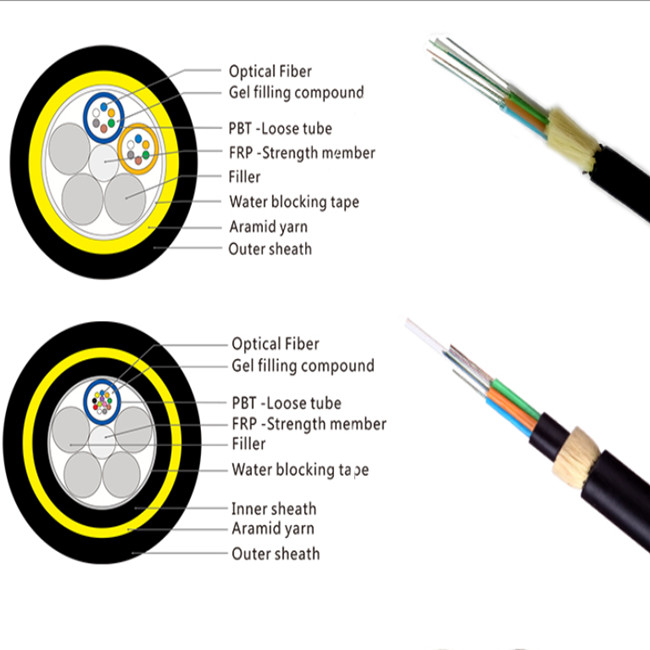

ADSS cable is loose tube stranded.Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath
Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 0

Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 1


Applications

Suitable for network in high electromagnetic interfering places.

Suitable for aerial.

Long distance and local area network communication.

Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 2



Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150



Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510

Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 3Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 4Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent 5



FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
