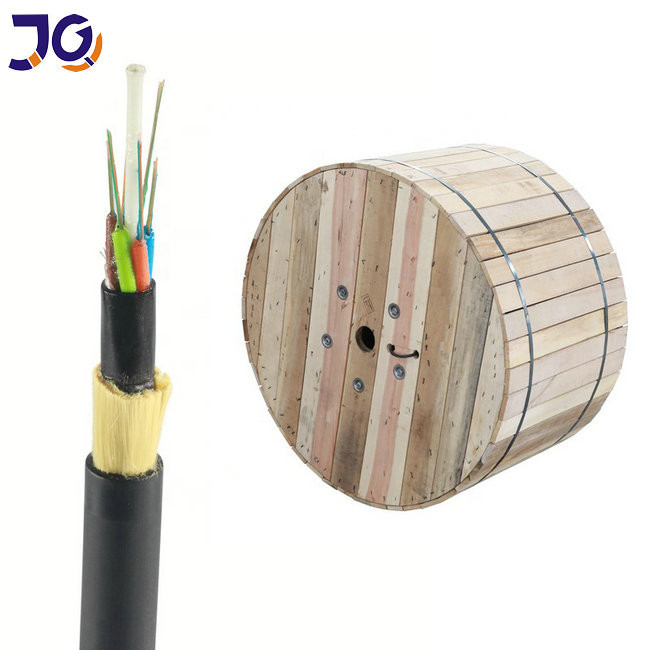

Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum/customized |
---|---|---|---|
Delivery Time : | 2-4days | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per Month |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO9001 | Model Number: | ADSS |
Detail Information |
|||
Fiber Type: | G652D | Application: | Aerial/duct |
---|---|---|---|

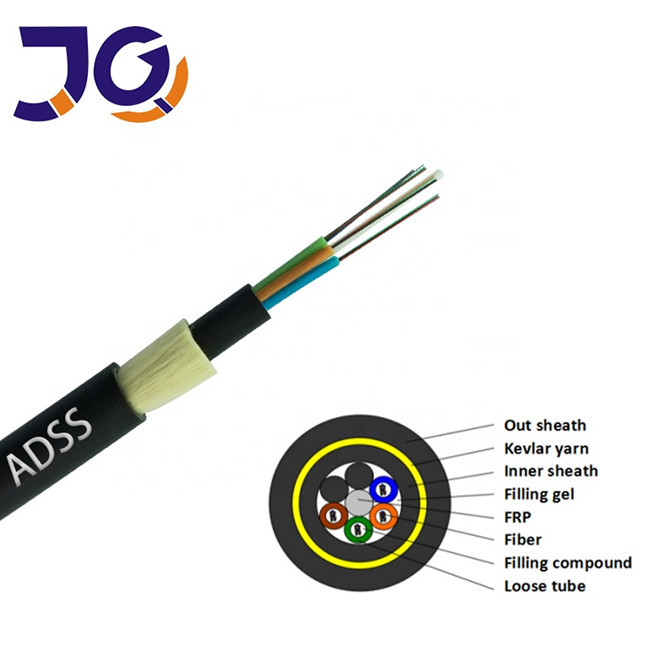

Number Of Conductors: | 48 Core 96 Core 144core | Structure: | Stranded Loose Tube |
Operating Temperature: | -40 ~ +60 C | Central Strength Member: | FRP |
Span: | 80m 100m 200m 300m | ||
High Light: | ADSS Fiber Optic Cable 12 Core,Anti Rodent ADSS Fiber Optic Cable |
Product Description

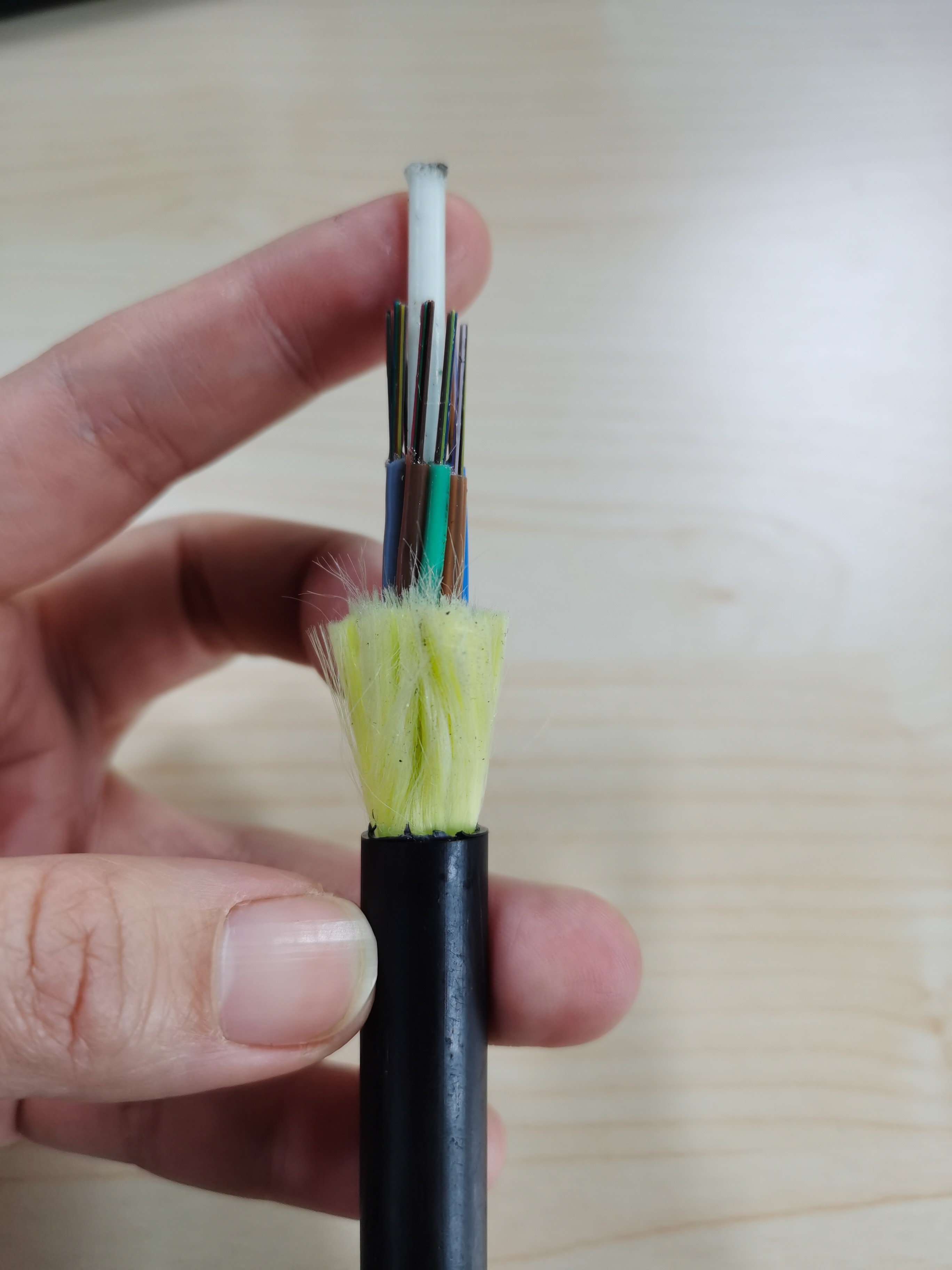

Span 100m 12core Outdoor ADSS Anti-rodent Fibra Optica Cable
ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.
Features:
1:Can be installed without shutting offthe power.
2:ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
3:Light weight and small diameter reducing the load caused by ice and wind and the load on towers and 4:backprops.
5:Large span lengths and the largest span is over 200m.
6:Good performance oftensile strength and temperature.
7:The design life span is over 30 years.
Applications:
Aerial
Structure and Technical Specifications ADSS-SJ(50-150M):
Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
||||
PE Jacket | AT Jacket | A | B | C | D | |||||||
11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
||||
PE Jacket | AT Jacket | A | B | C | D | |||||||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Note: Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired from EFON directly.
Specifications in the table are got on condition that there is no height difference and the installation sag is 1 %.
Fiber count is 2 to 72. The identification of fibers complies with the national standard.
This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
