6 / 12 / 24 / 48 / 96 Core ADSS Fiber Optic Cable Outdoor Non Metallic 100 / 200m Span

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12core/24core/48core

Detail Information

Span: 80m 100m 200m 300m Fiber Type: G652D/G657A1
Application: Aerial/duct Number Of Conductors: 48 Core
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: FRP
High Light:

96 Core ADSS Fiber Optic Cable

,

100m Span ADSS Fiber Optic Cable

Product Description

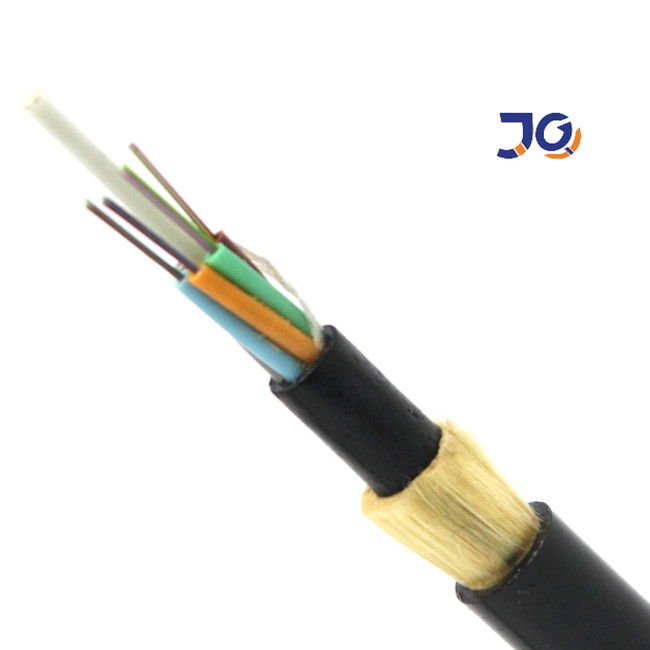

Non-Metallic 100/200m span 6/12/24/48/96 Core Fiber Optic Cable ADSS Outdoor

ADSS cable adopts loose tube gysts structure, optical fiber into the pine casing made of high modulus polyester material, waterproof casing filling compound pine casing (and filling line) around non-metallic center (FRP) to strengthen core twisted into a compact core, core within the gap filled with gel core outer extrusion polyethylene (PE) inner sheath, and then strengthen the bidirectional twisted around two layers of the function of aramid yarn, finally extrusion polyethylene (PE) coat or electrical erosion resistance (AT) your coat.

 6 / 12 / 24 / 48 / 96 Core ADSS Fiber Optic Cable Outdoor Non Metallic 100 / 200m Span 06 / 12 / 24 / 48 / 96 Core ADSS Fiber Optic Cable Outdoor Non Metallic 100 / 200m Span 1

Characteristics:
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
-Single Fiber Reinforced Plastic as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP enhancing moisture-proof
-Water-blocking material





Optical Characteristics:

    G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0dB/km ≤3.0dB/km
@1300nm   ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Bandwidth(Class A) @850nm   ≥500MHz·km ≥200MHz·km
@1300nm   ≥1000MHz·km ≥600MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.15NA
Cable Cut-off Wave length ≤1260nm





Standards:

ADSS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1

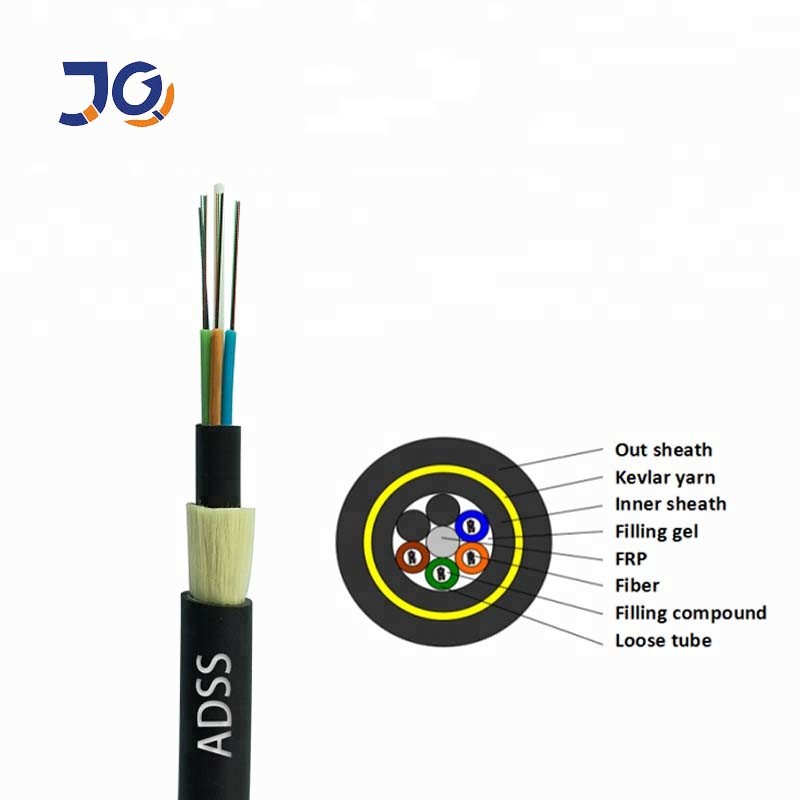

Structure:

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cableOutdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable









Feasures:

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable

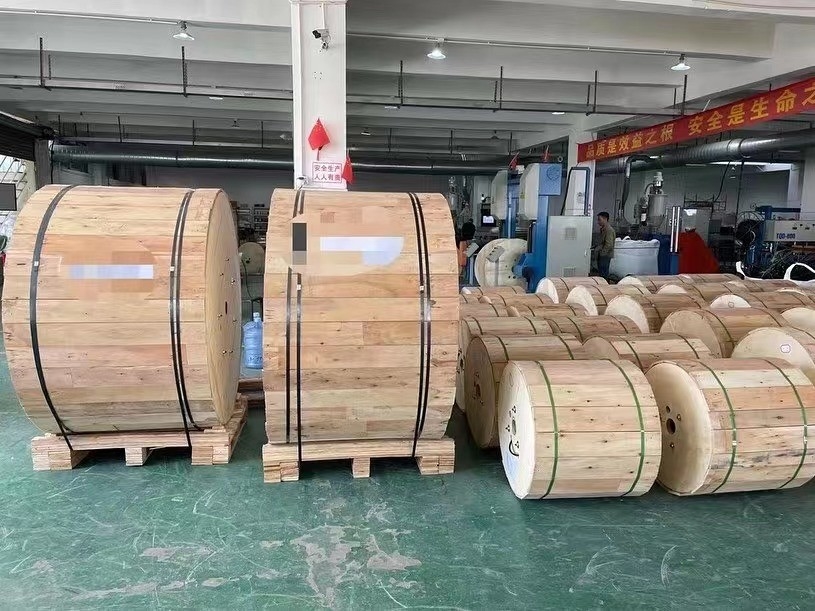

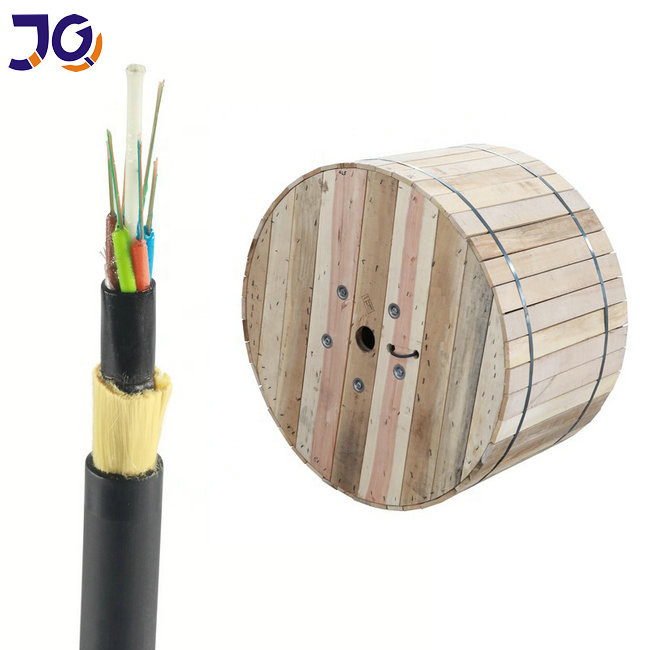

Packaging & Shipping

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable










FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
