Aerial G652d Self Supporting Outdoor ADSS Fiber Optic Cable 48 Core

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 96core

Detail Information

Span: 80m 100m 200m 300m Fiber Type: G652D/G657A1
Application: Aerial/duct Number Of Conductors: 48 Core
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: FRP
High Light:

Self Supporting ADSS Fiber Optic Cable

,

G652d ADSS Fiber Optic Cable

,

ADSS Fiber Optic Cable 48 Core

Product Description

48 core Optical Aerial G652d Fibre Self Supporting Outdoor fibra optica adss



ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, the outermost is the electric tracking (AT) outer sheath.

12 24 96 Core Adss Cores Price 48 Optical Aerial G652d Fibre Self Supporting Outdoor fibra optica adss

Characteristics:


·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·The following measures are taken to ensure the cable watertight:
-Single Fiber Reinforced Plastic as the central strength member
-Loose tube filling compound
-100% cable core filling
-PSP enhancing moisture-proof
-Water-blocking material





Optical Characteristics:



    G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0dB/km ≤3.0dB/km
@1300nm   ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Bandwidth(Class A) @850nm   ≥500MHz·km ≥200MHz·km
@1300nm   ≥1000MHz·km ≥600MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.15NA
Cable Cut-off Wave length ≤1260nm





Standards:



ADSS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1

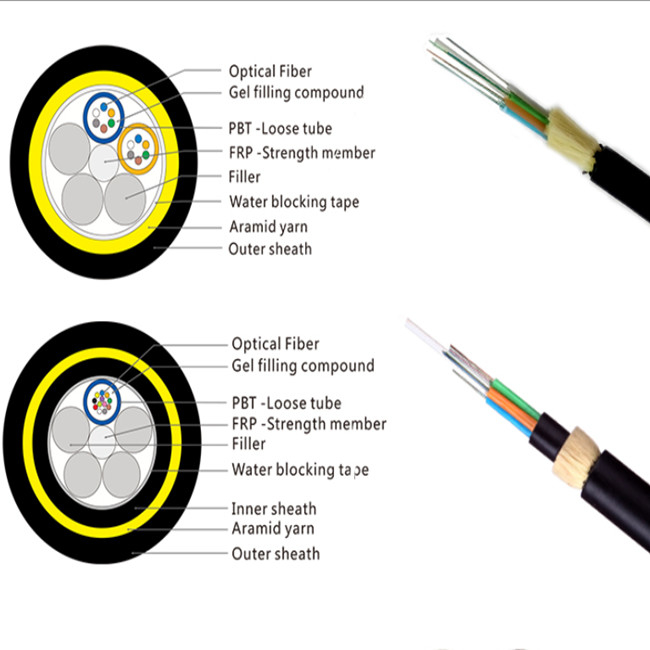

Structure:

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cableOutdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable









Feasures:

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable

Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core  span 100m adss fiber optic cable



Packaging & Shipping




12 24 96 Core Adss Cores Price 48 Optical Aerial G652d Fibre Self Supporting Outdoor fibra optica adss







FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
