ADSS 100m Clear Span S/S 12/24/48/96/144 Core Fiber Optic Cable

Name: ADSS 100m Clear Span S/S 12/24/48/96/144 Core Fiber Optic Cable
Brand: Jiqian/OEM
SKU: ADSS
Rating: 4.7 (130 reviews)

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou	Brand Name:	Jiqian/OEM
Certification:	ISO9001 ROHS CE-EMC FCC SDOC	Model Number:	ADSS

Detail Information
Fiber Type:	YOFC	Fiber Count:	4 -144 Core
Color:	Black	Length:	4km/roll
Jacket Material:	HDPE	Name:	ADSS Optical Fiber Cable
Strength Member:	FRP/Armid Yarn	Operating Temperature:	-40 ~ +60 C
Span:	100m	Installation:	Oveahead
High Light:	24 Core Fiber Optic Cable , ADSS 100m Fiber Optic Cable , 144 Core Fiber Optic Cable

Product Description

ADSS 100m Span S/S 12/24/48/96/144 Core Fiber Optic Cable

All Dielectric Self Supporting cable or more commonly referred to as ADSS cable is a type of fiber optic cable that is used in aerial applications. This type of cable does not need a messenger to support it, so it can be installed in a single pass. This cable construction does not contain any metallic elements so it is also non-conductive.

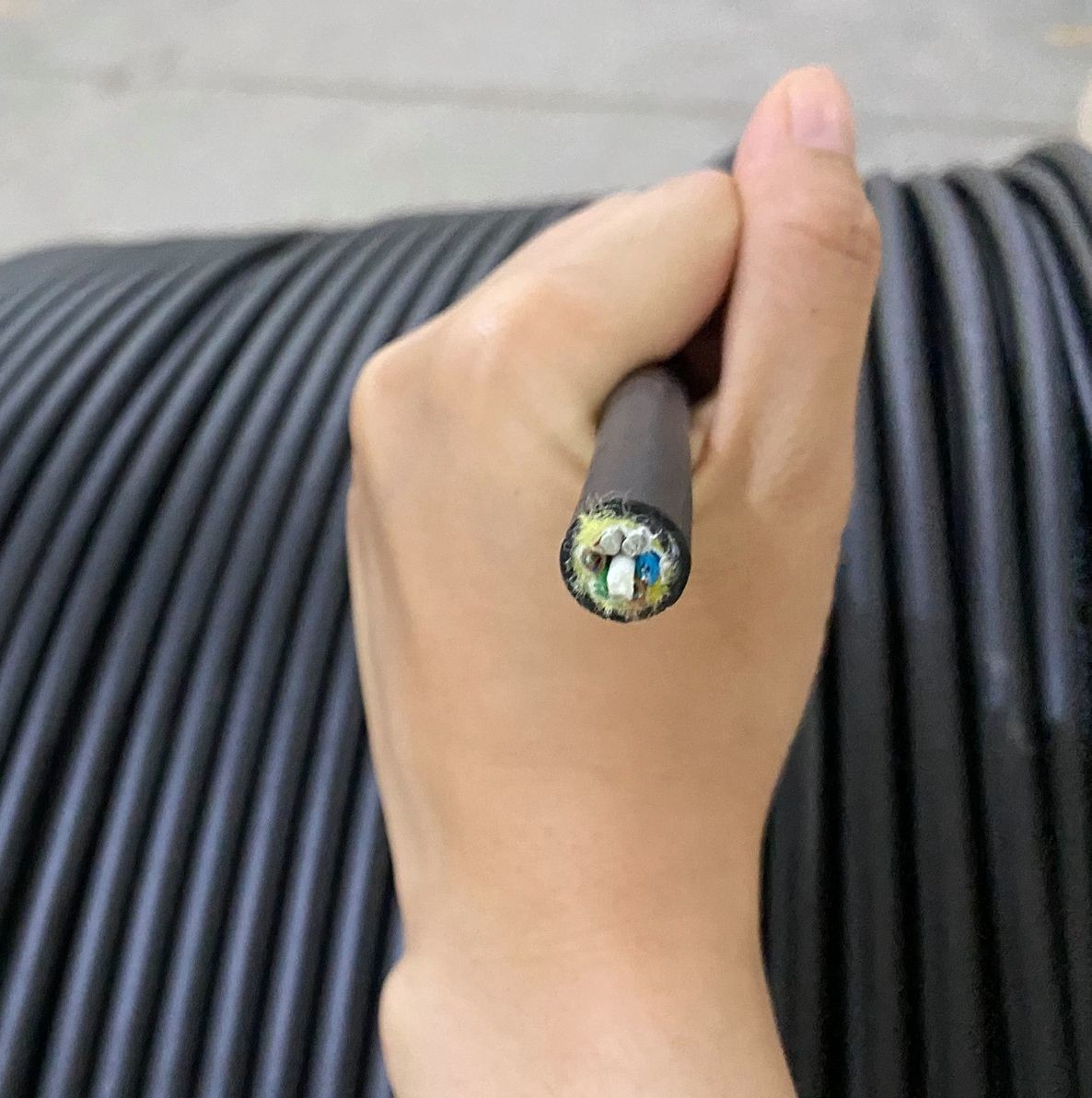

ADSS 100m Clear Span S/S 12/24/48/96/144 Core Fiber Optic Cable 0

Characteristics

* Number of fibers up to 144
* The nominal diameter and bending radius of the cable are small

* The smaller circular profile further reduces wind and ice loads

* The single cable diameter of 2 ~ 60 fibers simplifies the selection and splicing of hardware

* A wide variety of B-route fibers

* Excellent short-span ability

* Effective and economical alternative short span

* Light weight, easy to operate and install

* Double MDPE sheath for fast and convenient cable preparation

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Cable structure	Name	ADSS-24B1-PE-100
	FRP Center to strengthen core FRP	2.0mm
	Loose tube (filling gel)	2.2±0.1mm
	外护厚度PE Outsheath thickness PE	1.8±0.2mm
	光缆外径 Cable diameter	10.0±0.3mm
	光缆重量 cable weight	85±10%kg/km
	松套管数量 Loose tube(pcs)	4
	每根管光纤芯数 Each tube contains fibers	12 cores
	松套管颜色 Loose tube color	蓝Blue,橙Orange
	光纤颜色 Optical fiber color	蓝Blue,橙Orange,绿Green,棕Brown,灰Gray,白White 红Red,黑Black,黄 Yellow,紫Purple,粉Pink,青绿Aqua

Packaging & Shipping
2/3/4km per plywood drum or customized

Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable

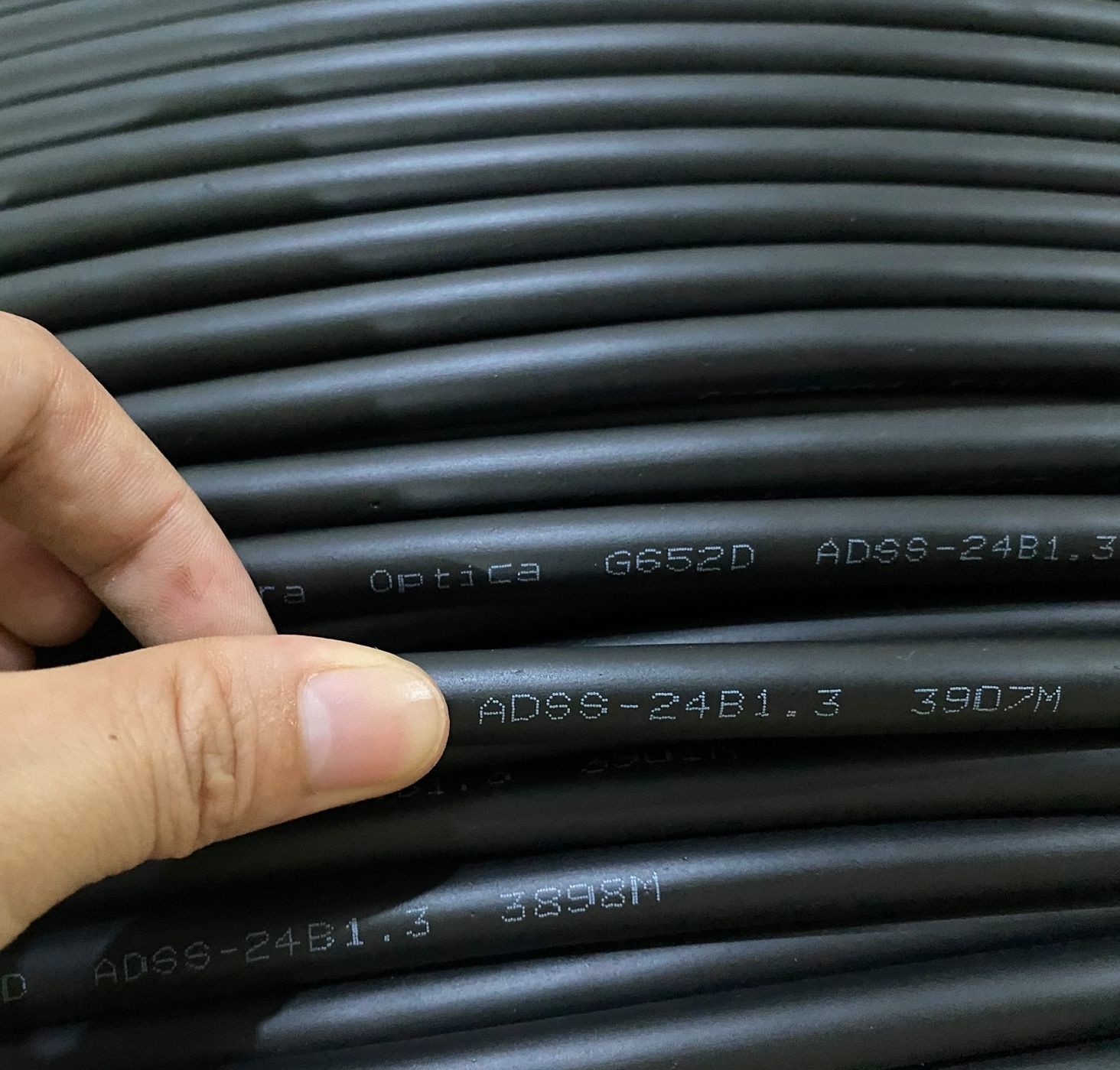

ADSS 100m Clear Span S/S 12/24/48/96/144 Core Fiber Optic Cable 2

Company profile:

Guangzhou Jiqian fiber optical cable co., LTD is a professional manufacturer of fiber optic cable,it provide a wide range of outdoor/indoor fiber optic cable,ftth drop cable,fiber patch cord with ISO9001/FCC/ROHS/CE International certifications,it's located in Guangzhou city,China
We OEM or design any structure of fiber optic cable for you.

ADSS 100m Clear Span S/S 12/24/48/96/144 Core Fiber Optic Cable 5
