Name: ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: ADSS 48B1
Price: 168.32 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou China

Brand Name: Jiqian

Number Of Conductors: ≥ 10

Strength Member: FRP

Storage/operating Temperature:: -40 To +70 °C

Application: Overhead

OEM: Yes

Manufacturer: Yes

Structure: Stranded Loose Tube

Package: Plywood Drum

Highlight:

100m Outdoor Fiber Optic Cable

ADSS Outdoor Fiber Optic Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO9001 ROHS CE FCC

Model Number: ADSS 48B1

Payment & Shipping Terms

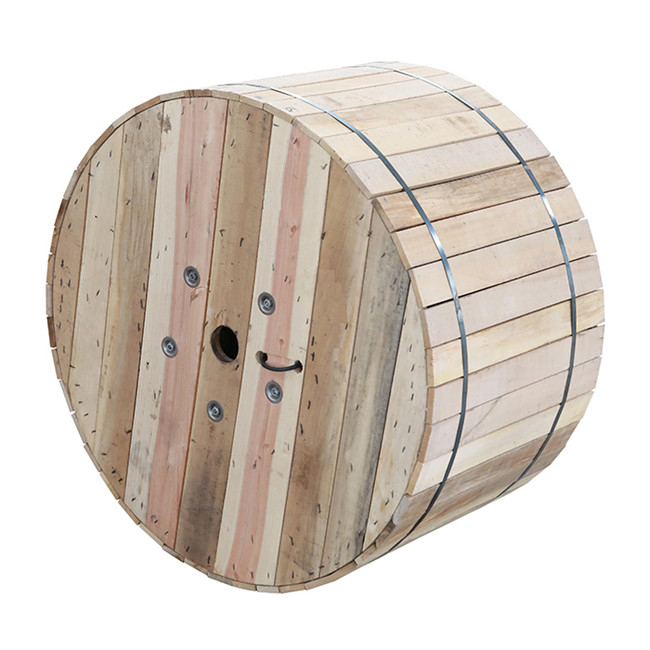

Packaging Details: Plywood drum

Delivery Time: Normally 3-5 days,it depends on order quantity

Payment Terms: L/C, T/T, Western Union,Alipay

Supply Ability: 6000km per month

Gallery

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic

Product Description

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic 0

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic 1

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic 2

ADSS Self-supporting Span 100m Outdoor Fiber Optic Cable 24 48 96 Cores Fiber Optic 3

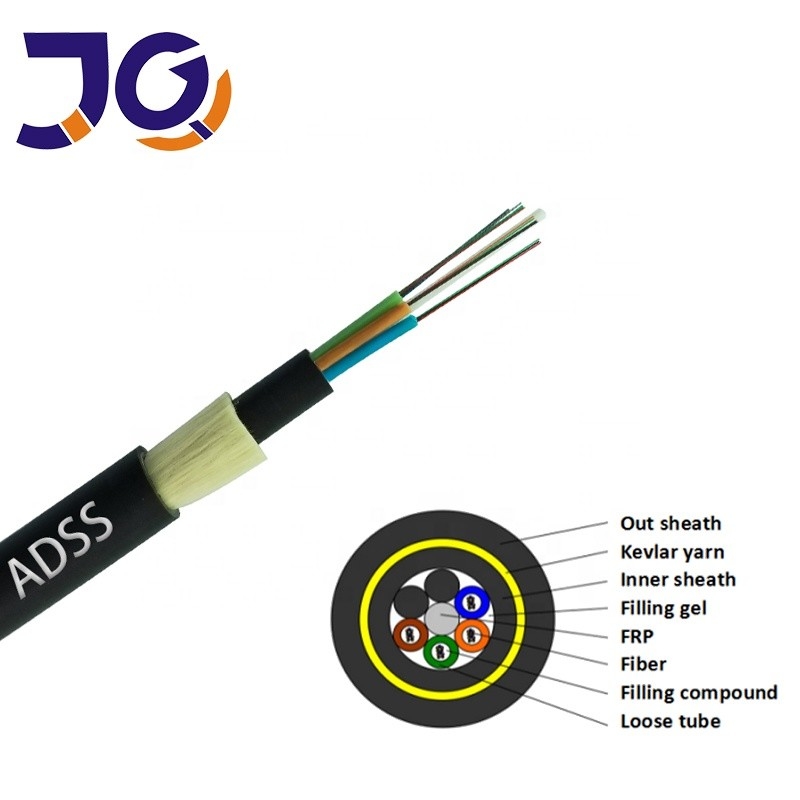

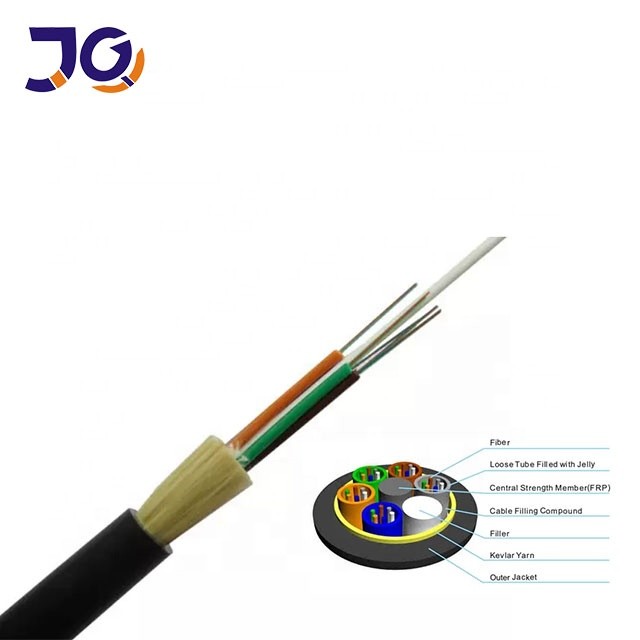

Cable Performance

Item	Contents	Value
Item	Contents	6/12/24	48	72	96
Structure	Type	1+6	1+6	1+8	1+12
Loose tube	Max Fiber counts/tube	6	12	12	12
Loose tube	Outer diameter (mm)	1.9±0.1	2.2±0.1	2.2±0.1	2.2±0.1
Central strength member	Material	FRP
	Diameter (mm)	1.4	1.6	2.0	2.2
	PE layer diameter (mm)	--	--		3.5
Peripheral strength member	Material	FRP
Sheath	Material	HDPE
	Color	Black
	Thickness (mm)	Nominal: 1.6
Cable diameter(mm) Approx.		9.8±0.2	10.0±0.2	10.5±0.3	11.8±0.3
Cable weight(kg/km) Approx.		85	89	99	124

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
Mode field diameter	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable

3.CE/ROSH/FCC/ISO9001 Certifications

4.Exporting fiber optic cable to all over the world

FAQ:

1.Are you a manufacturer or trade company?

Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?

Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001/CE/ROHS/FCC

6.What is your delivery time?

Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?

Corning,YOFC ,Fiberhome

8.What is your payment method?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your requirements
