Product Description

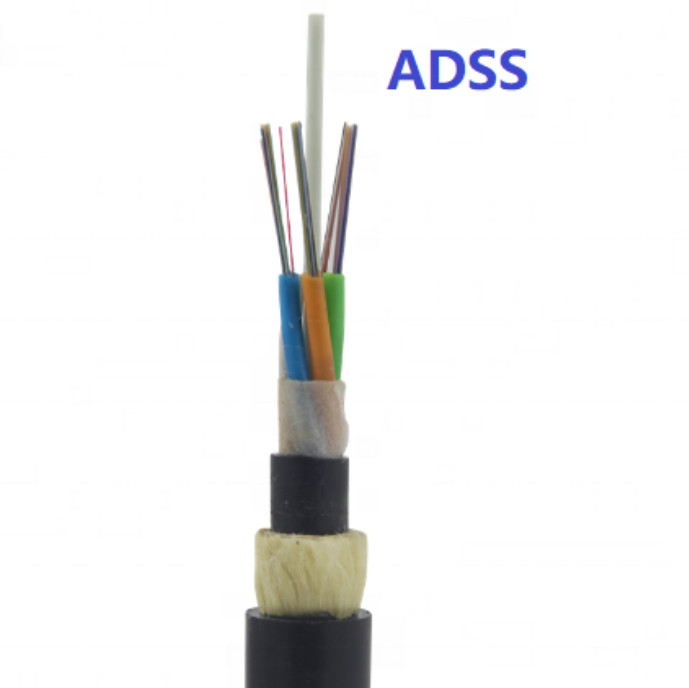

Aerial 48 Cores singlemode G652 ADSS Fiber Optic Cable
ADSS destricption
1.ADSS cable is positioned into a loose tube made of high modulus plastics.
2.The tubes are filled with a water-resistant filling compound.
3.The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
5.After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.
Features
1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstanding
2. mechanical and environmental performance. 3. Non-metallic construction makes the cable resist the electromagnetic interference well.
4. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for
different weather conditions and different installation spans.
5. Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.

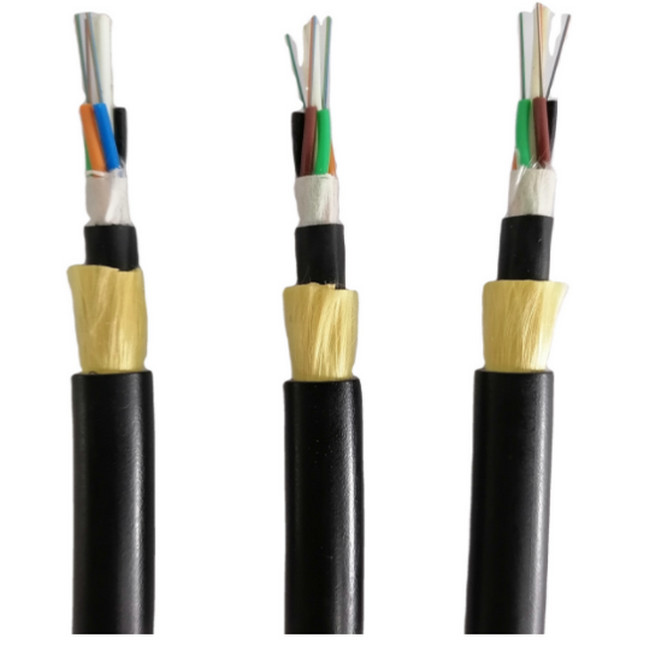

Details picture shows

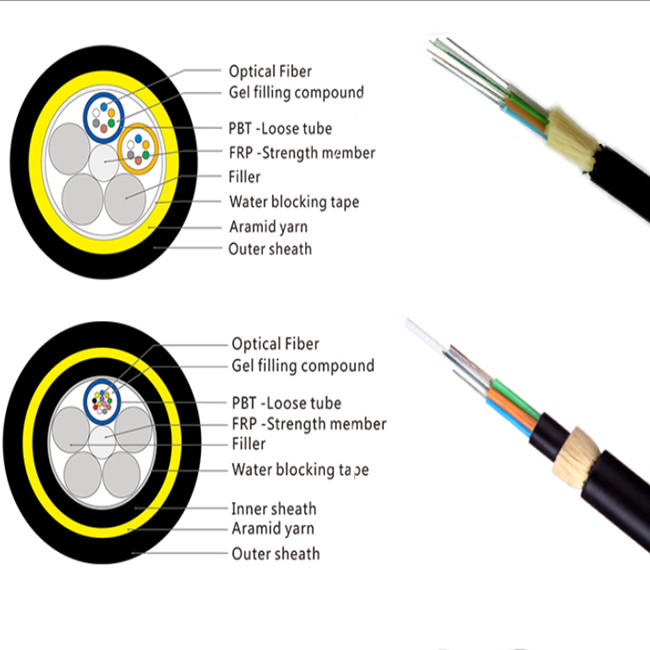

Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.9±0.1 |
2.0/2.0 |
1.7 |
9.8±0.2 |
82 |
92 |
| 6 |
1+6 |
6 |
1.9±0.1 |
2.0/2.0 |
1.7 |
9.8±0.2 |
82 |
92 |
| 8 |
1+6 |
4 |
1.9±0.1 |
2.0/2.0 |
1.7 |
9.8±0.2 |
82 |
92 |
| 12 |
1+6 |
6 |
1.9±0.1 |
2.0/2.0 |
1.7 |
9.8±0.2 |
82 |
92 |
| 24 |
1+6 |
6 |
2.0±0.1 |
2.0/2.0 |
1.7 |
9.8±0.2 |
85 |
95 |
| 48 |
1+6 |
12 |
2.0±0.1 |
2.0/2.0 |
1.7 |
10.0±0.2 |
88 |
98 |
| 72 |
1+6 |
12 |
2.2±0.1 |
2.0/2.0 |
1.7 |
10.5±0.2 |
98 |
108 |
| 96 |
1+8 |
12 |
2.2±0.1 |
2.0/3.4 |
1.7 |
12.0±0.2 |
123 |
135 |
| 144 |
1+12 |
12 |
2.2±0.1 |
3.0/7.2 |
1.7 |
15.2±0.2 |
175 |
188 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.9±0.1 |
2.0/2.0 |
1.7 |
12.0±0.2 |
125 |
135 |
| 6 |
1+6 |
6 |
1.9±0.1 |
2.0/2.0 |
1.7 |
12.0±0.2 |
125 |
135 |
| 8 |
1+6 |
4 |
1.9±0.1 |
2.0/2.0 |
1.7 |
12.0±0.2 |
125 |
135 |
| 12 |
1+6 |
6 |
1.9±0.1 |
2.0/2.0 |
1.7 |
12.0±0.2 |
125 |
135 |
| 24 |
1+6 |
6 |
2.0±0.1 |
2.0/2.0 |
1.7 |
12.0±0.2 |
128 |
138 |
| 48 |
1+6 |
12 |
2.0±0.1 |
2.0/2.0 |
1.7 |
12.5±0.2 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2±0.1 |
2.0/2.0 |
1.7 |
13.2±0.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2±0.1 |
2.0/3.4 |
1.7 |
14.5±0.2 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2±0.1 |
3.0/7.2 |
1.7 |
16.5±0.2 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
--- |
Application: Self-supporting overhead

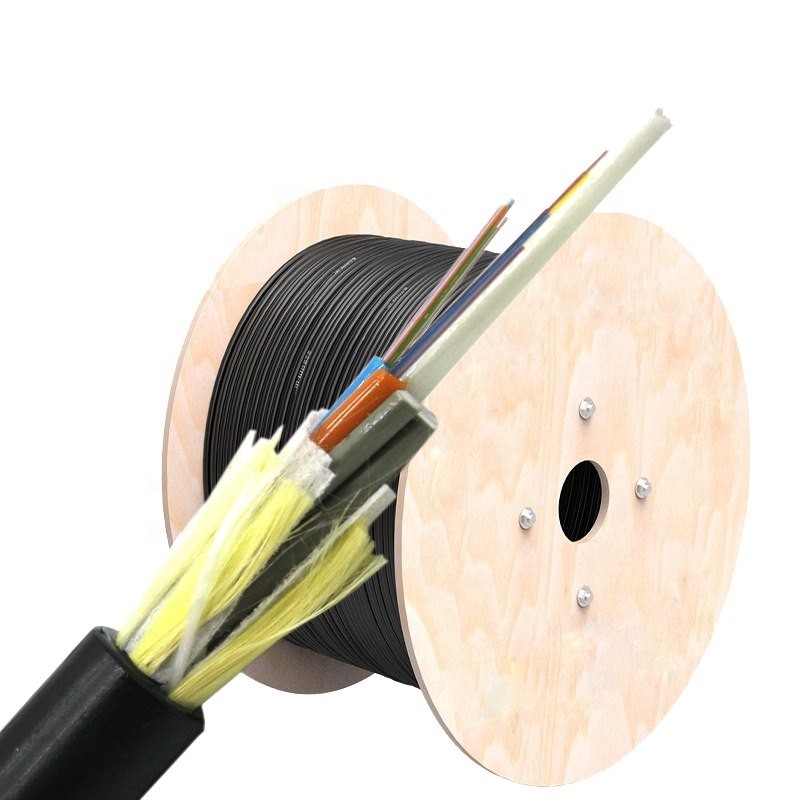

Packing:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 10km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
