Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou | Brand Name: | Jiqian/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | ADSS-24B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC/Fiberhome | Fiber Count: | 4/6/8/12/24/48/72/96/144 Core |
|---|---|---|---|
| Length: | 4km/roll | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP/Armid Yarn | Span: | 100m |
| Installation: | Aerial | Fillers: | PP |
| Outer Sheath: | PE Or AT (anti-tracking) | Outer Diameter: | 9.8mm |
| High Light: | ADSS Fiber Optic Cable,100M ADSS Fiber Optic Cable |
||
Product Description
ADSS Fiber Optic Cable 24F 100M Span Aerial Fiber Optic ADSS Cable
ADSS Fiber Optic Cable

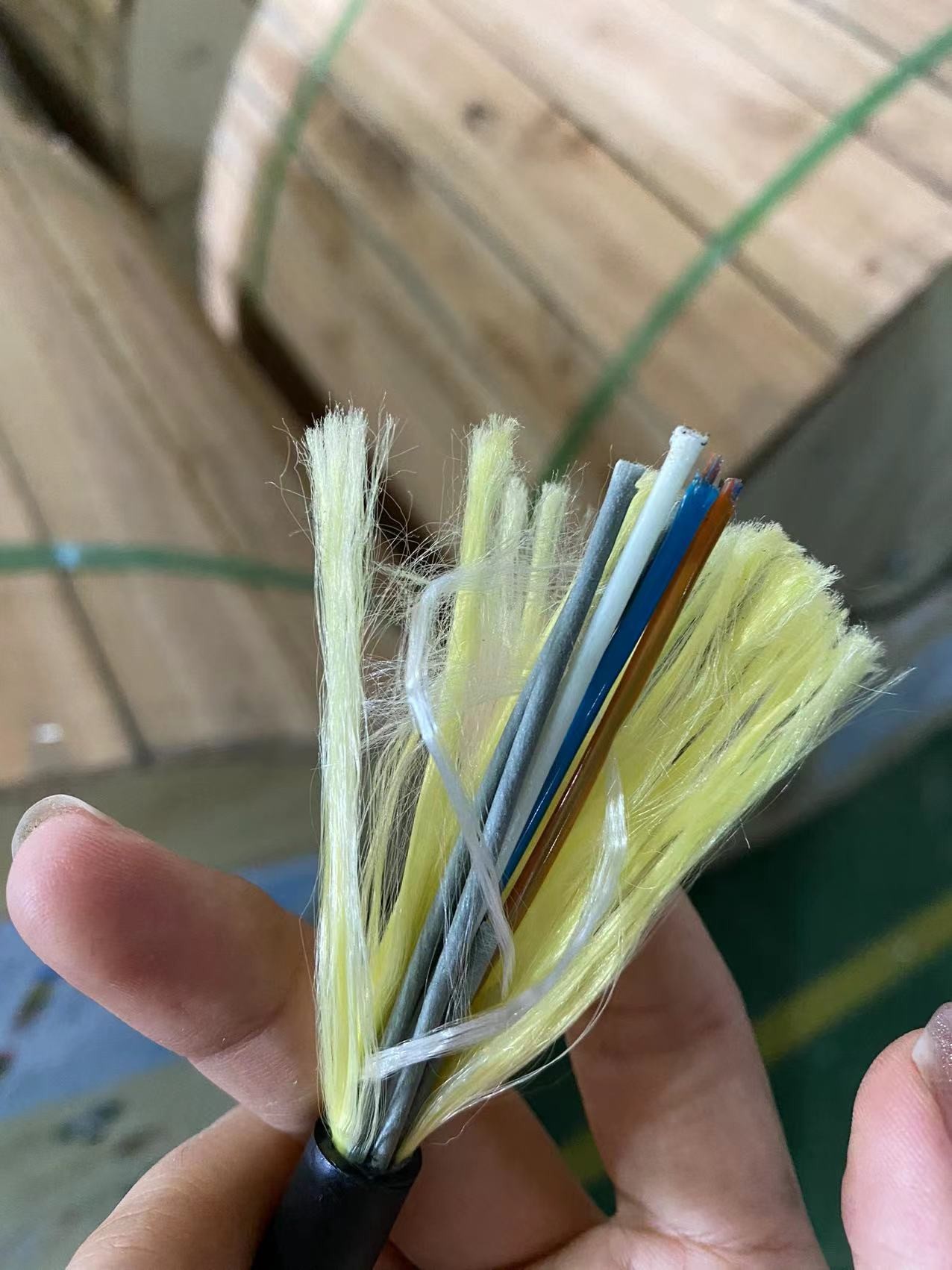

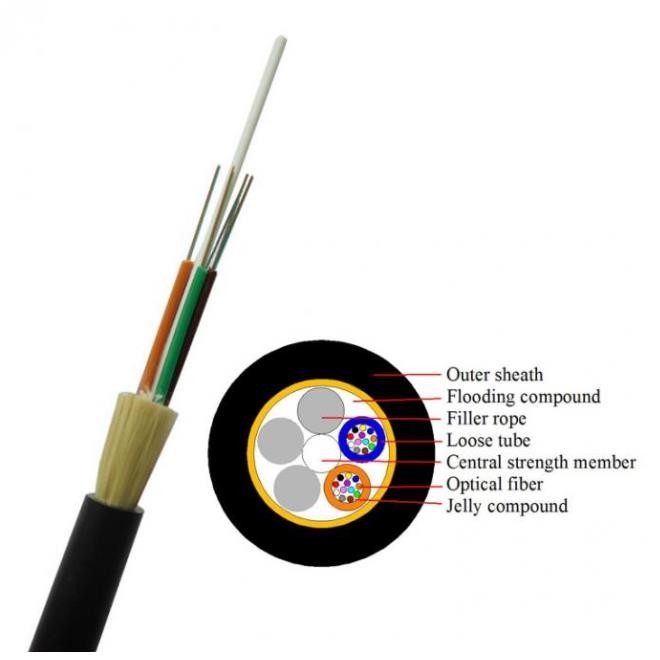

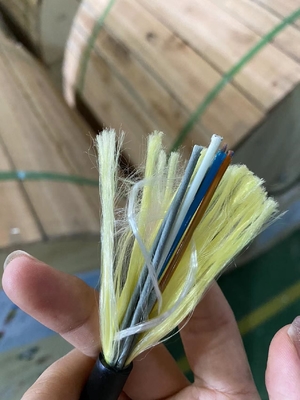

ADSS cable is stranded loose tube cable. A loose tube constructed of high modulus polymers is filled with 250μm fibers. A water-resistant filling material is used to fill the tubes. The tubes (and fillers) are stranded into a compact and circular cable core around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength part. After the filling compound has been applied to the cable core. It has a thin PE inner shell covering it. The ADSS Fiber Optic Cable is finished with a PE or AT (anti-tracking) outer sheath after a stranded layer of aramid yarns is put over the inner sheath as a strength member.
● Electric utility transmission and distribution power lines – Typically framed under conductors
● Enterprise OSP networks
● Fiber-to-the-X networks
● Aerial networking system

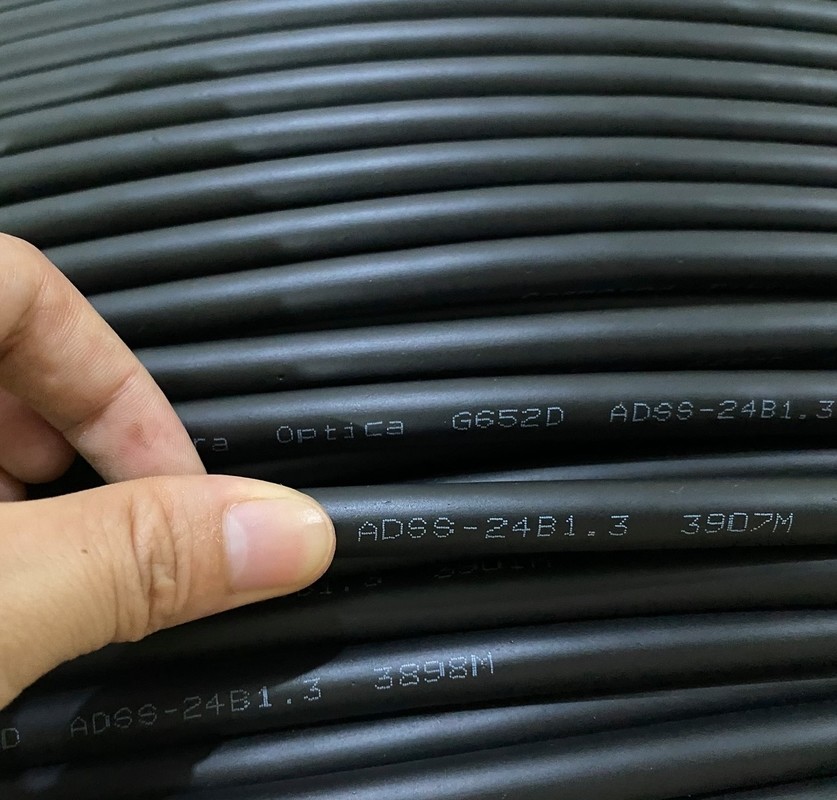

Cable printing : can be customize as customer's requirment
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Packaging
4km per plywood drum or customized
Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable
