China Cable Supplier ADSS Single Jacket 48 Core Single or Multi Mode FRP 1.5mm 100m Span Length Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 10km | Price : | base on fiber specifications |
|---|---|---|---|
| Packaging Details : | Wooden reel | Delivery Time : | about 11 working days |
| Payment Terms : | T/T, Western Union,Alipay | Supply Ability : | 1000KM per day |
| Place of Origin: | China guangdong | Brand Name: | JQ |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS FCC | Model Number: | ADSS-4/12/24/48F |
|
Detail Information |
|||
| Application: | Overhead/aerail | Fiber Counts: | 4/8/12/24/36/48/72/96/144c |
|---|---|---|---|
| Span: | 80/100/200/300/500M | Fiber Per Tube: | 4/6/8/12F |
| OEM: | Avalible | Strength Number: | FRP |
| Structure: | Stranded Loose Tube With Filler (if Needed) | Jacket Color: | Black/red/blue |
| Operating Temperature: | -40℃ To +60℃ | ||
| Highlight: | Aerial Outdoor ADSS Fiber Optic Cable,HDPE ADSS Fiber Optic Cable |
||
Product Description
Aerial Outdoor 12/24/36/48 Hilos Singlemode ADSS Fiber Optic Cable With HDPE
ADSS destricption
ADSS (All dielectric self-supporting optical fiber cable) - is a special dielectric cable using an existing high voltage transmission tower
set up with the power line. It has the advantages of low engineering cost, convenient construction, high safety and easy maintenance.
Power communication cable ADSS all-media self-supporting cable is a popular cable that used all over the world.
Features
Details picture shows
single jacket ADSS fiber cable

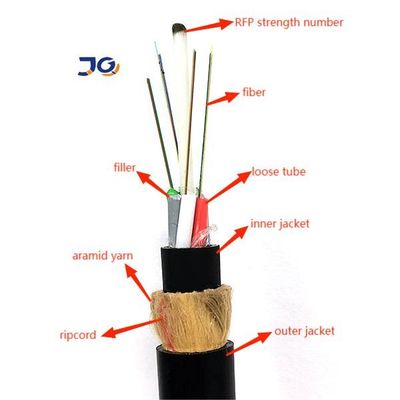

double jacket ADSS fiber optic cable
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 83 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8±0.2 | 86 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0±0.2 | 89 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5±0.2 | 99 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0±0.2 | 124 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2±0.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0±0.2 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0±0.2 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0±0.2 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0±0.2 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0±0.2 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5±0.2 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2±0.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5±0.2 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5±0.2 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |
Application: Self-supporting overhead
Packing:
FAQ
1. Q:Are you a factory or trade company?
A: We are a factory
2. Q:What is the MOQ?
A: The MOQ of Fiber Optic cable is 15km.
3. Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,CORNING ,etc
4. Q:Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.
5. Q:What’s delivery time?
A: The general delivery time is 10 days after order confirmed. It depends on the order quantity.
6. Can you supply customized products and logo?
A:Yes. We supply OEM service.
7. what is your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
