Overhead Single Double Jacket Multi Cores ADSS Fiber Optic Cable 80m

Minimum Order Quantity : 8km Packaging Details : Wooden drum or Customized
Delivery Time : about 10 working days Payment Terms : T/T, Western Union,Alipay
Supply Ability : 1000KM per day
Place of Origin: China guangdong Brand Name: Jiqian /OEM
Certification: ISO9001 CE ROHS Model Number: ADSS

Detail Information

Application: Outdoor Aerial Fiber Counts: 1-144 Core
Span: 80m 100m Or Customerized Fiber Per Tube: 4/6/8/12/24F
OEM: YES Strength Number: Fiber Rainforce Plastics
Structure: Stranded Loose Tube With Filler (if Needed) Jacket Color: Black Or Customized
Operating Temperature: -40℃ To +70℃ Fiber Type: G652D, OM3, G657A2, 50/125
Highlight:

Overhead ADSS Fiber Optic Cable

,

80m ADSS Fiber Optic Cable

Product Description



overhead Outdoor singlejacket multi cores Singlemode ADSS Fiber Optic Cable



ADSS destricption

ADSS (All dielectric self-supporting optical fiber cable) - is a special dielectric cable using an existing high voltage transmission tower

set up with the power line. It has the advantages of low engineering cost, convenient construction, high safety and easy maintenance.

Power communication cable ADSS all-media self-supporting cable is a popular cable that used all over the world.



Features

1.  Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstandingmechanical and environmental performance.
2.  Non-metallic construction is convinence for cable laying without cutoff the power systems .
3.  High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for
     different weather conditions and different installation spans.
4.  Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.



Structure and Technical Specifications



1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+6 4 1.9 2.0/2.0 1.7±0.1 9.8 83 93
6 1+6 6 1.9 2.0/2.0 1.7±0.1 9.8 83 93
8 1+6 4 1.9 2.0/2.0 1.7±0.1 9.8 83 93
12 1+6 6 1.9 2.0/2.0 1.7±0.1 9.8 83 93
24 1+6 6 2.0 2.0/2.0 1.7±0.1 9.8 86 96
48 1+6 12 2.0 2.0/2.0 1.7±0.1 10.0 89 99
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 99 109
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 124 136
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.



2. ADSS double jacket



fiber count structure fiber per tube

losse tube diameter

(MM)

FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+6 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+6 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+6 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+6 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+6 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+6 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows

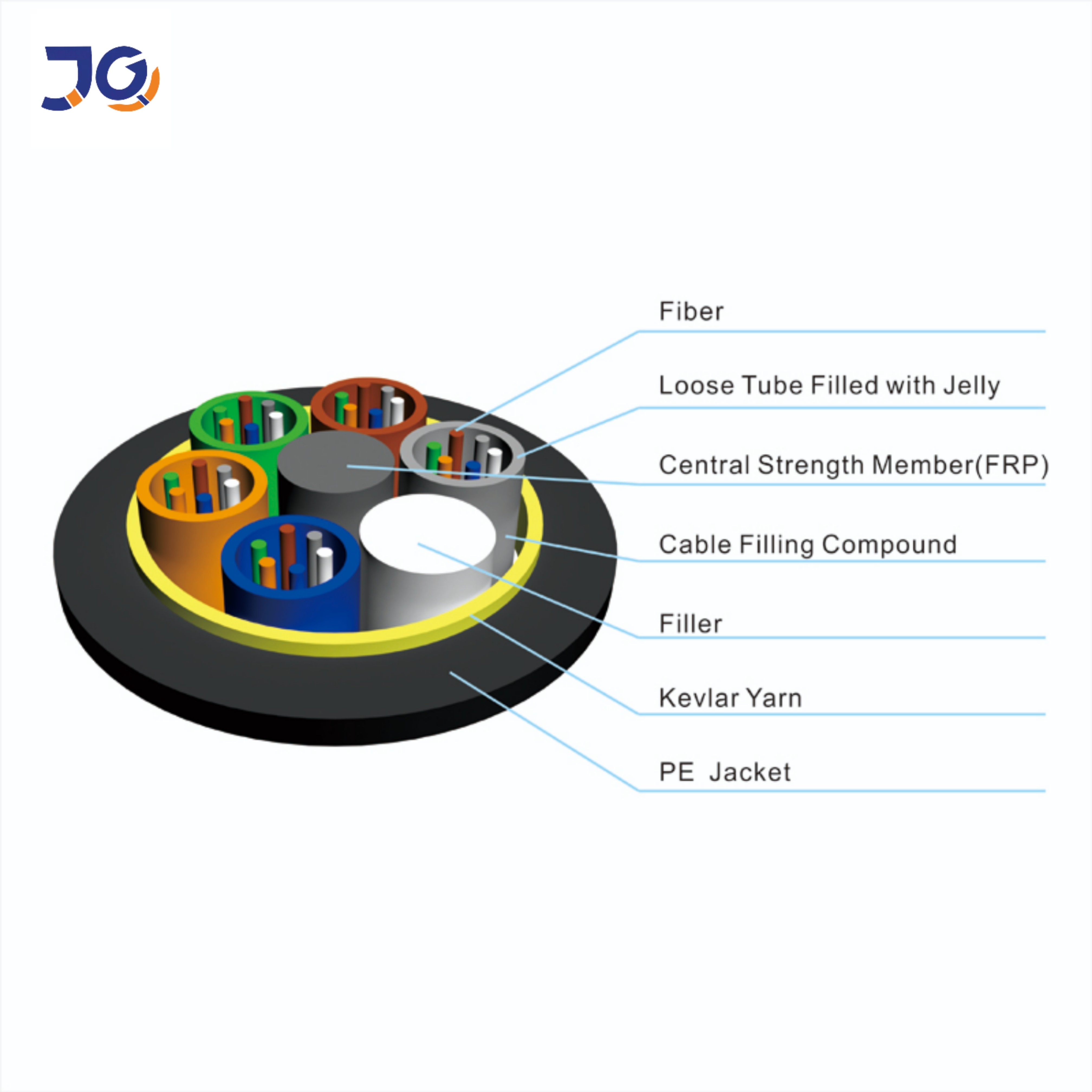

Overhead Single Double Jacket Multi Cores ADSS Fiber Optic Cable 80m 0



                                                 single jacket ADSS fiber cable

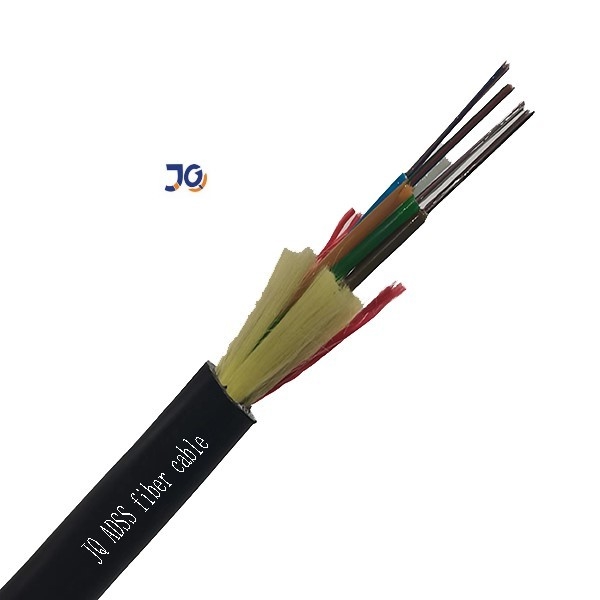

Overhead Single Double Jacket Multi Cores ADSS Fiber Optic Cable 80m 1



                                               double jacket ADSS fiber optic cable

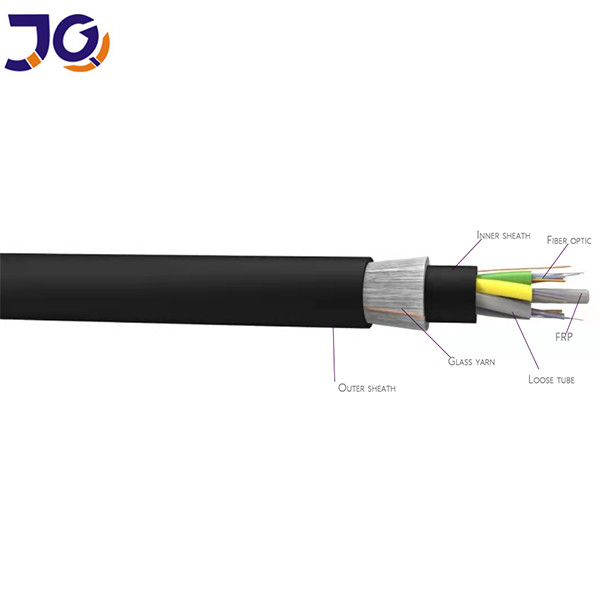

Overhead Single Double Jacket Multi Cores ADSS Fiber Optic Cable 80m 2

Application of Fiber Optic Cable

1. LAN, WAN and Metro Networks

2. FTTH project & FTTX Deployments

3. CATV System

4. GPON, EPON

5. Fiber Optic Test Equipment

6. Data-base Transmit Broadband Net



  • Telecommunication networks
  • Data centers
  • 40G to 10G transition
  • CATV;
  • Active device termination;
  • Metro;
  • Local Area Networks;
  • Data processing networks
  • Test equipment;
  • Premise installation;
  • Wide Area Networks





Packing:

Overhead Single Double Jacket Multi Cores ADSS Fiber Optic Cable 80m 3



1. Are you factory direct?

as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.

Our products are mainly exported to Europe, South America, and some other countries and areas.



2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord



3. Product quality guarantee period?

20 years Guarantee for fiber optic cable



4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
