Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 5km | Packaging Details : | Wooden drum or Iron drum |
|---|---|---|---|
| Delivery Time : | 12 days | Payment Terms : | T/T, Western Union,Alipay, MoneyGram |
| Supply Ability : | 20000KM per month |
| Place of Origin: | Guangdong China | Brand Name: | JQ/Customized |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS Rohs | Model Number: | ADSS-4F/12F /24F/48F/96fF |
|
Detail Information |
|||
| Application: | Telecommunication | Fiber Counts: | 4-288 Cores |
|---|---|---|---|
| Span: | 50m 100m /200 M /300m /400m | Fiber Per Tube: | 4/6/8/12/24/48/96F |
| Sample: | Acceptable | Strength Number: | FRP, Kevlar Aramid Yarn |
| Structure: | Stranded Loose Tube | Jacket Color: | Black Yellow Bule Or Customized |
| Operating Temperature: | -40℃ To +70℃ | Fiber Type: | G652D, OM3, G655, OM4, OM5 |
| High Light: | Single Mode Power Optical Fiber Cable,144 Core Power Optical Fiber Cable |
||
Product Description
overhead Outdoor singlejacket multi cores Singlemode ADSS Fiber Optic Cable
ADSS destricption
Optic Cable ADSS

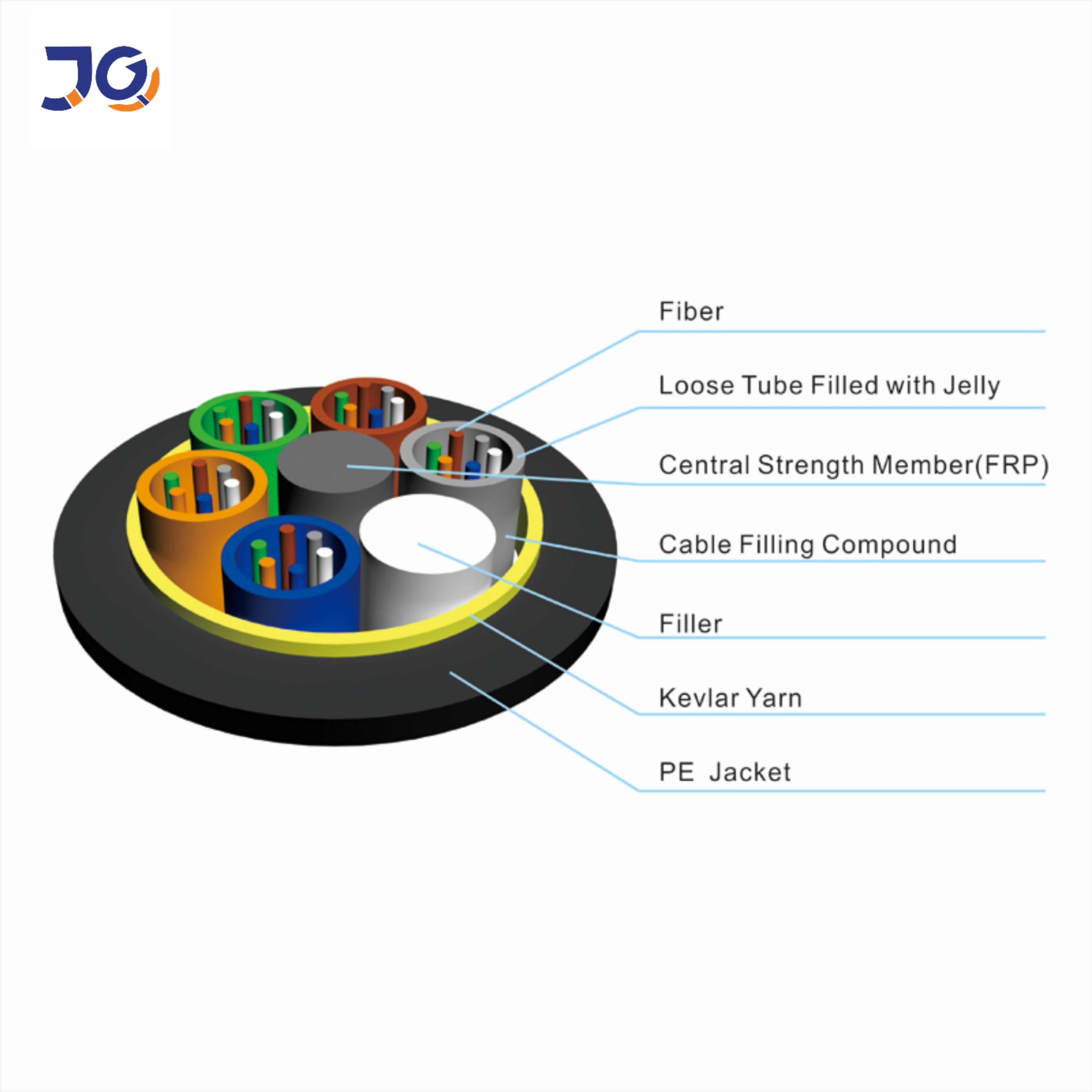

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded
around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress.
The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completedwith a PE sheath.
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV,
PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding
process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |

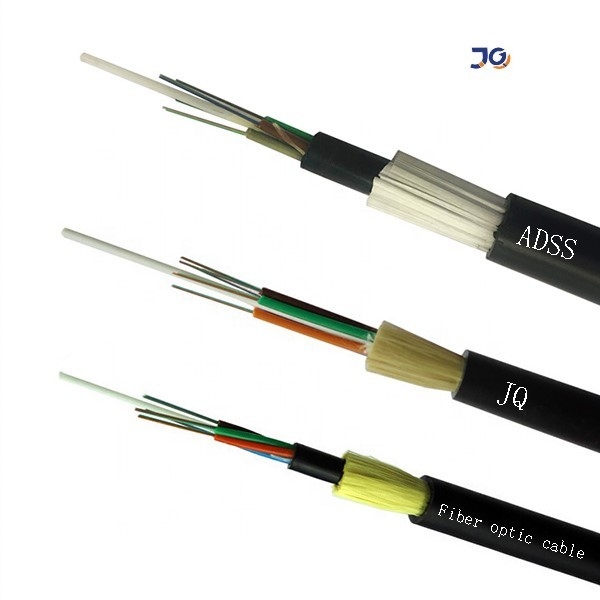

Details picture shows
single jacket ADSS fiber cable
double jacket ADSS fiber optic cable

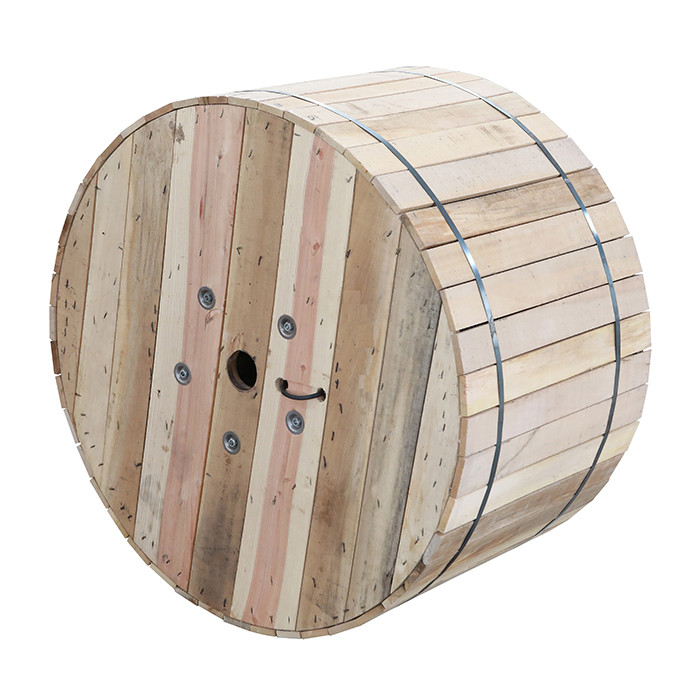

Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
