Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 20km | Packaging Details : | Wooden drum or Iron drum |
|---|---|---|---|
| Delivery Time : | 13 days | Payment Terms : | T/T, Western Union,Alipay, MoneyGram, L/C |
| Supply Ability : | 21500KM per month |
| Place of Origin: | Guangzhou China | Brand Name: | HAISO/JQ or Customized |
|---|---|---|---|
| Certification: | ISO9001 CE ROHS Rohs | Model Number: | ADSS-4C/6C/24C/48C/96C |
|
Detail Information |
|||
| Application: | Outdoor Aerial | Fiber Counts: | 2-432 Cores |
|---|---|---|---|
| Span: | 50m 80m /100m/200 M /300m /400m | Fiber Per Tube: | 4/6/8/12F |
| Sample: | Provide | Strength Number: | FRP, Kevlar Aramid Yarn |
| Structure: | Stranded Loose Tube | Jacket Color: | Black Or Customized |
| Operating Temperature: | -40℃ To +75℃ | Fiber Type: | G652D, OS1,OM1, G655, OM4, OM5 |
| High Light: | 144 Core Single Mode Fiber Cable,Outdoor ADSS Single Mode Fiber Cable,3KM Single Mode Fiber Cable |
||
Product Description
no menta All Dieletric Self-Supporting ADSS singlemode Fiber Optic Cable HDPE Sheathed with yarn
ADSS destricption
Optic Cable ADSS All-dielectric Self-supporting Optical Cable (also known as All-dielectric Self-supporting optical cable).
With a kind of all-medium (no metal) optical cable independently along the transmission line frame hanging in the power wire inside
(hanging position is mainly based on the suspension of electric field strength, ground distance, construction and maintenance convenience conditions
and other factors, currently more is hanging in the power wire below), used to form the optical fiber communication network on the power line, the cable is called ADSS.
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV,
PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding
process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.5 | 80 | 90 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.5 | 80 | 90 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.5 | 80 | 90 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.5 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube |
losse tube diameter (MM) |
FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | --- |

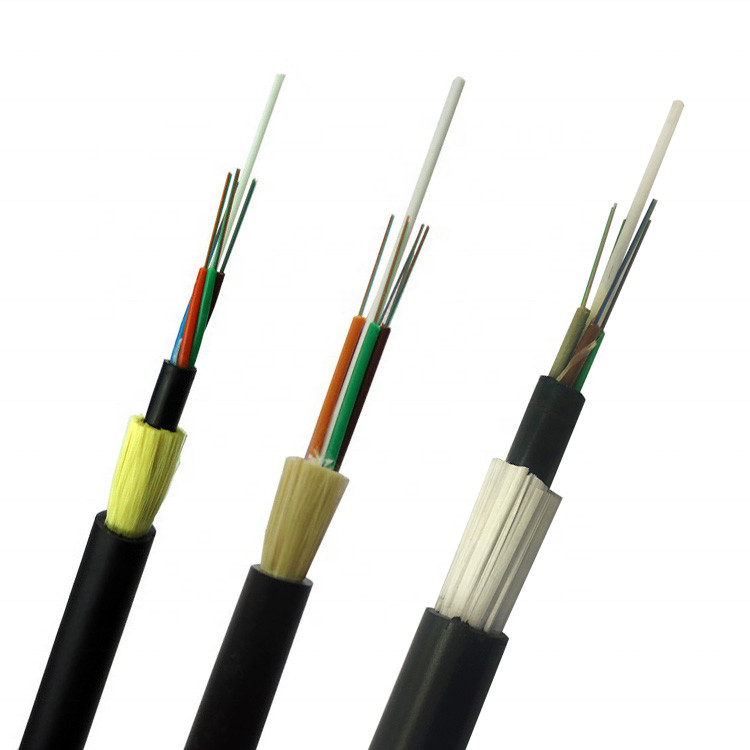

Details picture shows

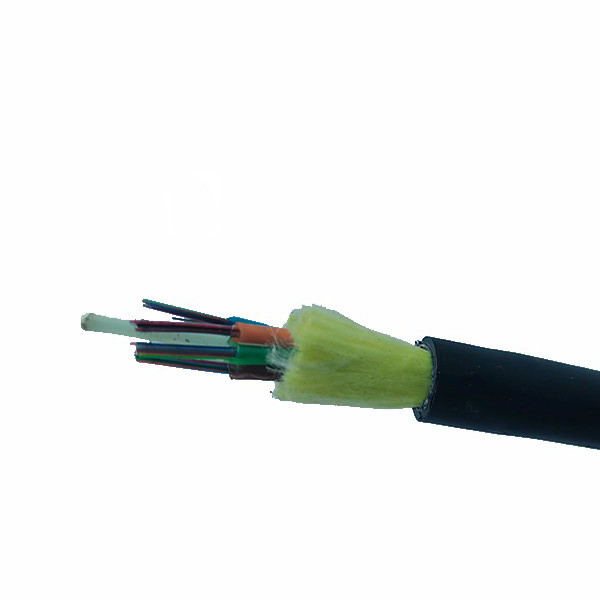

single jacket ADSS fiber cable
double jacket ADSS fiber optic cable

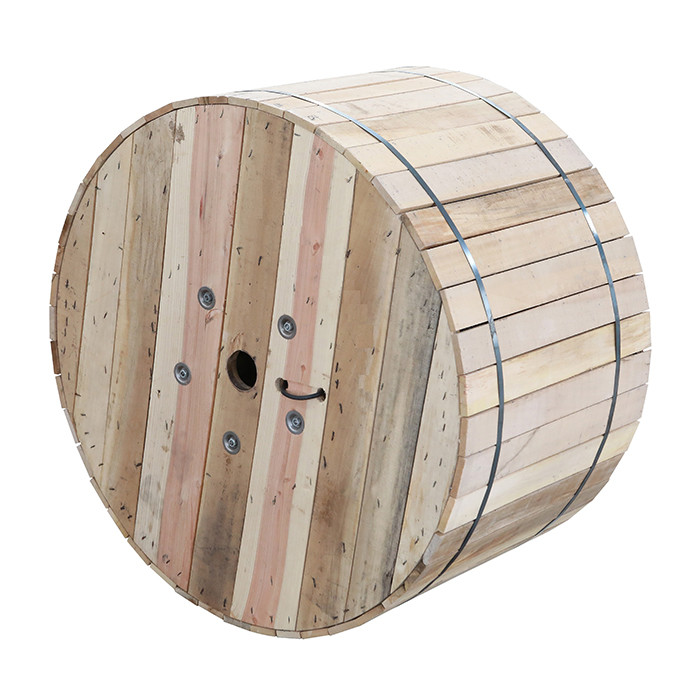

Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
