GYTS 24core Duct Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553

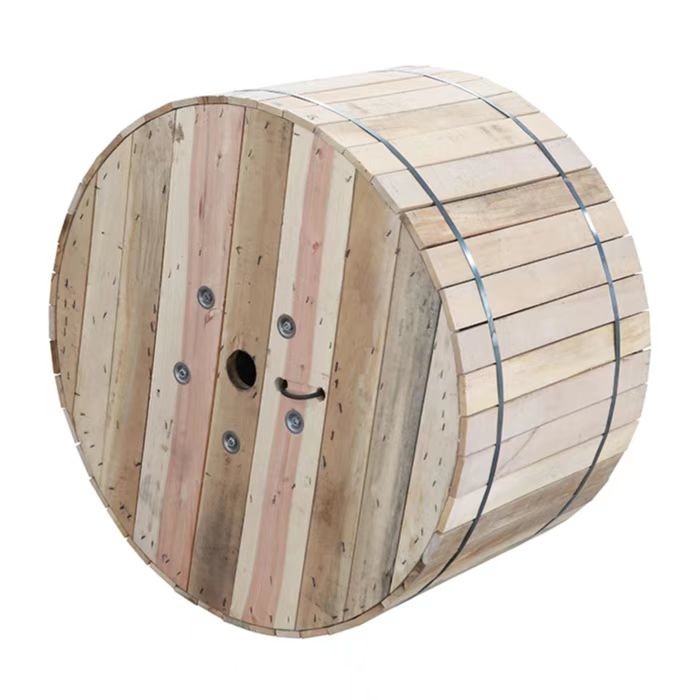

| Minimum Order Quantity : | 5km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 10 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 45000KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001, FCC, ROHS/CE | Model Number: | GYTS-12/24/48F |
|
Detail Information |
|||
| Fiber Brand: | YOFC/Fiberhome/ Corning | Color: | Black |
|---|---|---|---|
| Jacket Metarial: | PE,MDPE | Strength Member: | Steel Wire |
| Fiber Count: | 2-288 Cores | Installation: | Aerial & Duct |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey | Armored: | Steel Tape |
| Product Name: | Outdoor Optic Fiber Cable | Application: | Network |
Product Description
Product Description
GYTS outdoor fiber optic cable is used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 144 cores. A related GYTA type cable is available. GYTS fiber optic cable featuer the good mechanical and temperature performance. Its tube filling compound to ensure a critical fiber protection. PE sheath protects cable from ultraviolet radiation.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.

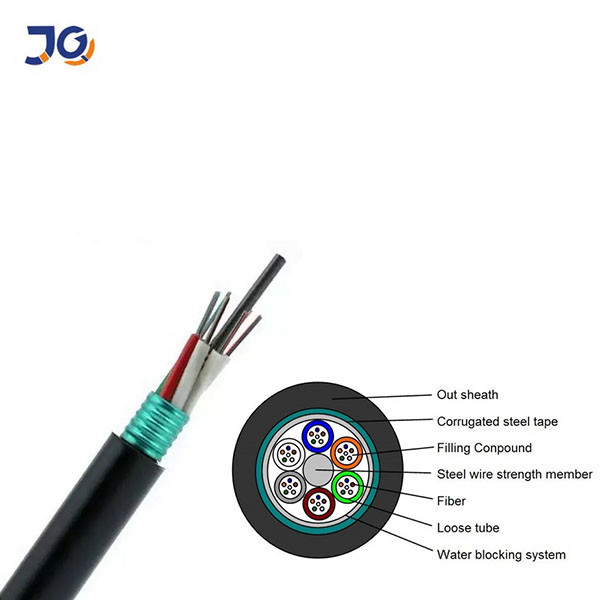

The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Applications:
• Adopted to Outdoor distribution.
• Suitable for aerial .pipeline laying method.
• Long distance and local area network communication.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.2 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 9.5 | 100 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.0 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 10.5 | 125 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||

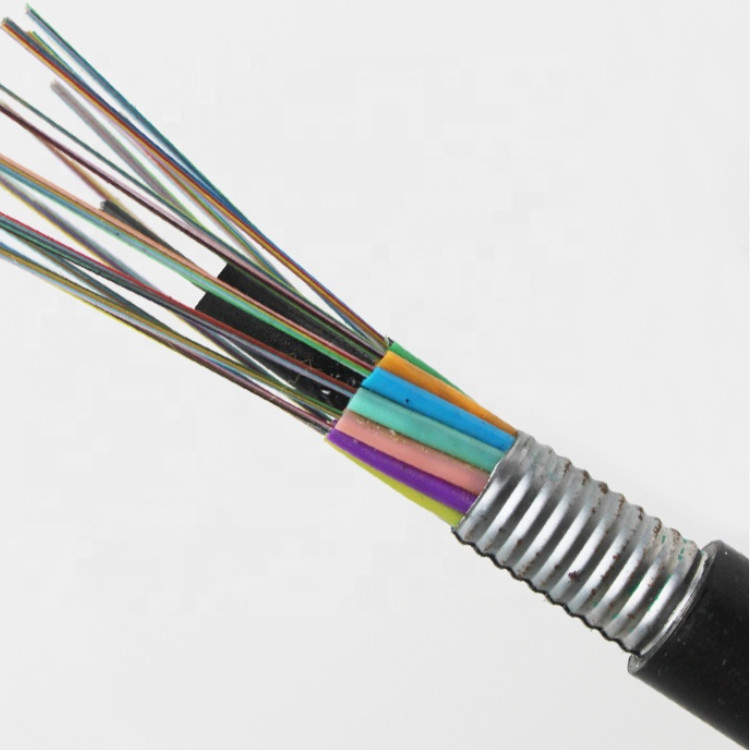

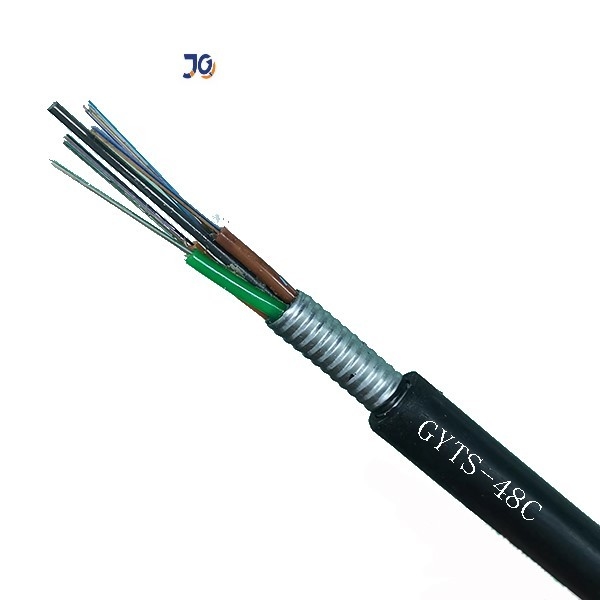

Detail product pictures
