Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum/customized |
|---|---|---|---|
| Delivery Time : | 2-4days | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per Month |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO9001/CE | Model Number: | ADSS 48Core 96core 144core |
|
Detail Information |
|||
| Fiber Type: | G652D/G657A1 | Application: | Aerial |
|---|---|---|---|
| Number Of Conductors: | 12core | Structure: | Stranded Loose Tube |
| Operating Temperature: | -40 ~ +60 C | Central Strength Member: | FRP |
| Span: | 80m 100m 150m | ||
| High Light: | 96 Core ADSS Cable,1Km ADSS Cable |
||
Product Description
Technical Data:
|
Cable fiber count
|
/
|
2~30
|
32~60
|
62~72
|
|||
|

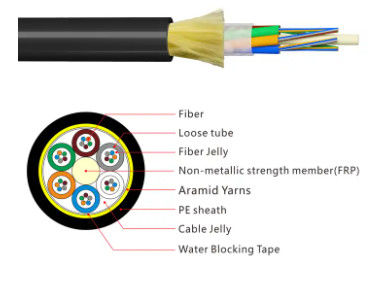

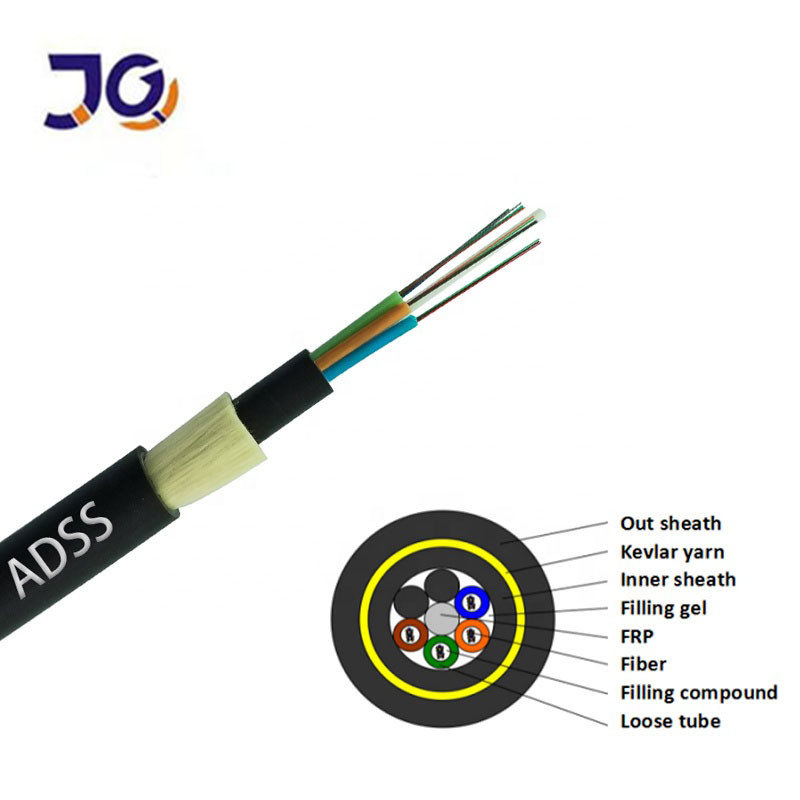

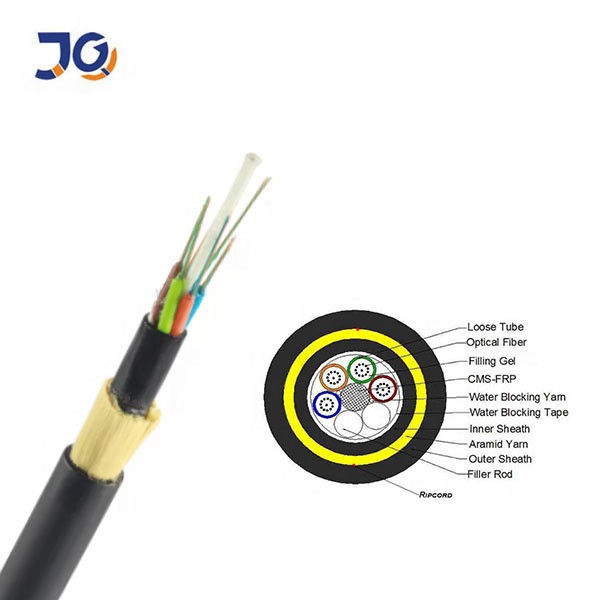

Structure
|
/
|
1+5
|
1+5
|
1+6
|
|||
|
Fiber style
|
/
|
G.652D
|
|||||
|
Central strength member
|
material
|
mm
|
FRP
|
||||
|
Diameter (average)
|
1.5
|
1.5
|
2.1
|
||||
|
Loose Tube
|
Material
|
mm
|
PBT
|
||||
|
Diameter (average)
|
1.8
|
2.1
|
2.1
|
||||
|
Thickness(average)
|
0.32
|
0.35
|
0.35
|
||||
|
Max fiber/loose tube
|
6
|
12
|
12
|
||||
|
Tubes color
|
Full color identification
|
||||||
|
Fiber excess length
|
%
|
0.7~0.8
|
|||||
|
Water resistance
|
Material
|
/
|
Cable jelly
|
||||
|
Inner sehath
|
material
|
mm
|
MDPE
|
||||
|
Inner sheath
|
0.9mm
|
||||||
|
Non-metallic strengthen components
|
Material
|
/
|
Aramid Yarn
|
||||
|
Outer sheath
|
material
|
mm
|
MDPE
|
||||
|
Outer sheath
|
1.8mm
|
||||||
|
Cable diameter(average)
|
mm
|
10.9
|
11.5
|
12.1
|
|||
|
Cable weight (Approximate)
|
kg/km
|
95
|
110
|
120
|
|||
|
Cable Sectional area
|
mm2
|
93.31
|
103.87
|
114.99
|
|||
|
Attenuation coefficient(Max)
|
1310nm
|
dB/km
|
0.35
|
||||
|
1550nm
|
0.21
|
||||||
|
Rated Tensile Strength(RTS)
|
kn
|
6
|
|||||
|
Max allowed tension( MAT)
|
kn
|
2.5
|
|||||
|
Annual average operating tension (EDS)
|
kn
|
3.2
|
|||||
|
Young's modulus
|
kn/mm2
|
7.8
|
|||||
|
Coefficient of thermal expansion
|
10-6/℃
|
9
|
|||||
|
Crush resistance
|
Long term
|
N/100mm
|
1100
|
||||
|
Short term
|
2200
|
||||||
|
Permission Bent Radius
|
static
|
mm
|
15 of OD
|
||||
|
dynamic
|
20 of OD
|
||||||

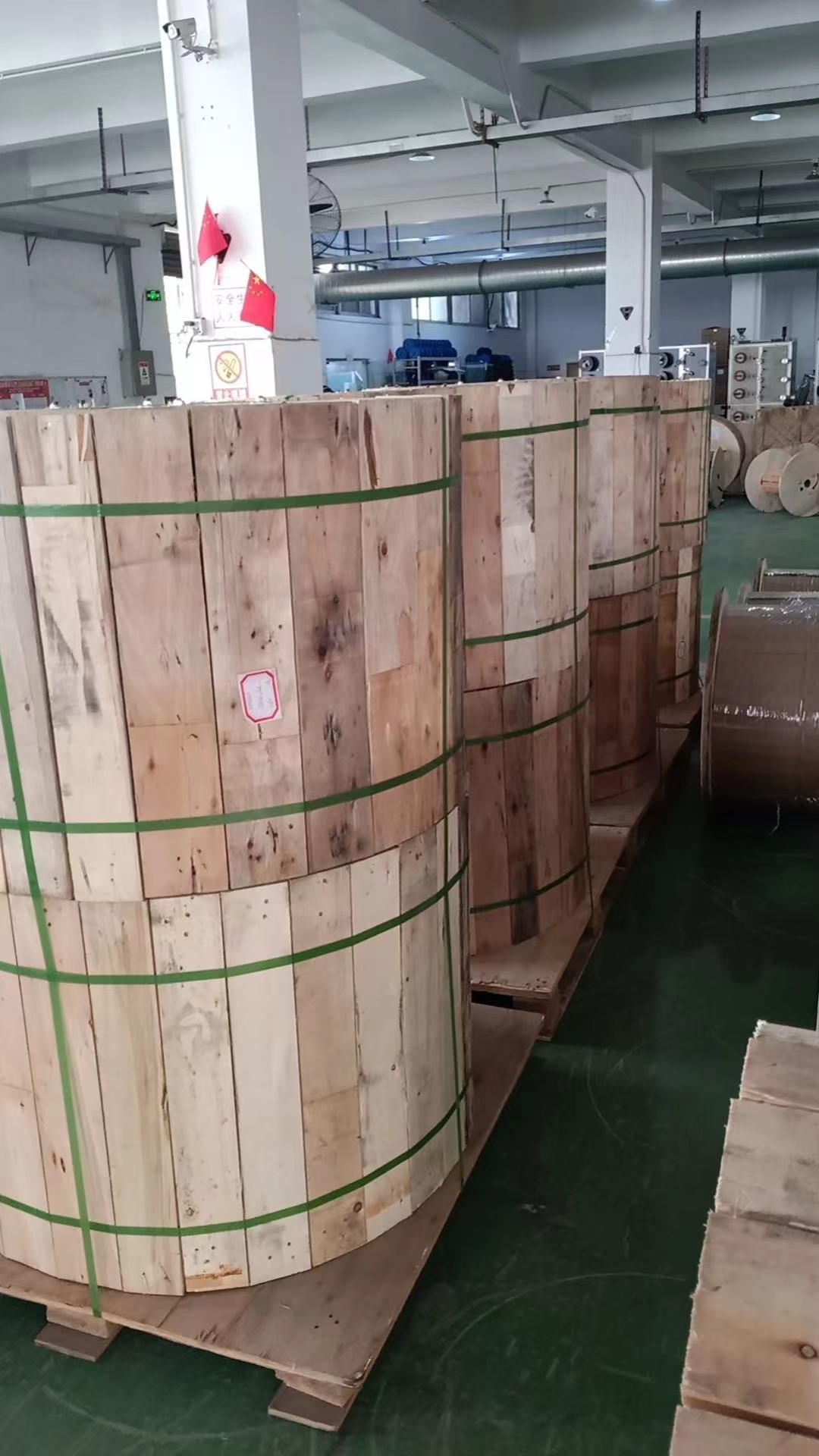

1.One wooden reel of the cable packed in a carton
The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about
