Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
Detail Information |
|||
Jacket Color: | Black | Fiber Count: | 2-144 |
---|---|---|---|
Fiber Type: | Single-mode | Storage Temperature: | -40℃~+85℃ |
Cable Span: | 100M/200M/300M/400M | Attenuation: | 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km |
Operating Temperature: | -40℃~+70℃ | Application: | Overhead |
High Light: | ADSS Fiber Optic Cable 1550nm,ADSS Fiber Optic Cable Single Mode |
Product Description
12/24/48/96/144/288FO G652D Fibra Span 80/100/150/200/250/300M
Sample is available
Aerial application
Name | Parameter |
---|---|
Jacket Color | Black |
Cable Span | 100M/200M/300M/400M |
Cable Diameter | 9.7mm |
Storage Temperature | -40℃~+85℃ |
Cable Length | 1km/2km/3km/4km/5km |
Jacket Material | PE |
Name | ADSS Fiber Optic Cable |
Tensile Strength | Long-term: 200N/Short-term: 600N |
Bending Radius | Static: 10D/Dynamic: 20D |
Application | Overhead |

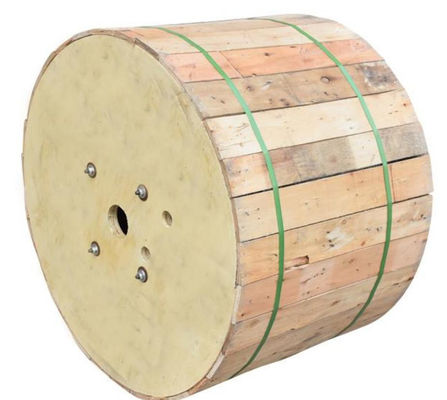

ADSS fiber optic cable should be packaged and shipped in accordance with the following guidelines:
