Single Mode G.652D 2-144 Fibers 1km-5km Length Fiber Optic Cable

Single Mode G.652D 2-144 Fibers 1km-5km Length Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Name: ADSS Fiber Optic Cable
Cable Length: 1km/2km/3km/4km/5km
Jacket Material: PE
Fiber Type: Single-mode
Cable Span: 100M/200M/300M/400M
Operating Temperature: -40℃~+70℃
Jacket Color: Black
Bending Radius: Static: 10D/Dynamic: 20D
Highlight:

5km Length Fiber Optic Cable

,

G.652D Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ
Model Number: ADSS
Payment & Shipping Terms
Product Description

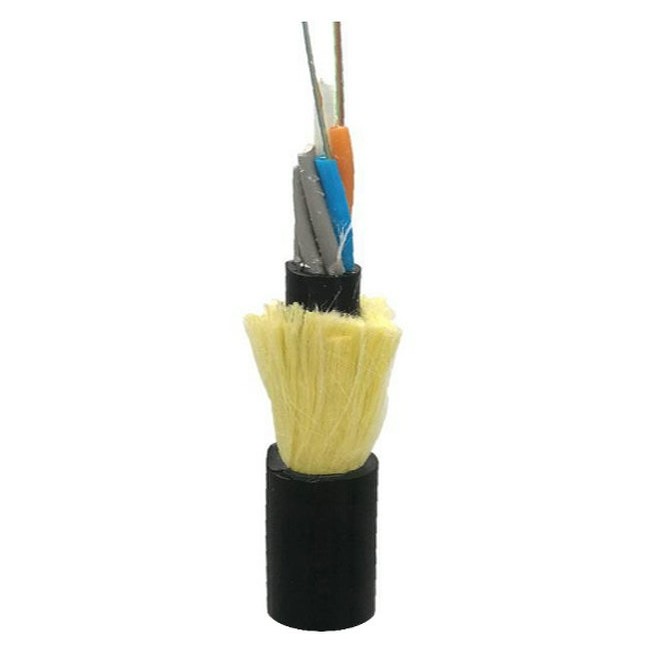

Single Mode G.652D 2-144 fibers 1km-5km Length Fiber Optic Cable

Product Description:

MODEL: ADSS-24B1.3
Fiber: SM G652D

Strengthen: Aramid Yarn

Jacket Diameter: 9.8mm
Jacket Material: HDPE
Cable Length: 4Km/Drum
Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature: -20℃ to +60℃


Features:

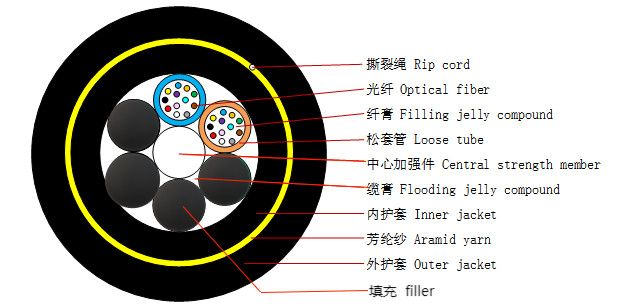

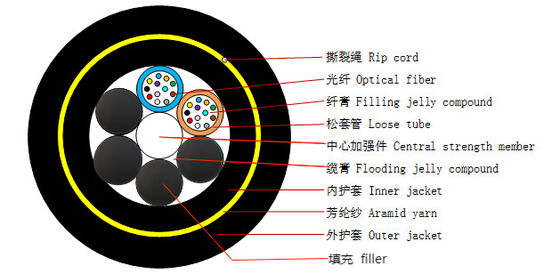

  • All-Dielectric Self-Supporting (ADSS) Fiber Optic Cable
  • PE Jacket material
  • Attenuation: 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km
  • Fiber Grade: G.652D
  • Cable Span: 100M/200M/300M/400M
  • Operating Temperature: -40℃~+70℃


Technical Parameters:

Attribute Value
Tensile Strength (Long-term/Short-term) 200N/600N
Cable Length 1km/2km/3km/4km/5km
Fiber Count 2-144
Fiber Type Single-mode
Cable Span 100M/200M/300M/400M
Attenuation (1310nm/1550nm) ≤0.36dB/km/≤0.22dB/km
Cable Diameter 9.7mm
Fiber Grade G.652D
Jacket Color Black
Storage Temperature -40℃~+85℃


Factory show

Single Mode G.652D 2-144 Fibers 1km-5km Length Fiber Optic Cable 0Single Mode G.652D 2-144 Fibers 1km-5km Length Fiber Optic Cable 1


Packing and Shipping:

Packaging & Shipping
2/3/4km per plywood drum or customized


Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable

Single Mode G.652D 2-144 Fibers 1km-5km Length Fiber Optic Cable 2
