24 Core 5km One Roll ADSS Cable PE Jacket 50m Span ADSS Fiber Optic Cable

24core 5km one roll ADSS cable PE Jacket 50m span ADSS Fiber Optic Cable

Product Description:

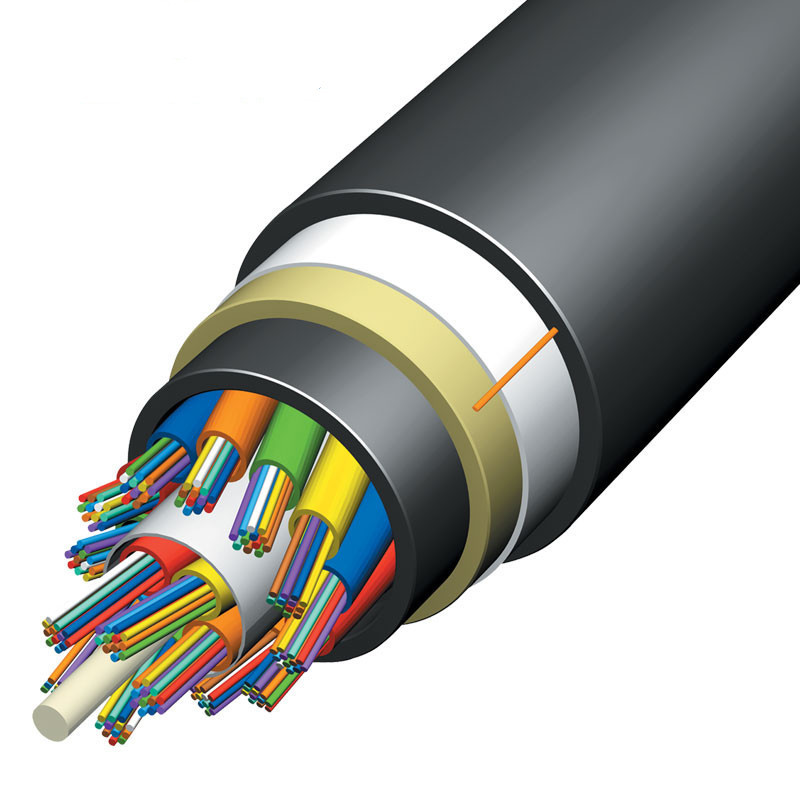

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium,installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.

Features:

• Product Name:ADSS Fiber Optic Cable
• Cable Diameter:9.7mm
• Operating Temperature:-40℃~+70℃
• Storage Temperature:-40℃~+85℃
• Fiber Type:Single-mode
• Fiber Grade:G.652D

Factory show

Technical Parameters:

Support and Services:

Packing and Shipping:

FAQ:

Q1: What is JQ ADSS Fiber Optic Cable?

A1: JQ ADSS Fiber Optic Cable is a self-supporting all-dielectric optical cable, with the model number ADSS-24B1.3, from Guangzhou China.

Q2: What are the advantages of JQ ADSS Fiber Optic Cable?

A2: The JQ ADSS Fiber Optic Cable has a small diameter and lightweight design, making it easier to install and reduce labor costs. It is also resistant to corrosion, and can be used in harsh environments.

Q3: How flexible is JQ ADSS Fiber Optic Cable?

A3: JQ ADSS Fiber Optic Cable is extremely flexible, providing fast and efficient installation, while minimizing the risk of installation damage.

Q4:What applications can JQ ADSS Fiber Optic Cable be used for?

A4: JQ ADSS Fiber Optic Cable can be used for access networks, data center connections, local area networks, point-to-point networks, and outdoor and underground deployments.

Q5: What are the specifications of JQ ADSS Fiber Optic Cable?

A5: JQ ADSS Fiber Optic Cable has an operating temperature range of -40°C to +60°C, and an operating wavelength range of 1260nm to 1625nm.
