Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-96B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|

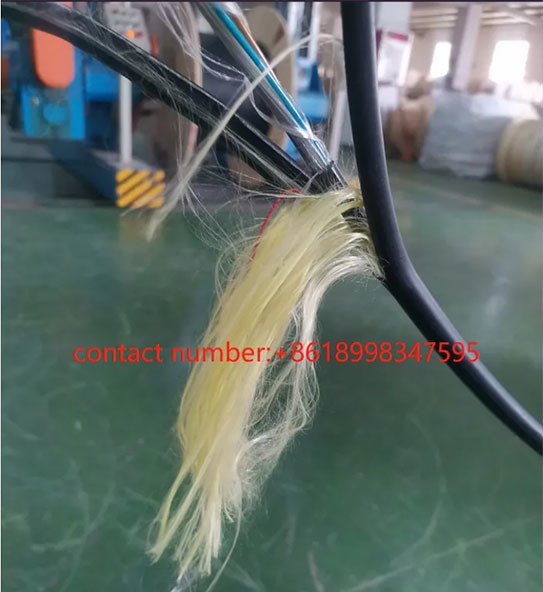

| Number Of Conductors: | 4-288 Cores | Strength Member: | FRP+Kevlar Yarn |
| Storage/operating Temperature:: | -40 +70 °C | Application: | Overhead Installation |
| Manufacturer: | Yes | Cable Type: | All Dielectric Fiber Optic Cable |
| Jacket: | Double Jacket/single Jacket | Length: | 1km,2km,3km,4km,5km |
| High Light: | Fiber Optical Cable 4000m,ADSS Aerial Fiber Optical Cable |
||
Product Description
ADSS Fiber Optic Cable Aerial FOC 96F G652D Single Mode Non-Metallic Optical Fiber Cable

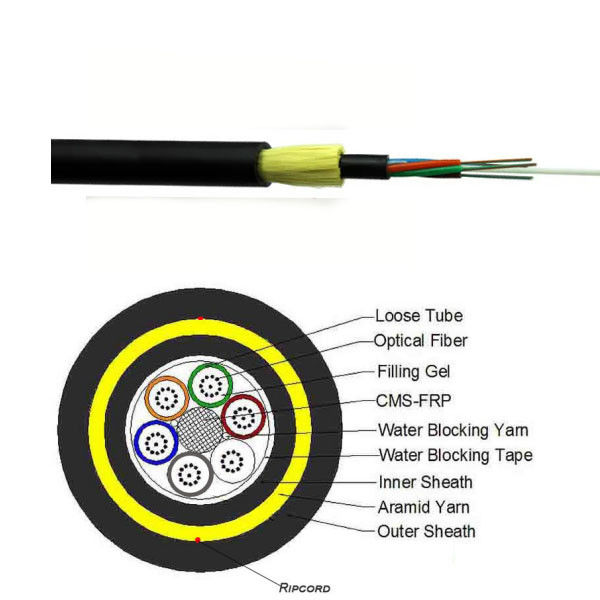

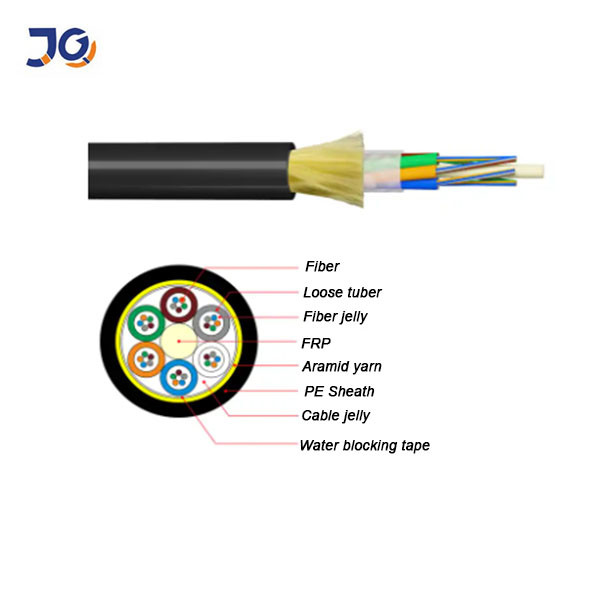

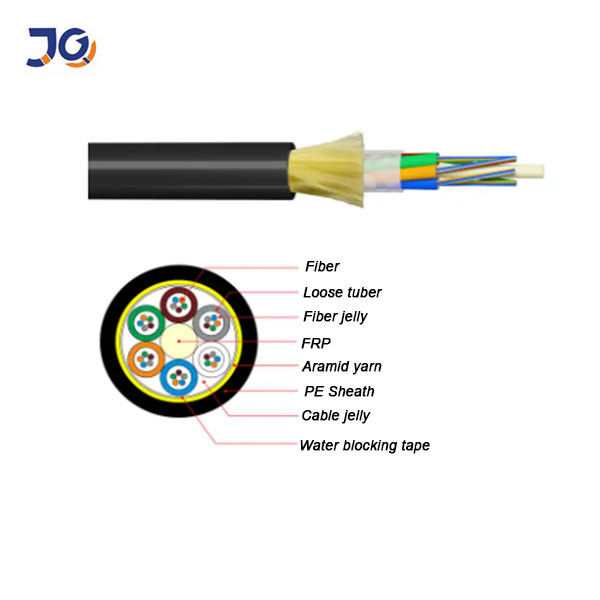

Cable Performance
|
Item |
Contents |
Value | |||
| 6/12/24 | 48 | 72 | 96 | ||
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
|
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
|
Central strength member |
Material | FRP | |||
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 3.5 | |
| PE layer diameter (mm) | -- | -- | |||
| Peripheral strength member | Material | FRP | |||
|
Sheath |
Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 11.8±0.3 | 13.8±0.5 | |
| Cable weight(kg/km) Approx. | 128 | 131 | 148 | 152 | |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
