ADSS 12 Core Span 100m Armid Yarns Outdoor Fiber Optic Cable

Place of Origin: Guangzhou China Brand Name: JQ
Certification: ROHS/ISO/CE Model Number: ADSS

Detail Information

Cable Diameter: 9.7mm Jacket Color: Black
Operating Temperature: -40℃~+70℃ Application: Overhead
Cable Length: 1km/2km/3km/4km/5km Fiber Count: 2-144
Storage Temperature: -40℃~+85℃ Bending Radius: Static: 10D/Dynamic: 20D
High Light:

12 Core Outdoor Fiber Optic Cable

,

100m Armid Outdoor Fiber Optic Cable

Product Description

ADSS 12Core Span 100m Armid Yarns Outdoor Fiber Optic Cable

Product Description:

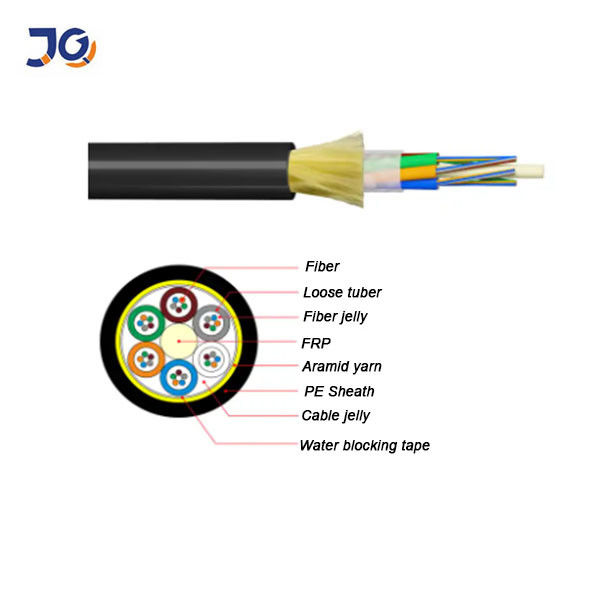

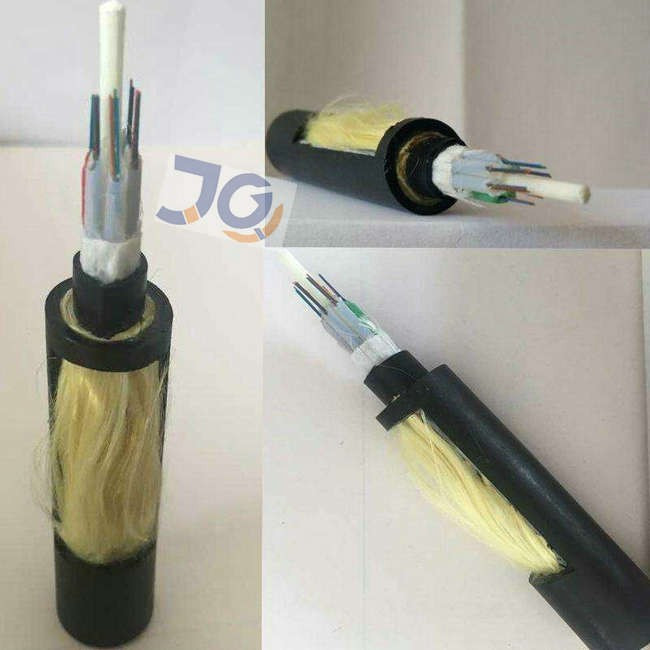

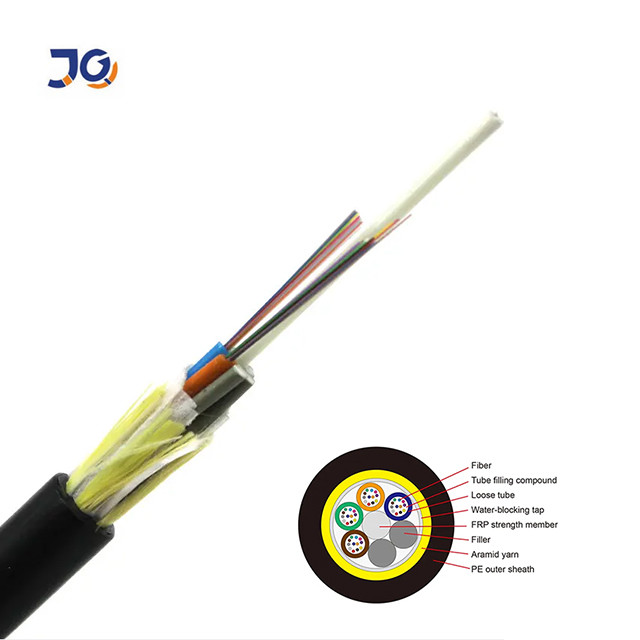

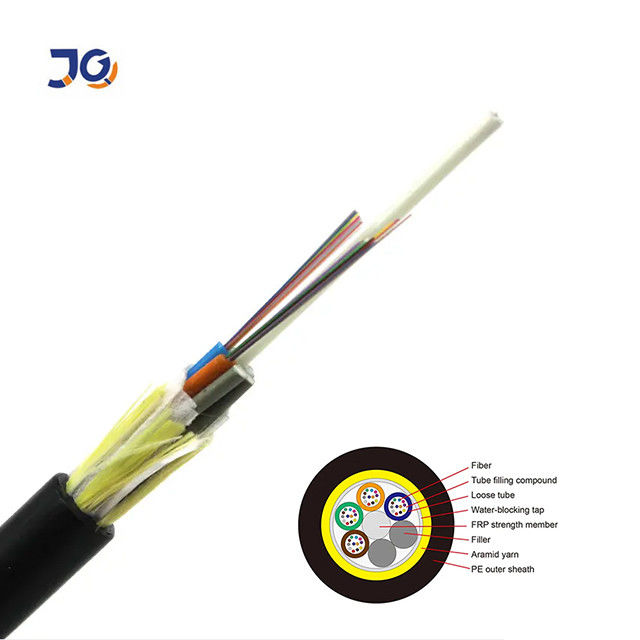

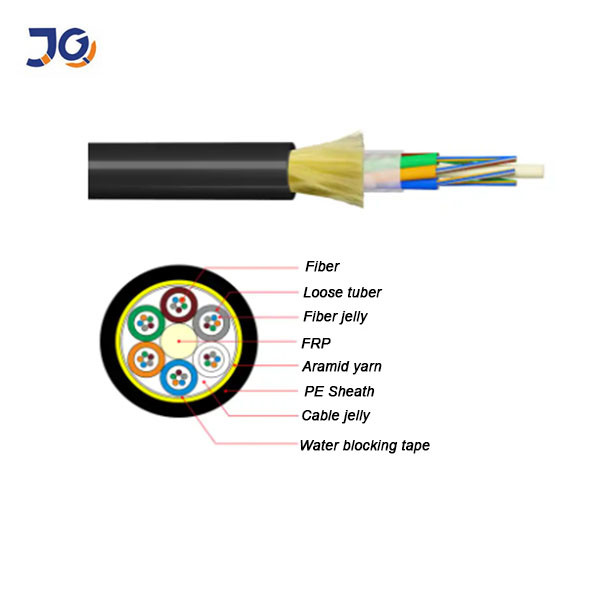

ADSS cable is constructed in a loose tube stranded style. Each fiber, at a diameter of 250μm, is positioned and insulated in a tube made of high modulus plastics and filled with a water-resistant compund. The tubes as well as the fillers are then wrapped around a FRP (Fiber Reinforced Plastic) in the middle as a non-metallic strength member to create a very compact and circular cable core. Lastly, a thin PE (polyethylene) inner sheath is installed and a stranded layer of aramid yarns are applied and held together as the strength member. Once done, the cable is covered with a PE or AT (anti-tracking) outer sheath and is then entirely complete.

ADSS 12 Core Span 100m Armid Yarns Outdoor Fiber Optic Cable 0

ADSS 12 Core Span 100m Armid Yarns Outdoor Fiber Optic Cable 1

Features:

The mechanical and thermal performance of this cable is very good. With its light weight and small diameter, the loads caused by ice and wind as well as the weight on towers and backdrops can be reduced. Furthermore, this cable is equipped with aramid yarn which improves the tensile strength of the cable. The maximum span length for this cable is more than 1000 meters, making it convenient for large-scale applications.



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22

Applications:

Setting up a long-distance telecom, or even LAN in high-voltage area, is easy to achieve with the self-support aerial method.

The self-support aerial method is an incredibly powerful tool, allowing users in a high-voltage area to gain access to telecom network despite its challenging conditions. It is a quick and effective installation process that can be completed with great cost efficiency.

This method is reliable and can provide secure access, ensuring a interruption-free connection that can be available to users for a long-term duration.



Customization:

ADSS Fiber Optic Cable
  • Brand Name: JQ
  • Model Number: ADSS
  • Place of Origin: Guangzhou China
  • Storage Temperature: -40℃~+85℃
  • Attenuation: 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km
  • Cable Length: 1km/2km/3km/4km/5km
  • Fiber Type: Single-mode
  • Name: ADSS Fiber Optic Cable
  • Special Feature: Aerial Fiber Optical Cable, 72F and 96F ADSS Cable: 100M Span, Aerial Fiber Optical Cable


Support and Services:

ADSS Fiber Optic Cable Technical Support and Service

ADSS Fiber Optic Cable provides comprehensive technical support and service that help customers in the installation, operation and maintenance of their fiber optic cable.

We offer both online and telephone support for customers with inquiries about installation, operation and maintenance. Our technicians are available 24/7 to answer any questions and help troubleshoot any issues related to the fiber optic cable.

We also offer on-site installation and maintenance services for customers who need help with the installation or maintenance of their fiber optic cable. We have a team of experts that are knowledgeable in fiber optics and can assist customers in any way needed.

For more information on our technical support and services, please contact us at your convenience.



Packing and Shipping:

ADSS Fiber Optic Cable Packaging and Shipping:

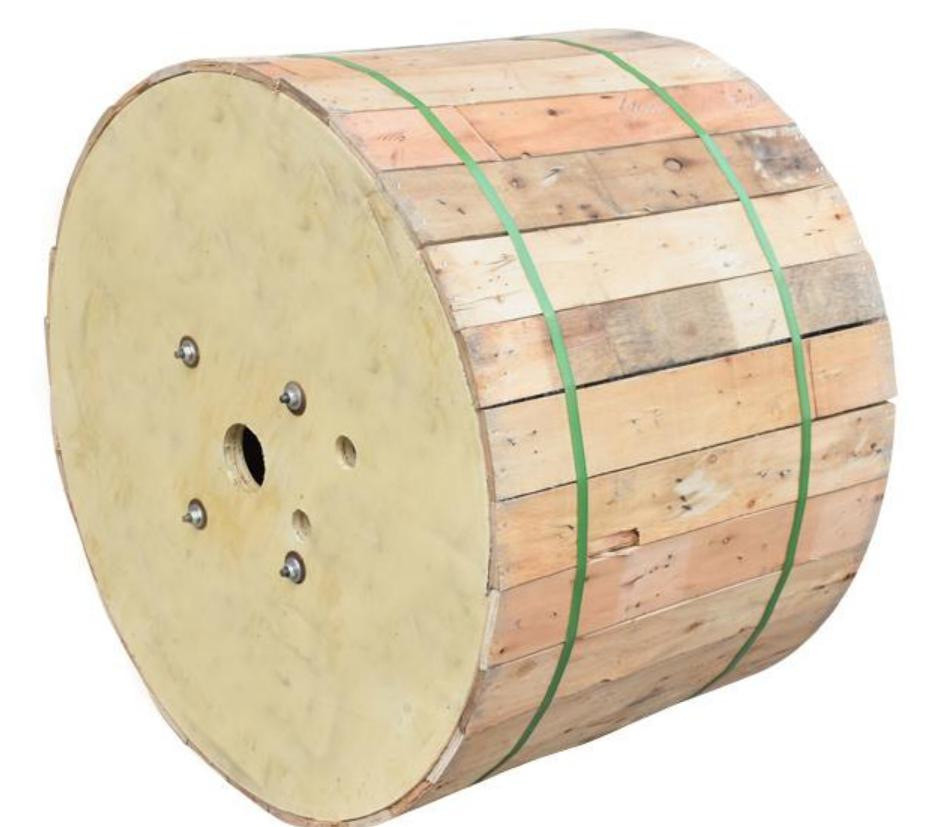

ADSS fiber optic cables are packaged and shipped in bundles of varying lengths, depending on the customer's preference. The cables are securely fastened together to prevent tangling and fraying, and each bundle is carefully wrapped in a protective plastic film. The bundles are then packed in cardboard boxes, which are labeled with the product information and shipping address. The boxes are then sealed with durable tape and shipped via ground or air freight, depending on the customer's needs.



ADSS 12 Core Span 100m Armid Yarns Outdoor Fiber Optic Cable 2

ADSS 12 Core Span 100m Armid Yarns Outdoor Fiber Optic Cable 3



FAQ:

Q1: What is the Brand Name and Model Number of ADSS Fiber Optic Cable?
A1: The Brand Name is JQ and the Model Number is ADSS.

Q2: Where is it manufactured?
A2: ADSS Fiber Optic Cable is manufactured in Guangzhou, China.

Q3: What is the transmission speed of ADSS Fiber Optic Cable?
A3: ADSS Fiber Optic Cable supports up to 10 Gbps transmission speed.

Q4: What is the range of ADSS Fiber Optic Cable?
A4: The range of ADSS Fiber Optic Cable is up to 80km.

Q5: What is the core diameter of ADSS Fiber Optic Cable?
A5: The core diameter of ADSS Fiber Optic Cable is 0.9mm.
