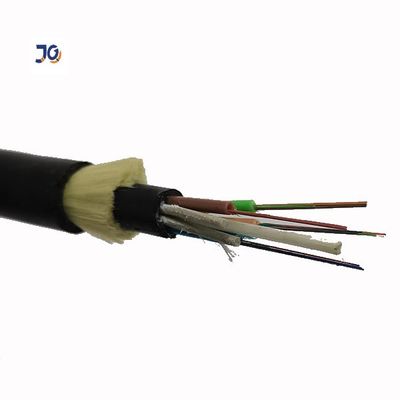

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km
ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km
Contact Now

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12core 24core 96core 144core

Detail Information
Fiber Type: G652D Application: Aerial
Number Of Conductors: 96core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 80m 100m 150m 200m 300m
High Light:

96 Core Aerial Fiber Optic Cable

,

50m Span Aerial Fiber Optic Cable

,

1km Aerial Fiber Optic Cable

Product Description

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km Price

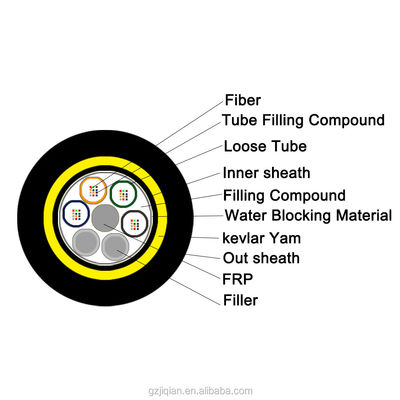

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completedwith a PE sheath.


Cable Paremeter:
Cable Structure and Parameter
Fiber Count
12
48
Number of tube & Fillers
1+4
4+1
Fiber number per tube
12
12
Central strength member, FRP diameter (mm)
1.5
1.5
PBT Loose tube diameter (mm)
2.0
2.0
Sheath thickness (mm)
1.8
1.8
Cable diameter (mm)
10.2
10.5
Cable weight (kg/km)
100
105
Tensile strength(N) while fiber strain is ≤0.33%
3000
3000





Technical Data:



Cable fiber count

/

2~30

32~60

62~72

Structure

/

1+5

1+5

1+6

Fiber style

/

G.652D

Central strength member

material

mm

FRP

Diameter (average)

1.5

1.5

2.1

Loose Tube

Material

mm

PBT

Diameter (average)

1.8

2.1

2.1

Thickness(average)

0.32

0.35

0.35

Max fiber/loose tube

6

12

12

Tubes color

Full color identification

Fiber excess length

%

0.7~0.8

Water resistance

Material

/

Cable jelly

Inner sehath

material

mm

MDPE

Inner sheath

0.9mm

Non-metallic strengthen components

Material

/

Aramid Yarn

Outer sheath

material

mm

MDPE

Outer sheath

1.8mm

Cable diameter(average)

mm

10.9

11.5

12.1

Cable weight (Approximate)

kg/km

95

110

120

Cable Sectional area

mm2

93.31

103.87

114.99

Attenuation coefficient(Max)

1310nm

dB/km

0.35

1550nm

0.21

Rated Tensile Strength(RTS)

kn

6

Max allowed tension( MAT)

kn

2.5

Annual average operating tension (EDS)

kn

3.2

Young's modulus

kn/mm2

7.8

Coefficient of thermal expansion

10-6/℃

9

Crush resistance

Long term

N/100mm

1100

Short term

2200

Permission Bent Radius

static

mm

15 of OD

dynamic

20 of OD





ADSS Double Jacket :

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 0

Single Jacket ADSS Span 100m :

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 1







Fiber Color and Loose tube Color , You can choose what you like or according national standred .



ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 2



Product Features Comparion with other Supplier :



ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 3



Packing details:

1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements

1.One wooden reel of the cable packed in a carton

The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 4



ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 5



Company Profile :

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province , xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 6





FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc





Thank you very much for viewing this page, and wish you a nice day!
Please click the button below to view our homepage.

ADSS Span 50m 48 96 Core Aerial Fiber Optic Cable 1km 7
