Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 6000km per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-48B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Cable Structure: | Stranded Loose Tube | Strength Member: | FRP+Aramid Yarn |
| Cable Diameter: | 10.0±0.2mm | Application: | Aerial Self-support |
| Factory: | Yes | Cable Type: | All Dielectric Fiber Optic Cable |
| Sheath Material: | PE/AT | Span: | 50-600m |
| High Light: | 100m ADSS Fiber Optic Cable,ADSS Fiber Optic Cable 24 Cores,Self Supporting ADSS Fiber Optic Cable |
||
Product Description
All-Dielectric Self-Supporting ADSS Spam100m Fibra Optica 24 Hilos
All Dielectric Self-Supporting (ADSS) cables are designed for aerial self-supporting applications requiring short, medium and long span distances.

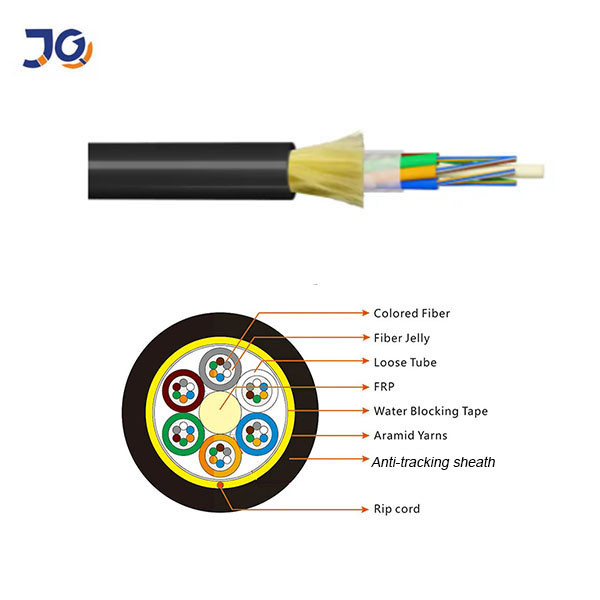

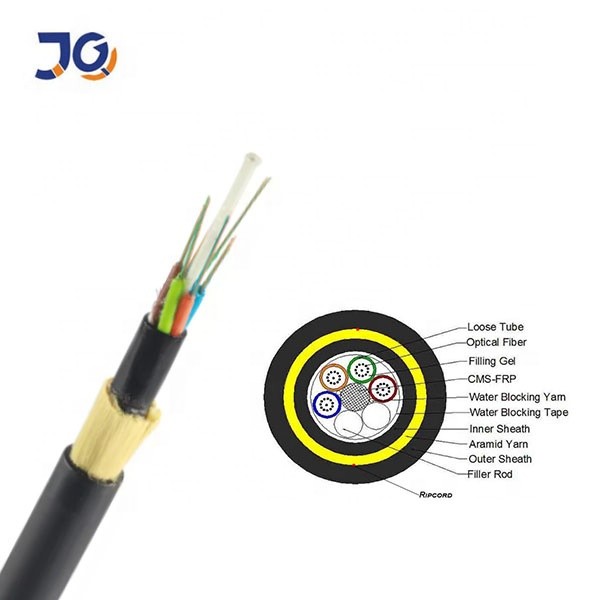

Our ADSS cables offer a rapid and economical means for deploying optical fiber cables along existing aerial rights-of-way. They are deployed by cable television operators, telephone companies, municipalities and emerging network operators, in addition to electric power utilities. The ADSS cable consists of a number of tubes/elements according to the specified number of fibers.The elements are usually fiber-containing tubes; however fillers may be used to preserve the cable geometry.
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Fiber color code:
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Colour | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Colour | Red | Black | Yellow | Yellow | Pink | Aqua |

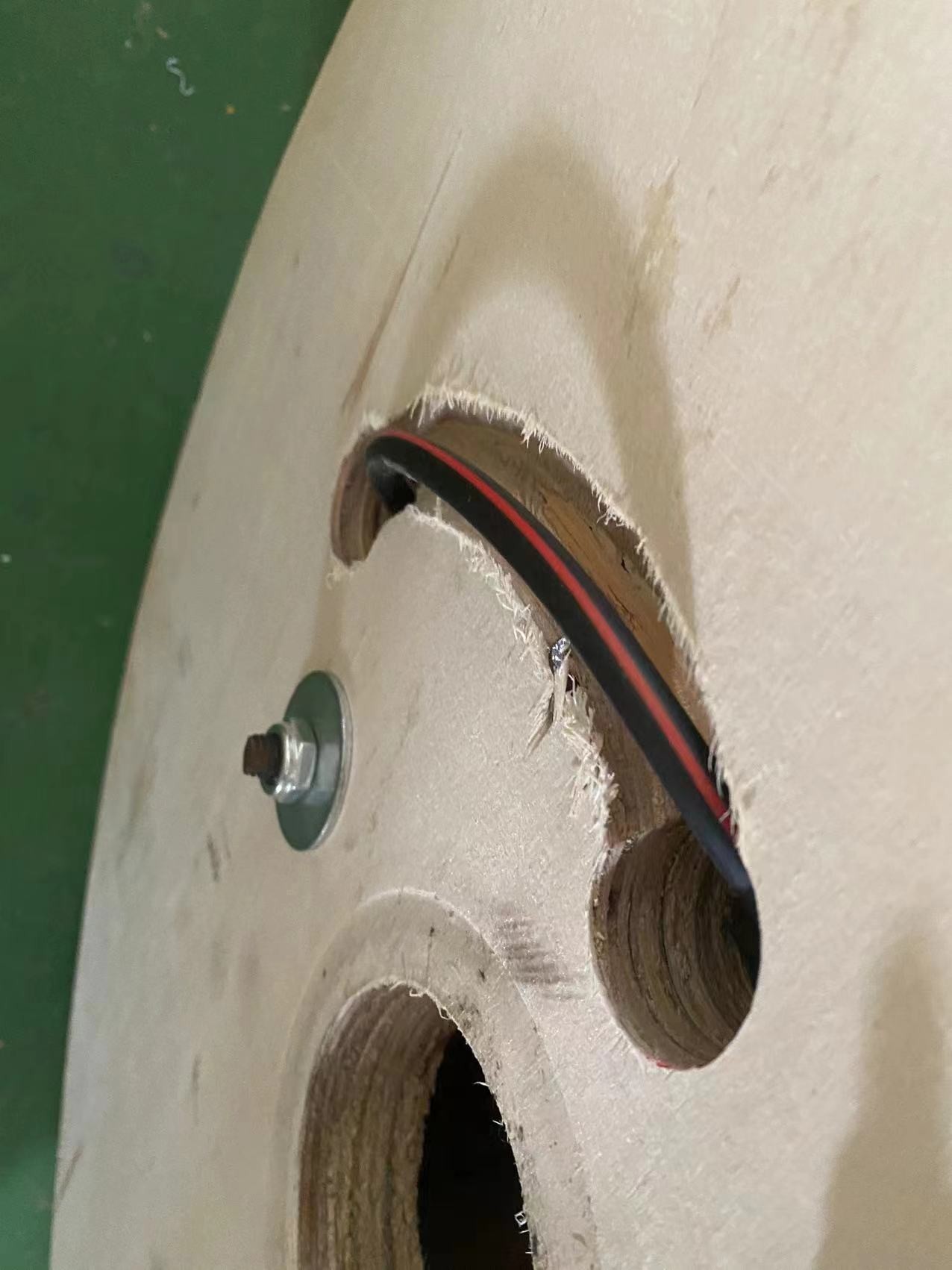

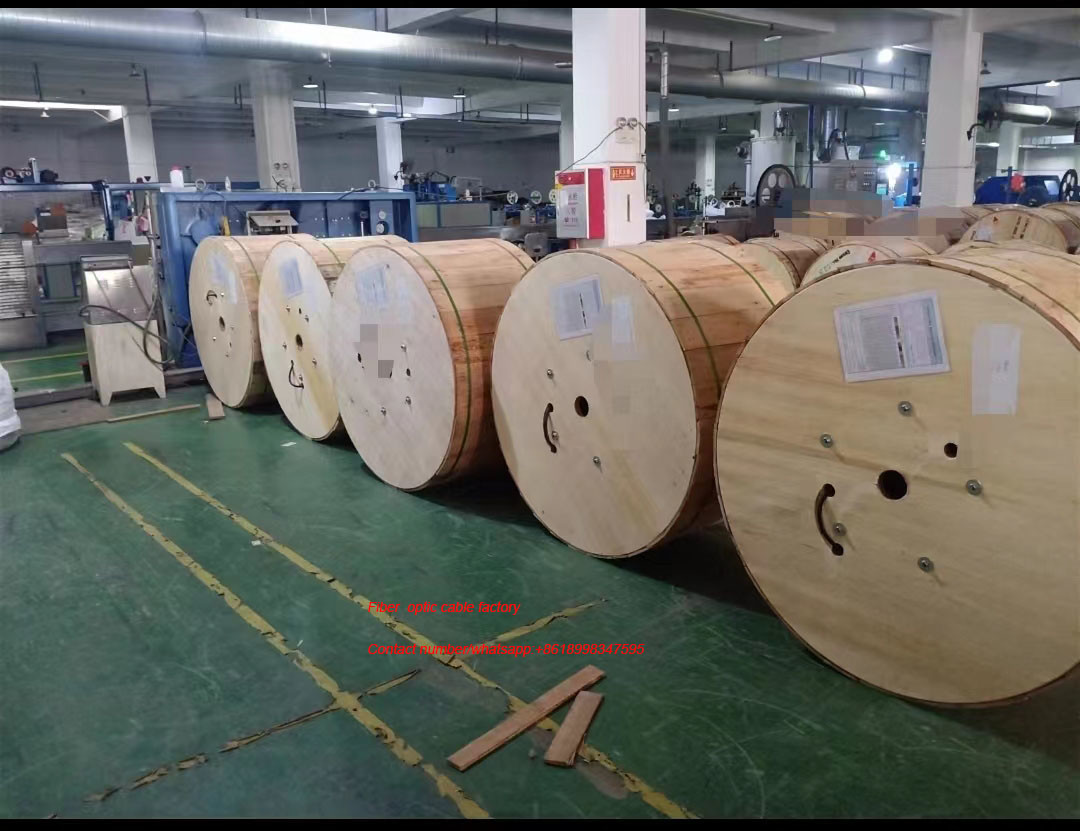

Packing: plywood drum 2/3/4/5 one drum or as your requirement

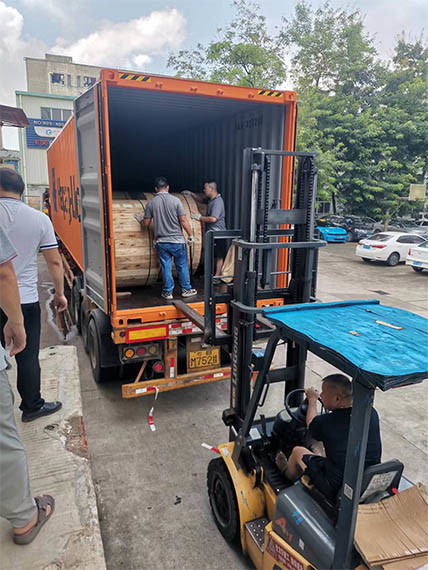

Delivery:By sea/road/train
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 12 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
