ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable

1km
MOQ
ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou China
Water Blocking Material: Water Blocking Tape
Cable Structure: Stranded Loose Tube
Central Strength Member FRP: 3.0/6.2mm
Fiber Count: 4-288 Cores
Application: Aerial Self-support
Factory: Yes
Cable Type: All Dielectric Fiber Optic Cable
Material Of Jacket: Black Polyethylene (PE)
Cable Diameter: 14.5
Highlight:

ADSS Fiber Cable Single Mode

,

150m Span ADSS Fiber Cable

,

144 Core ADSS Fiber Cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC
Model Number: ADSS-144B1
Payment & Shipping Terms
Packaging Details: Plywood drum
Delivery Time: Normally 5-7 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000km per month
Product Description

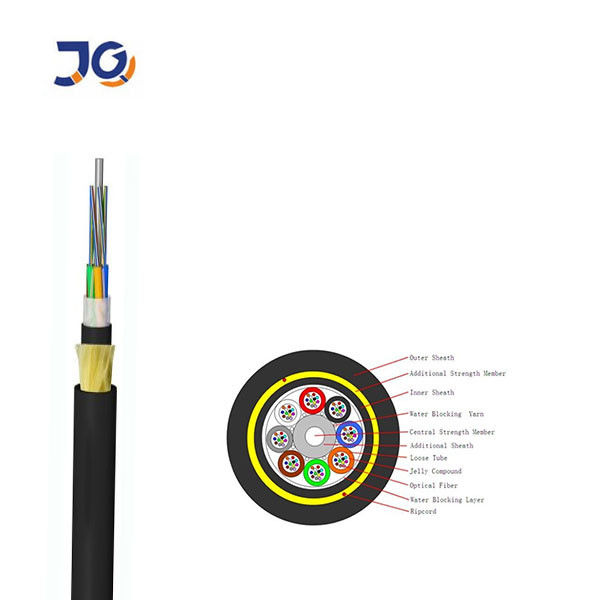

ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable 0

Mechanical and Environmental Characteristics























Performance parameters



Rated tensile strength (RTS)

 KN 7.1



Allows the use of tension (MAT)



KN



2.8



The average annual running tension (EDS)



KN



1.8



Limit running tension (UES)



KN



4.26



Thermal expansion coefficient



10-6/℃



1/℃



Young's modulus



kN/mm2



6.3



The compressive strength

 In a long time 1.1KN/100mm
In the short term 2.2KN/100mm



Static bending radius

 10 times the cable diameter

d



Dynamic bending radius

 20 times the cable diameter



Temperature range



laying



-20~+70°C



Transportation and operation



-40~+70°C



Extra Length of fiber optic cable



0.4-0.6%
Life expectancy 25-30 years



Fiber color code:

     No. 1 2 3 4 5 6
Colour Blue Orange Green Brown Gray White
No. 7 8 9 10 11 12
Colour Red Black Yellow Yellow Pink Aqua

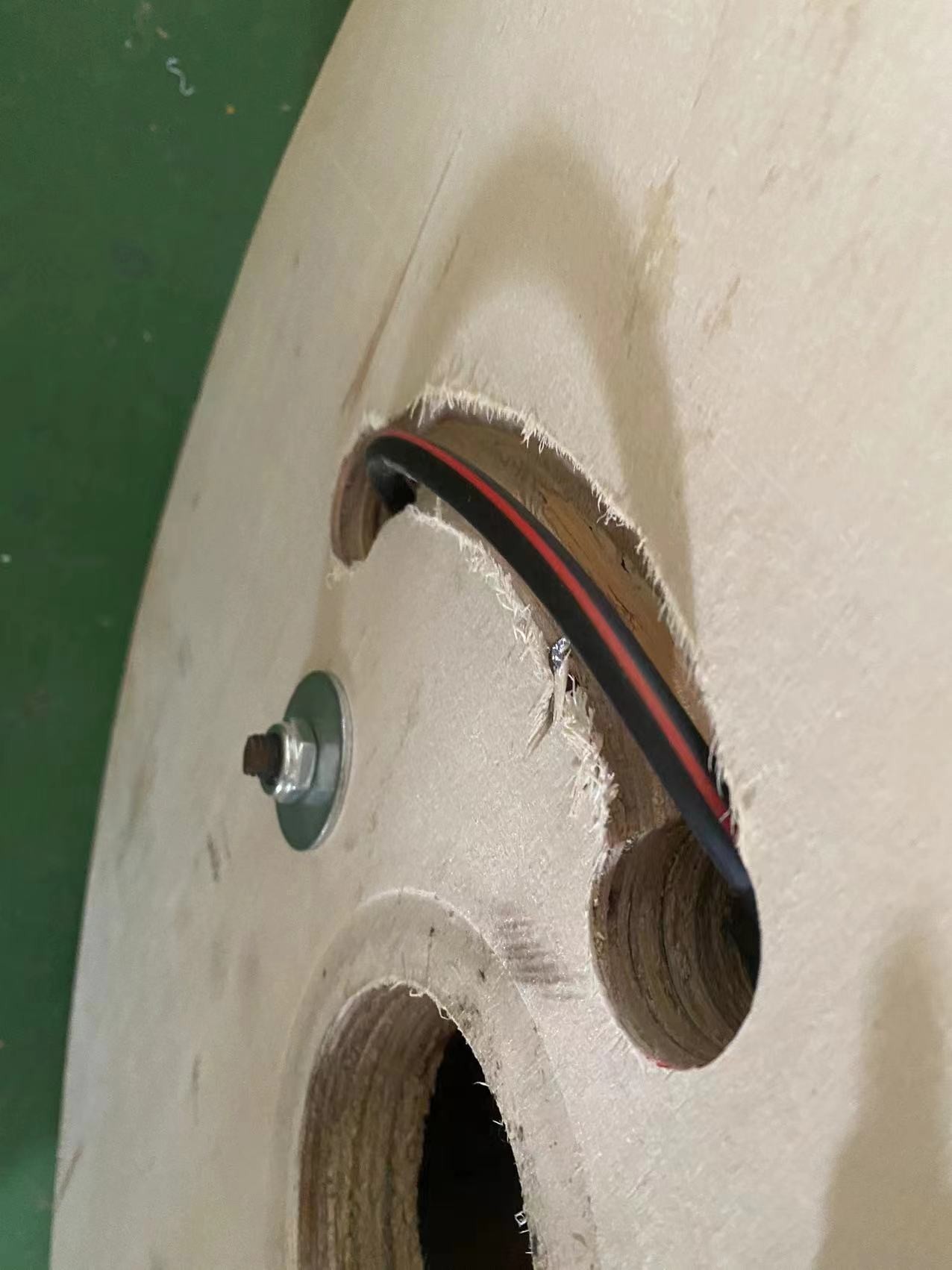

Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train
 ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable 1

 Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable 2



Exhibition

ADSS Fiber Cable Single Mode Span 150m 144 Core Fiber Optic Cable 3




FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements


Welcome to visit our factory
Contact me at +8618998347595 to get free sample
