Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 9000km per month |
| Brand Name: | Jiqian | Certification: | ISO9001 ROHS CE FCC |
|---|---|---|---|
| Model Number: | ADSS-12B1 |
|
Detail Information |
|||

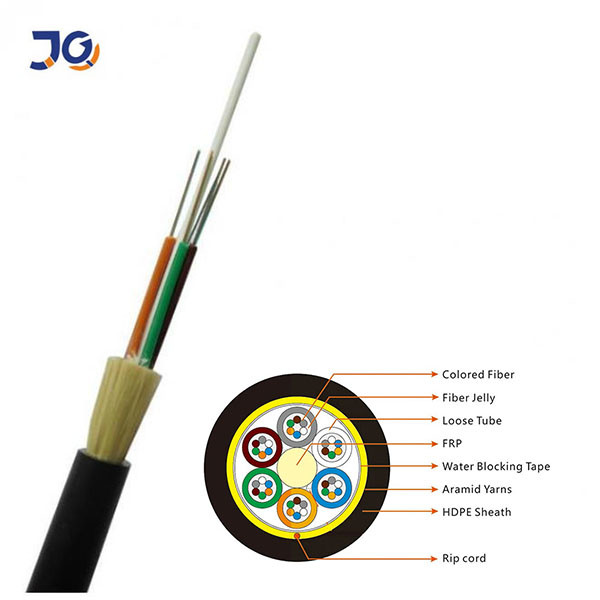

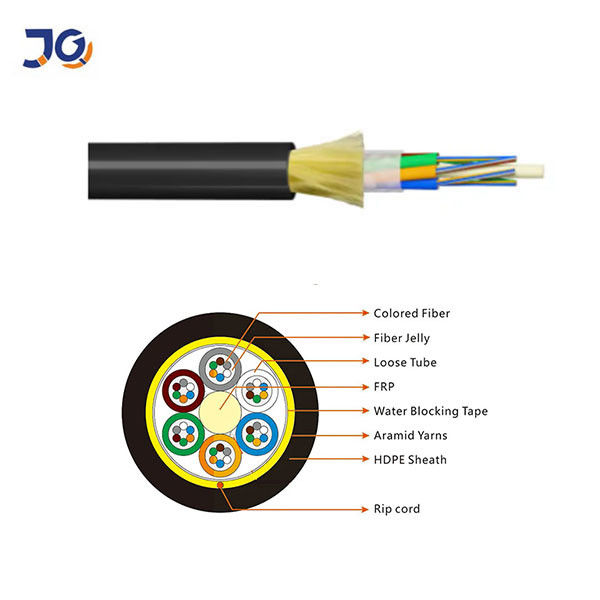

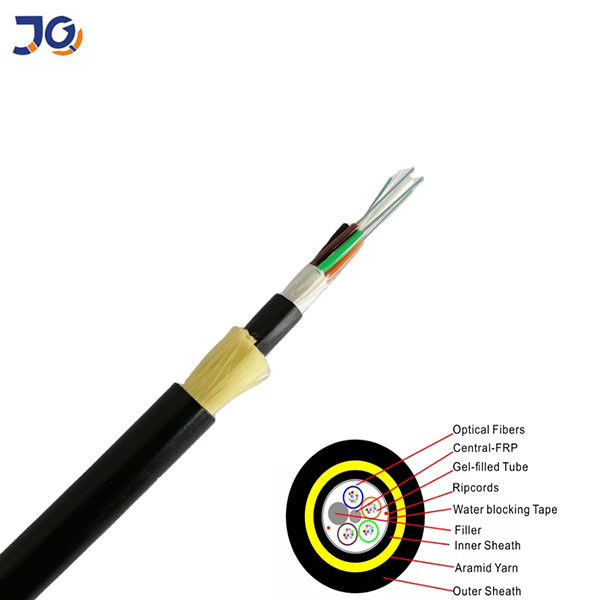

| Place Of Origin: | Guangzhou China | Water Blocking Material: | Water Blocking Tape |
|---|---|---|---|
| Loose Tube Material: | PBT | Central Strength Member: | FRP |
| Fiber Cores: | 2-288 Cores | Armored: | No,it's All-dielectric |
| Factory: | Yes | Additional Strength Member: | Aramid Yarn |
| Material Of Jacket: | HDPE/Anti-track | Fiber Brand: | YOFC/Fiberhome |
| High Light: | Anti Track ADSS Fiber Optic Cable,288 Cores ADSS Fiber Optic Cable,Aramid Yarn ADSS Fiber Optic Cable |
||
Product Description
Buena calidad Precio de fabrica ADSS 12 hilos Span 200
Fiber optic G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Mechanical and Environmental Characteristics
| Performance parameters |
Rated tensile strength (RTS) |
KN | 7.1 |
|
Allows the use of tension (MAT) |
KN | 2.8 | |
|
The average annual running tension (EDS) |
KN | 1.78 | |
|
Limit running tension (UES) |
KN | 4.26 | |
|
Thermal expansion coefficient |
10-6/℃ | 1/℃ | |
|
Young's modulus |
kN/mm2 | 6.8 | |
|
The compressive strength |
For a long time | 1100N/100mm | |
| For a short term | 2200N/100mm | ||
|
Static bending radius The minimum bending radius |
10 times the cable diameter | ||
| Dynamic bending radius | 20 times the cable diameter | ||
|
Suitable temperature range |
laying | -30~+70°C | |
|
Transportation and operation
|
-40~+70°C | ||
|
Extra Length of fiber optic cable |
0.4-0.6% | ||
| Life expectancy | 25-30 years | ||
Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Certification
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge
3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
