Fiber Optic ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	Plywood drum
Delivery Time :	Normally 5-7 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	9000km per month

Place of Origin:	China	Brand Name:	Jiqian
Certification:	ISO9001 ROHS CE FCC	Model Number:	ADSS-48B1

Detail Information
Place Of Origin:	Guangzhou China	Water Blocking Material:	Water Blocking Tape/yarn
Loose Tube Material:	PBT	Central Strength Member:	FRP
Fiber Cores:	2-288 Cores	Reinforced Member:	Aramid Yarn+FRP
Factory:	Yes	Length:	2/3/4km One Drum
Jacket:	PE	Fiber Class:	A
Highlight:	48 Core ADSS Fiber Optic Cable , ADSS Fiber Optic Cable Single Mode

Product Description

Cable Fibra Optica Good quality ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable

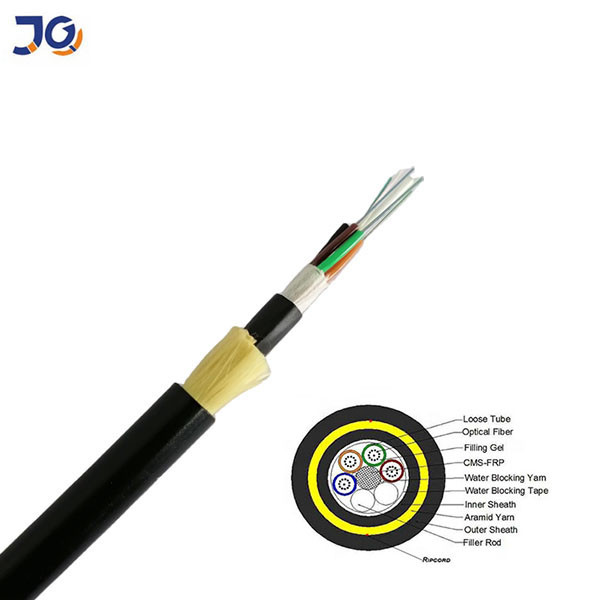

Fiber Optic ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable 0

Long Span ADSS

FEATURES:
1Stranded loose tube design ensures that the are always free from mechanical strain under the specified loading conditions
2.Double Jacket designs for medium to long span applications and moderate to heavy ice and wind loading conditions
3.No metallic or conductive components, allowing the live-line installation (subject to local regulation)
4.Use for both earth-wires and phase conductors
5.Torsionally-balanced aramid yarn strength elements provide stable cable design
6.UV-resistant polyethylene sheath is compatible with fittings from all major suppliers and is suitable for use to 12kV space
potential
7.Custom designs for extremely long spans available
8.Track-resistant options are also available for use up to 25kV space potential

Application:

Utilised for telecommunications by power utilities, telcos, and private network groups
Designed for installation on distribution and transmission lines
Capable of being installed in close proximity to conductors if security is a concern
Suitable for applications, minimizing the need for outages

Fiber optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Mechanical and Environmental Characteristics

Performance parameters	Rated tensile strength (RTS)	KN	14.87
	Allows the use of tension (MAT)	KN	5.95
	The average annual running tension (EDS)	KN	3.72
	Limit running tension (UES)	KN	8.92
	Thermal expansion coefficient	10^-6/℃	1/℃
	Young's modulus	kN/mm2	14.6
	The compressive strength	For a long time	1100N/100mm
	The compressive strength	For a short term	2200N/100mm
	Static bending radius The minimum bending radius	10 times the cable diameter
	Dynamic bending radius	20 times the cable diameter
	Suitable temperature range	laying	-30~+70°C
	Suitable temperature range	Transportation and operation	-40~+70°C
	Extra Length of fiber optic cable	0.4-0.6%
	Life expectancy	25-30 years

Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train

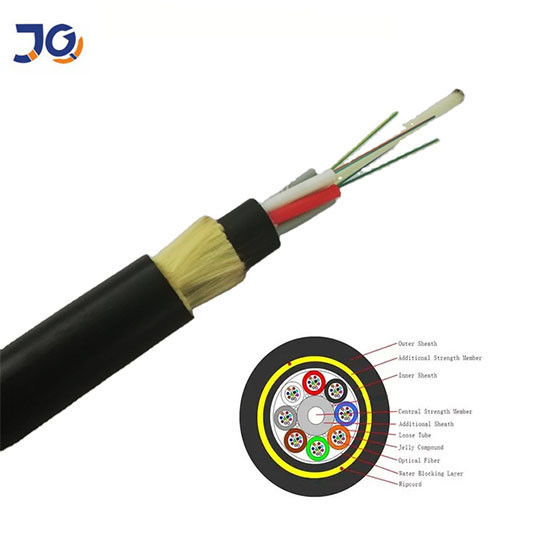

Fiber Optic ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable 1

Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

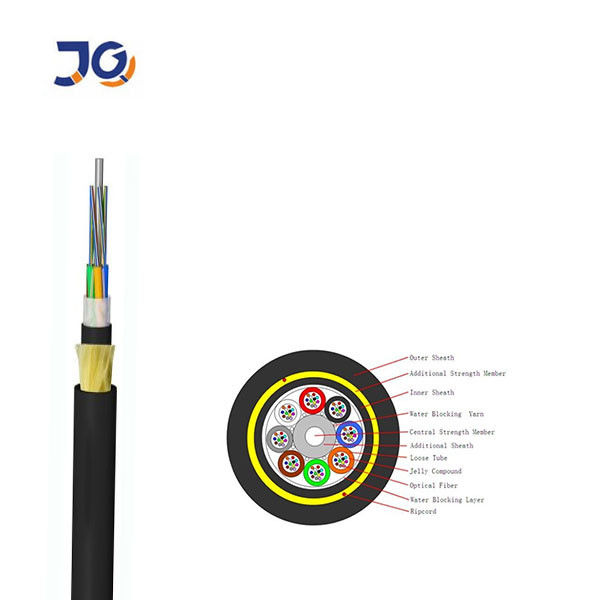

Fiber Optic ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable 2

Certification

Fiber Optic ADSS Cable Single Mode 48 Core Single Mode Fiber Optic Cable 3

FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge

3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable

5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements

Welcome to visit our factory
Contact me at +8618998347595 to get free sample
