Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 9000km per month |
| Brand Name: | Jiqian | Certification: | ISO9001 ROHS CE FCC |
|---|---|---|---|
| Model Number: | ADSS-24B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Temperature: | -40~+70°C |
|---|---|---|---|
| Loose Tube Material: | PBT | Cable Type: | Non Metal Self-supporting |
| Fiber Cores: | 2-288 Cores | Reinforced Member: | Aramid Yarn+FRP |
| Factory: | Yes | Length: | 2km,3km,4km,5km One Drum |
| Jacket: | Single Jacket&double Jacket | Life Expectancy: | 25-30 Years |
| High Light: | Single Mode Fiber Optic Cable,48 Core Overhead Fiber Optic Cable |
||
Product Description

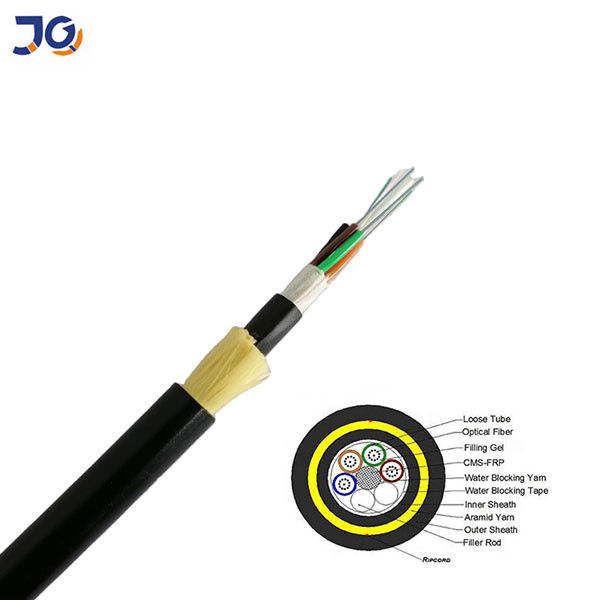

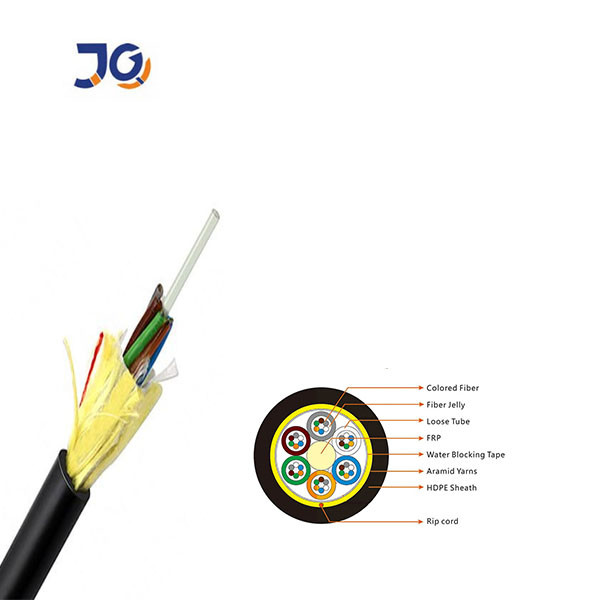

All Dielectric Self-Supporting (ADSS) cables are designed for overhead self-supporting applications
We provide short, medium and long span distances.
Fiber optic G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |

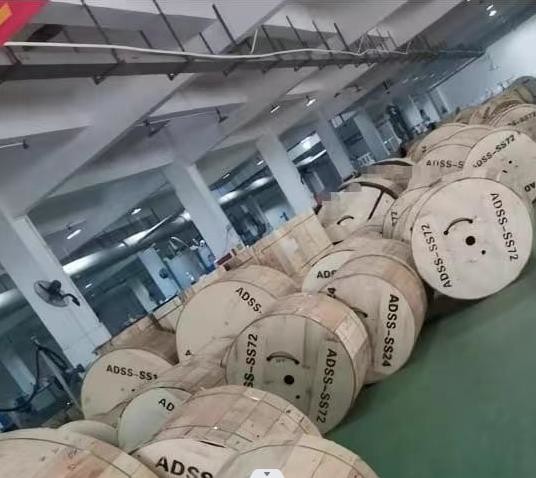

Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train
Fiber optic Color Order:
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Certification:
Exhibition:
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge
3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
Welcome to visit our factory
Contact me at +8618998347595 to get free sample
