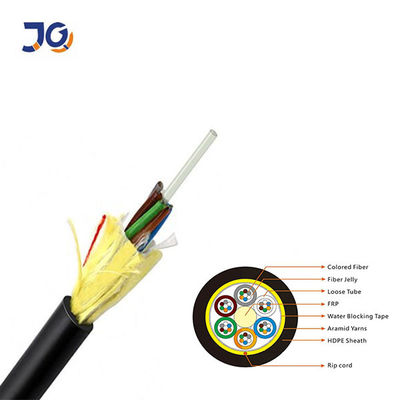

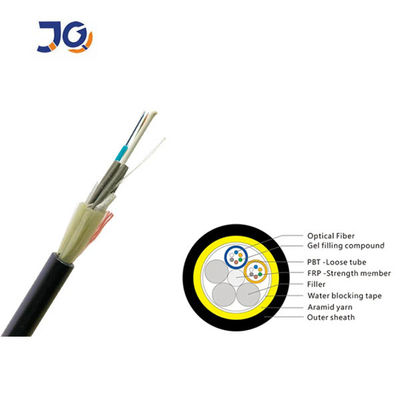

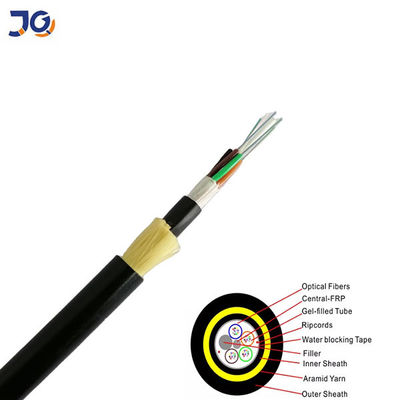

12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting

1km
MOQ
12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou China
Temperature: -40~+70°C
Fiber Type: Monomodo
Cable Type: Non Metal Self-supporting
Fiber Cores: 2-288 Cores
Reinforced Member: Aramid Yarn+FRP
Fábrica: Sí
Longitud: 2km,3km,4km,5km Un Rollo
Vaina: PE
Life Expectancy: 25-30 Years
Highlight:

100m Span ADSS Fiber Optic Cable

,

12 Cores ADSS Fiber Optic Cable

,

ADSS Fiber Optic Cable Self Supporting
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC
Model Number: ADSS-12B1
Payment & Shipping Terms
Packaging Details: Plywood drum
Delivery Time: Normally 5-7 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9000km per month
Product Description

Buena calidad 12hilos 100m Span ADSS Aereo Cables De Fibra Optica



ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments,
even when live line installations are required. As it's name indicates, there is no support or messenger wire required, so
installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network.

12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 012 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 1





FEATURES:
1.Dielectric unique design for use for installation with power distribution or near power lines
2.Very high tensile strength ideal for outdoor aerial applications
3.12-288 Cores 4.Compact 250um loose tube 5.High crush resistance 6.Self-supporting design 7.Choice of sheath thicknesses for different span lengths
8.PE and flame-retardant LSZH sheath options
Application:Overhead

12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 2

Fiber optic G652D

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100


Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train
 12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 3



Dimensions of Cable Constructions

Fiber count Structure Fibers per tube Loose tube diameter(mm) CSM central strength member(mm) Nominal Thickness of outer jacket (mm) Cable diameter(mm) Cable net weight (kg/km)
        12 1+6 6 2.0 2.0 1.8±0.2 9.8±0.2 80
24 1+6 6 2.0 2.0 1.8±0.2 9.8±0.2 80
48 1+6 12 2.0 2.0 1.8±0.2 10.0±0.2 85
96 1+8 12 2.0 2.0/3.4 1.8±0.2 11.8±0.3 123
144 1+12 12 2.0 3.0/6.2 1.8±0.2 14.5±0.5 175


 Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 4



ADSS Accessories



12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 5

Exhibition:

12 Cores 100m Span ADSS Fiber Optic Cable Non Metal Self Supporting 6




FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge

3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable

5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements


Welcome to visit our factory
Contact me at +8618998347595 to get free sample
