ADSS Cable Outdoor Overhead Non Metal Self Supporting Fiber Cable SM Optical Fiber Cable

Product Description

ADSS Cable Outdoor Overhead Non-Metal Self-Supporting Fiber Cable sM Optical Fiber Cable

ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multimode fibers can be arranged in ADSS cables with a maximum of 288 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance.

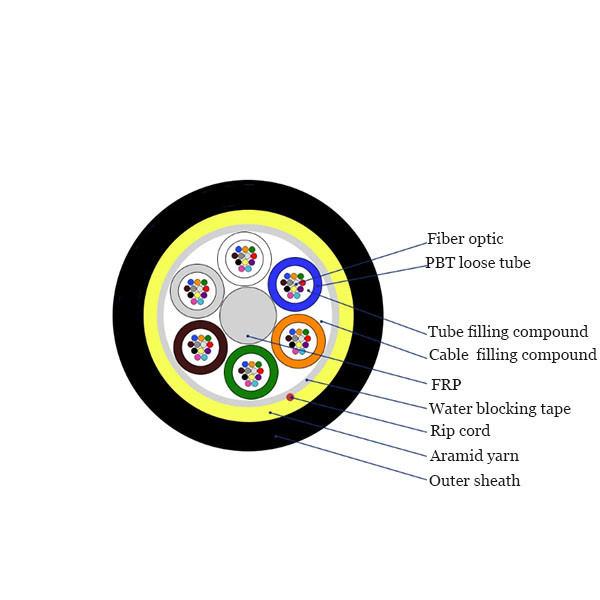

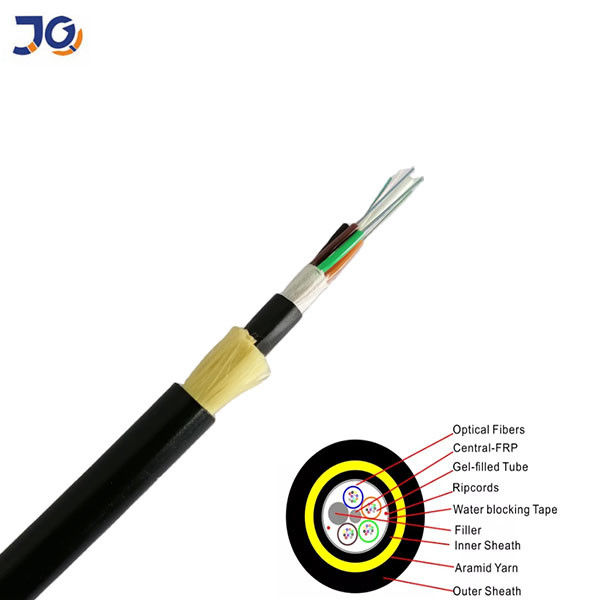

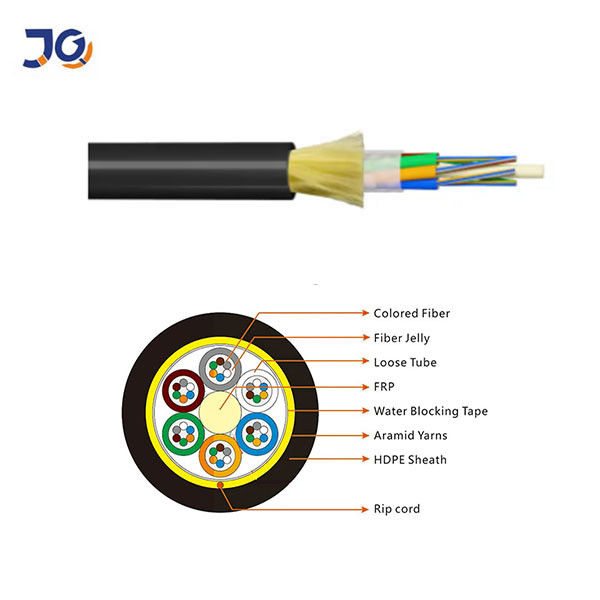

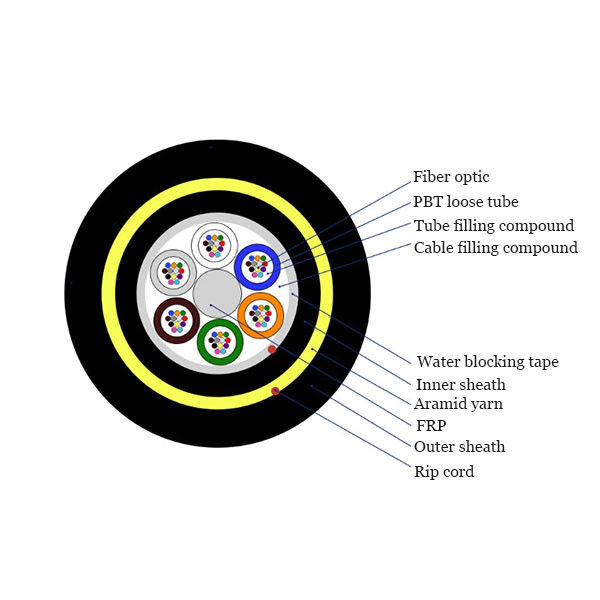

The structure of ADSS cable can be divided into two categories—central tube structure and stranded structure. In a central tube design, the fibers are placed in a PBT loose tube filled with water-blocking material within a certain length. Then they are wrapped with aramid yarn according to the desired tensile strength and extruded with PE (≤110KV electric field strength) or AT (≥100KV electric field strength) sheath. This structure features with small diameter and light weight but has limited lengths.

Comments from our customers:



Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train







Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM central strength member(mm)	Nominal Thickness of outer jacket (mm)	Cable diameter(mm)	Cable net weight (kg/km)
12	1+6	6	2.0	2.0	1.8±0.2	9.8±0.2	80
24	1+6	6	2.0	2.0	1.8±0.2	9.8±0.2	80
48	1+6	12	2.0	2.0	1.8±0.2	10.0±0.2	85
96	1+8	12	2.0	2.0/3.4	1.8±0.2	11.8±0.3	123
144	1+12	12	2.0	3.0/6.2	1.8±0.2	14.5±0.5	175

 Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa



Exhibition:



FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge

3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable

5.Which kind of certification do you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
