Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable
Contact Now

Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable

Minimum Order Quantity : 1KM Price : 80-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information
Fiber Count: 6 12 24 48 Hilos Sheath: PE,PVC Or LSZH Jacket
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: No
Length: 1/2/3/4/5KM Feature: All Dielectric Self Supporting
High Light:

Array ADSS Fiber Optic Cable

,

Aerial overhead ADSS Fiber Optic Cable

Product Description

Product Description

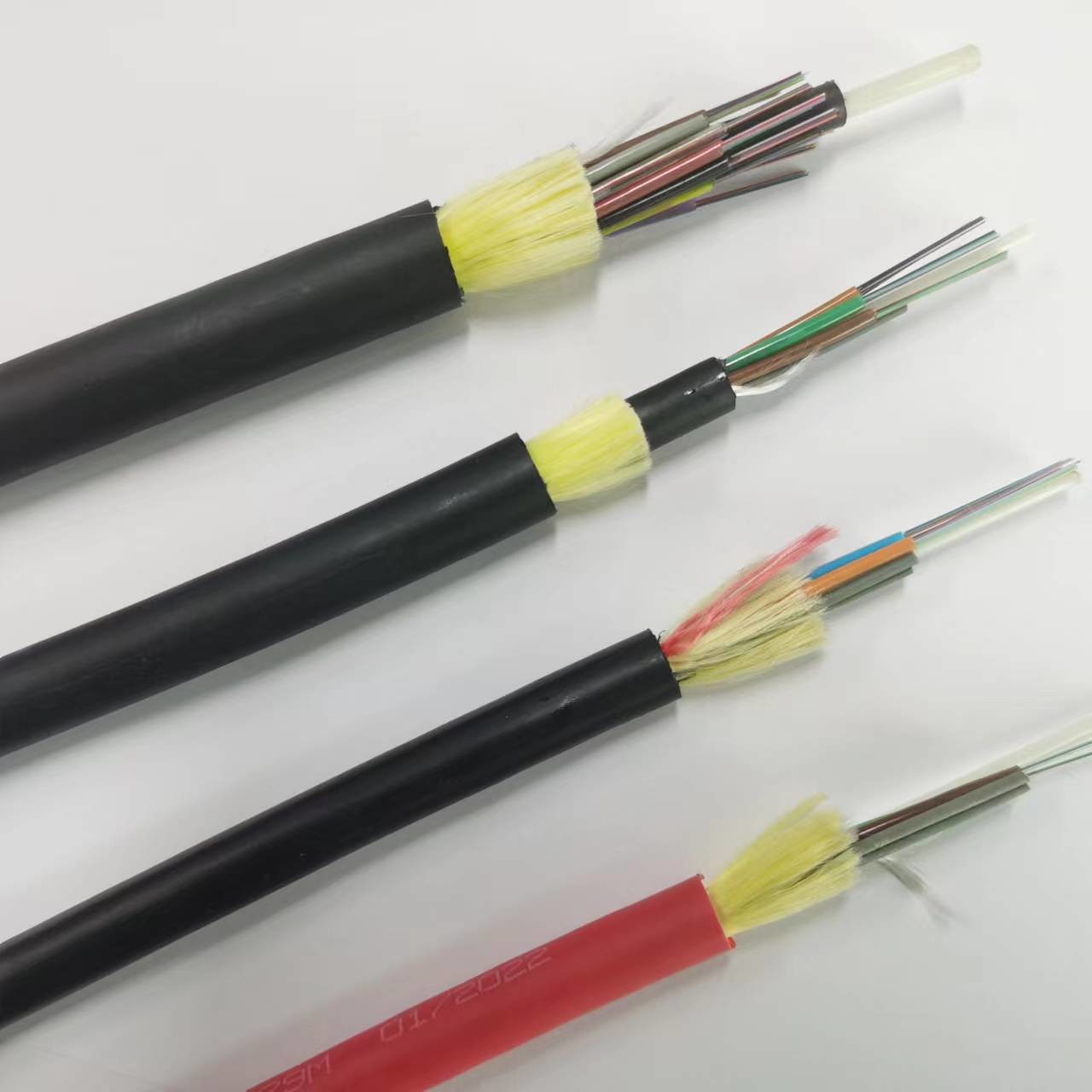

Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable



Application

1. overhead
2. aerial
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 0
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 1
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable
1. All Dielectric Self Supporting Non-metallic Optical Fiber Cable.
2. It can be directly suspended on the power tower.
3. Mainly use for overhead high-voltage transmission system.
Feature
• big quantity for fibers,can be from 2-288,can be set up together with power tower.

• All-dielectric design, applicable to lightning-prone areas

• Aramid yarns are used as load-bearing components,high tensile strength

• Metal free,anti-electromagnetic interference,lightning protection,strong electromagnetic field. can be used in many thunderstorm areas.


Specification
Product Name
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
PE sheath + aramid yarn,FRP strengthen
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead,aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 2
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products

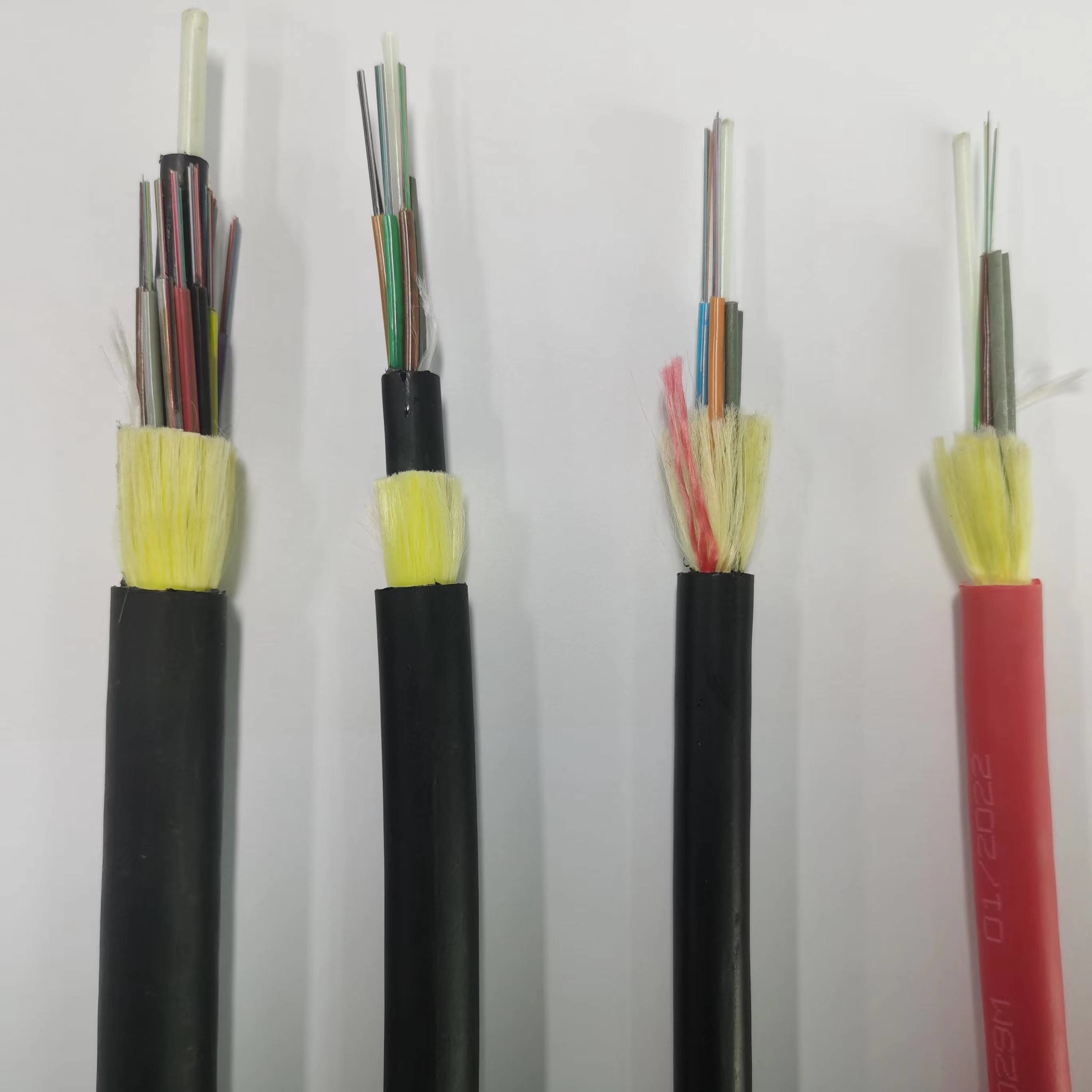

Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 3
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 4
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

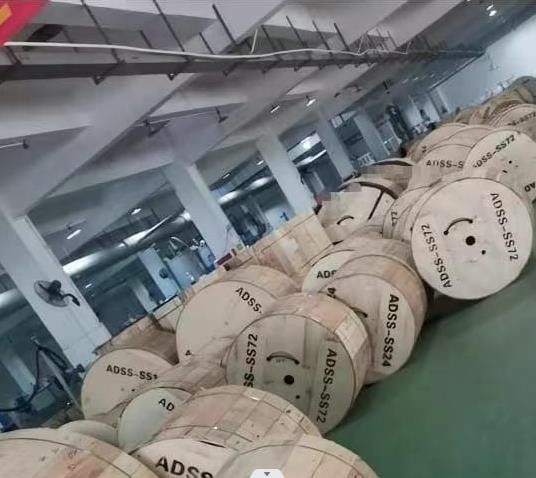

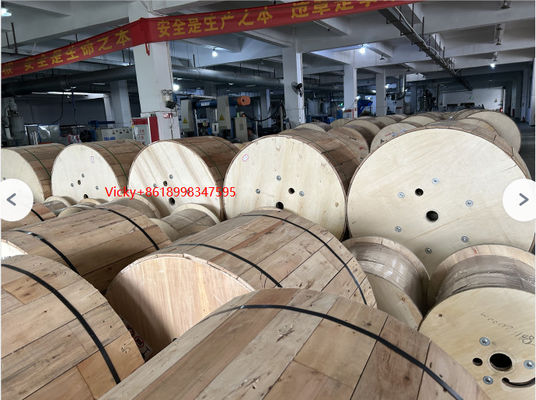

Packing & Delivery
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 5
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 6
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 7
Self support aerial overhead aramid yarn fibra optica cables FRP 6 12 24 48 hilos fiber optik kable 6core adss cable 8
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
