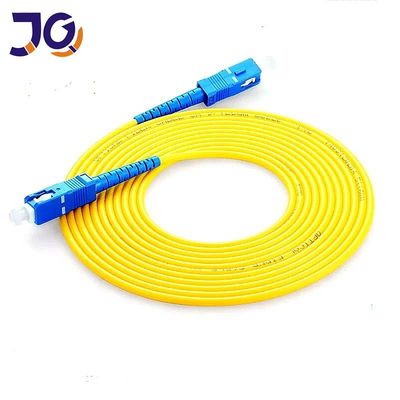

High Quality Customized Patch Cord Optical Fiber LC/FC/SC/ST
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | SC/SC |
|---|---|---|---|
| Fiber Type: | Single Mode/Multi Mode | Type: | Indoor Fiber Optic Cable |
| Number Of Conductors: | 2 | Length: | 1m,3m,5m,10m,15m,20m,30m,50m |
| Color: | Customized | Outer Sheath: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Telecommunications |
| Oem: | Available | ||
| High Light: | FTTH Fiber Optic Patch Cord,SC/SC Fiber Optic Patch,10m Fiber Optic Patch Cord |
||
Product Description
Product Description:

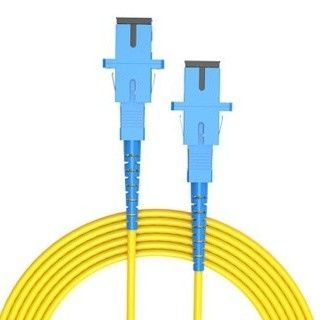

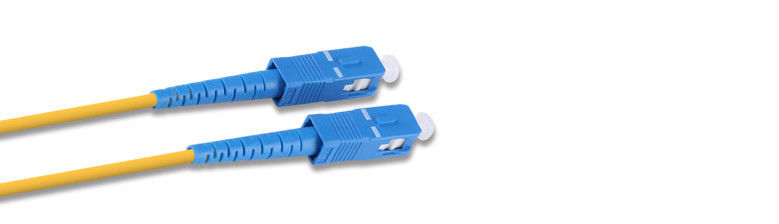

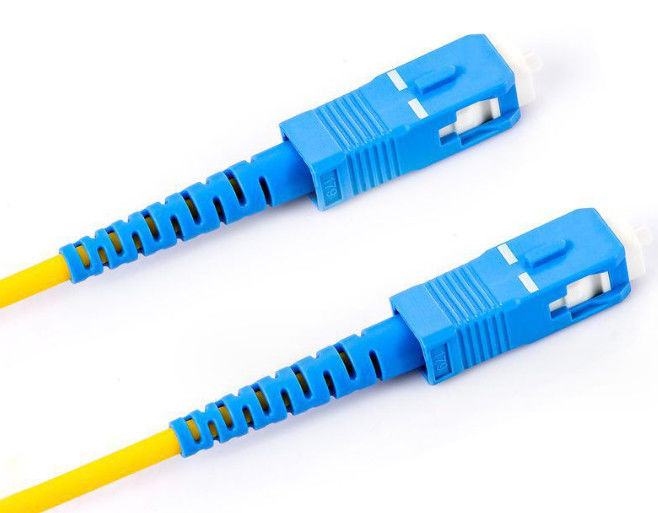

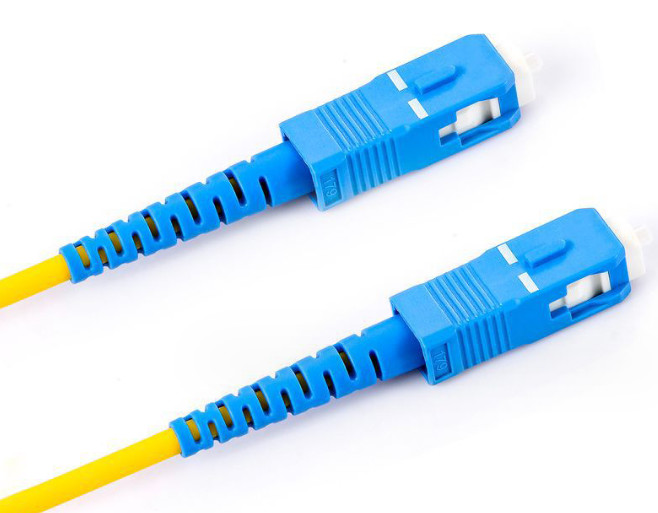

SC-SC Optical fiber jumper
It is used as the termination jumper from the device to the optical fiber wiring link. With a thick protective layer, SC-SC fiber jumper is generally used in the connection between the optical terminal and the terminal box.
1, Three end grinding methods: PC, UPC, APC
2, Number of cores: single core, multi-core

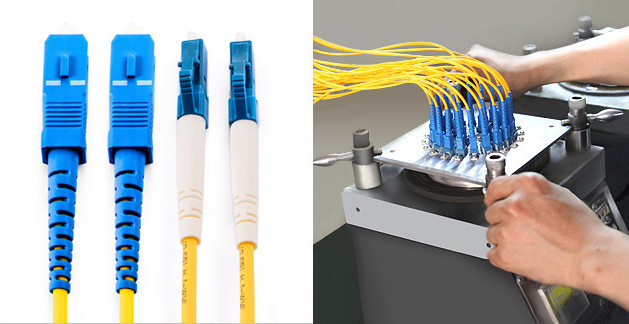

3, Connector: LC (small square), SC (generous), FC (round), ST (bayonet), etc

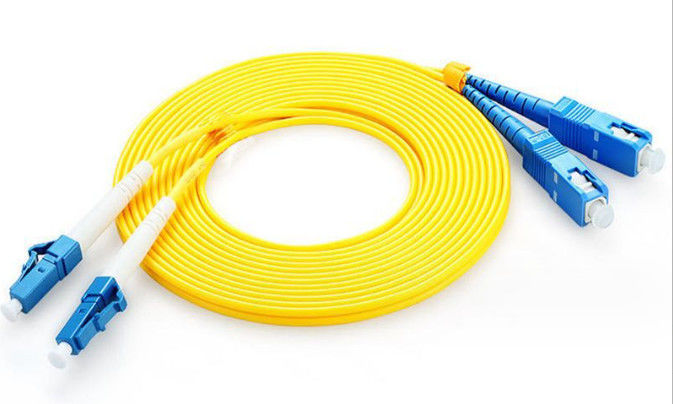

4, Configuration: SC-SC, SC-LC, SC-ST, SC-FC, etc
5, Mechanical durability 500 times
6, The outer sheath material has PVC, LSZH and other materials to choose.
Characteristics:
1, Low insertion loss; 2, Good repeatability;
Specification:
| Parameter | LC,SC,ST,FC | ||
| SM | MM | ||
| UPC | APC | UPC | |
| Operating Wavelength(nm) | 1310/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.20 | ≤0.20 | ≤0.20 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 |
| Repeatability Loss(dB) | ≤0.1 | ||
| Interchangeability Loss(dB) | ≤0.20 | ||
| Repeat Piug-pull Times | ≥1000 | ||
| Tensil Strength(N) | ≥100 | ||
| Durability Loss(dB) | ≤0.20 | ||
| Operating Temperature(℃) | -40℃~ +75℃ | ||
| Storage Temperature(℃) | -40℃~85℃ | ||
